Lathe CATEE OZ Powerful Collet chuck CATEE tool holder CATEE shank tools

Lathe CATEE OZ Powerful tool holder, The function of the toolholder is to ensure the connection accuracy and rigidity when connecting with the spindle of the machining center; to ensure the clamping force and clamping accuracy when connecting with the cutting tool; to ensure the rigidity, balance and precision of the toolholder itself. Taper fit is usually used between spindle and toolholder of machining center. The taper fit is characterized by good centering, easy adjustment of clearance or interference, etc.For mounting shank tools in collets, for precision milling and heavy metal working.high speed and high precision machining.

CATEE OZ Powerful Collet Chuck SpecifiCATEEions

1.CATEE OZ Powerful Collet Chuck Materail: 20CrMnTi

2.CATEE OZ Powerful Collet Chuck Hardness: HRC 56-58
3.CATEE OZ Powerful Collet Chuck Max run out: <0.005mm
4.Taper tolerance:<AT3
5.Carbon depth: 0.8mm±0.2mm
6.Surface Roughness: Ra<0.005mmThe effective length of the handle (Length): 2.76 "
7.The maximum speed (RPM): 24000-30000 rpm.
8.The handle body precision (T.I.R.): 0.005mm
9.Fit spring chuck (Collet Adapter): ER16
10.CATEE OZ Powerful Collet Chuck Clamp range (Range): 1-10mm
11.Spring collet precision (T.I.R.): 0.015 / 0.01 /0.008 mm optional
12.Fit shaft connecting rod (PULL STUD): CATEE40

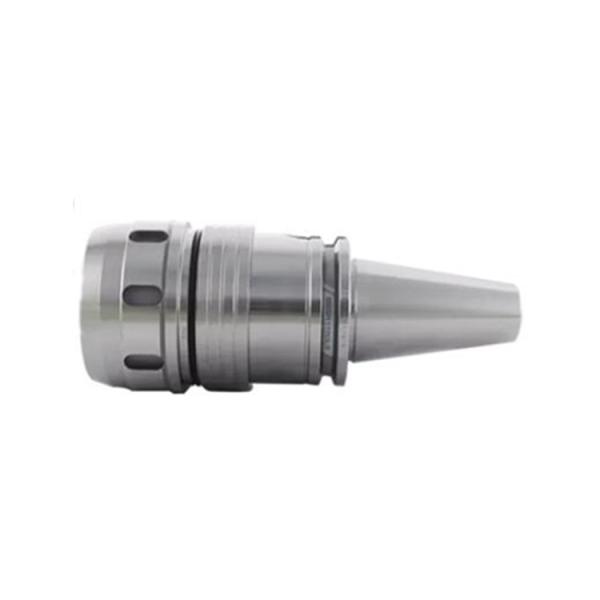

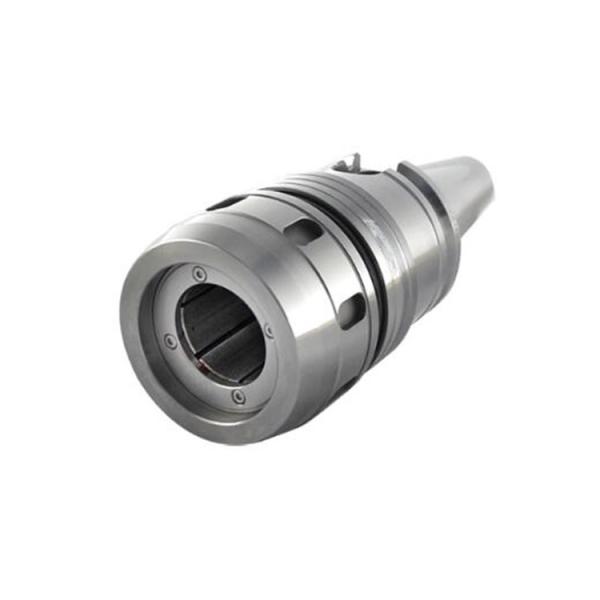

CATEE OZ Powerful Collet Chuck is a type of tool holder used in milling machines. It is designed to securely hold cutting tools in place during machining operations.

The CATEE40 refers to the taper size of the tool holder, which is commonly used in milling machines. The "40" in CATEE40 represents the taper size, which is 40 millimeters per foot. This taper size is widely used in the industry due to its versatility and compatibility with various milling machines.

The OZ in the name refers to the type of collet used in the chuck. OZ collets are a type of spring-loaded collet that provides a strong grip on the cutting tool. They are known for their high clamping force and excellent concentricity, which ensures accuracy and precision during machining.

The Powerful Collet Chuck is specifically designed to provide a strong and secure grip on the cutting tool. It is ideal for heavy-duty milling operations that require high cutting forces. The powerful grip of the collet chuck helps to prevent tool slippage or movement during machining, ensuring consistent and reliable performance.

Overall, the CATEE OZ Powerful Collet Chuck is a reliable and durable tool holder that provides a strong grip on cutting tools, making it suitable for heavy-duty milling operations.
