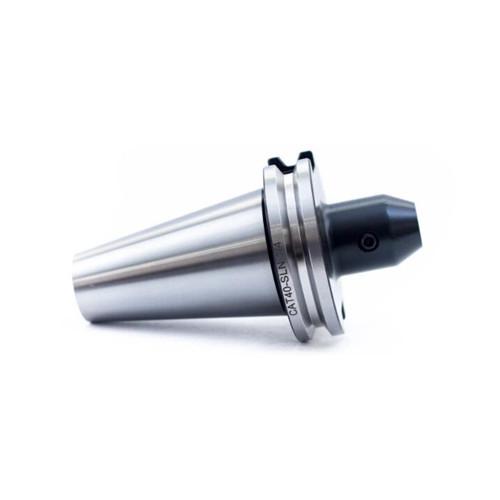

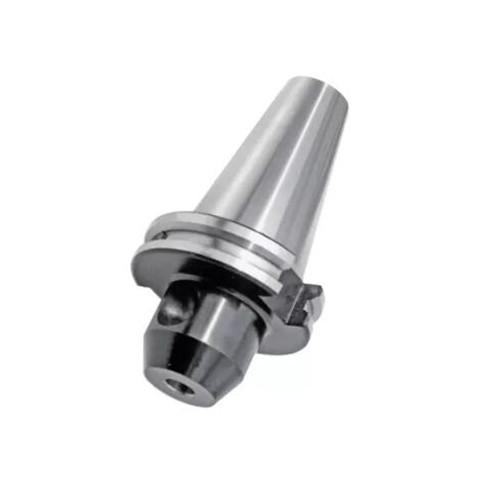

CATEE End Mill Holder for CNC Milling Machine milling tool holder

CATEE Inch Side Lock End Mill Holder ,Due to improve the rotation of bits ,the life of cutting tools increaser than before.New toolholder is easy to change and be used to working staff,apply to the holder of a DIN1835-B with a solid surface of the cutting tool, high speed and high precision machining.Toolholder is commonly used spare parts for milling machine,this is problem to frequently change. Toolholder underside increases, completely covering the lower part of the tool holder, to ensure close contact with the upper and lower surfaces.When the seal between the top and bottom to prevent debris Snap fine milling operation.If toolholder hole come into the material and so on, the rotation of the cutting tool will reduce.

1.The characteristic of CATEE tool holder:
-The hole of Milling chuck slit six slots in order to prevent sliding, and increase yhe clamping force.
-Two-wire devices make when sliding to rolling friction when the needle
-The scrop of cutting tool equiped with collet need to extend the effective clamping length, in order to avoid non-totally gripping, resulting in collet damaged or de-cutter things from happening.

2. Supply different kinds of ISO tool holders, CATEE milling tool holder, CATEE-FMA face mill holder, CATEE-SCA side milling holder, SLA side lock milling tool holder, MTA mose taper holder, CATEE-APU drill chuck, CATEE-OZ milling holder, etc.

1.CATEE End Mill Holder Run out : 0.005mm
2.CATEE End Mill Holder material: allyed steel ,40Cr , 20CrMnTi
3.CATEE End Mill Holder Handness : HRC55-60
4.CATEE End Mill Holder Taper Tolerance : H5
5.Cooling: AD : AD/B can be made by your request.
6.Balance : G6.3/15000rpm
7.CATEE End Mill Holder Usage : for clamping tools with straight shank and inclined flat DIN 1835B

CATEE milling end mill holders are tool holders used in milling machines to hold end mills securely in place. CATEE stands for "Computerized Axial Tomography" and refers to the type of taper used in the holder. CATEE holders have a tapered shank that fits into the spindle of the milling machine, providing a rigid connection between the tool and the machine. The end mill is inserted into the holder and secured with a set screw or a collet, depending on the specific type of holder. This allows for precise and accurate cutting operations in milling appliCATEEions. CATEE milling end mill holders are available in various sizes and configurations to accommodate different end mill diameters and lengths.
