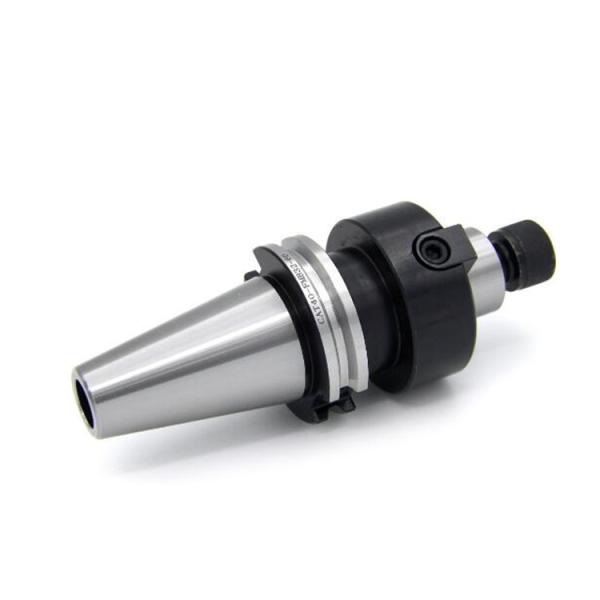

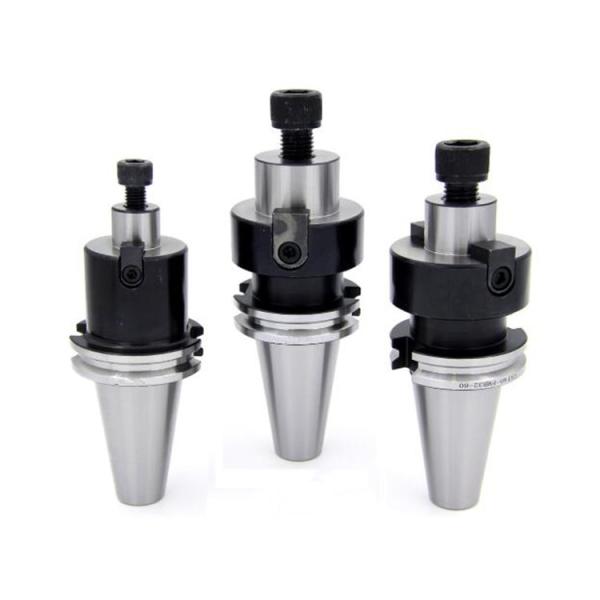

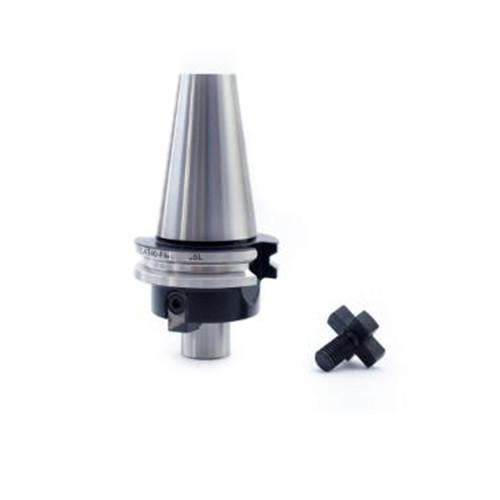

Toolholder CATEE standard FMB face mill arbor CATEE tool holder lathe machine tool holder

Brief introduction

Lathe Machine Tool Holder CATEE Face Milling Cutter, used in the clamping of the cutter with the radial drive groove, such as the face milling cutter, the vertical disc cutter, the set type end mill, high speed and high precision machining .

SpecifiCATEEions

1. material:20CrMnTi

2. hardness:56-58

3. precision taper less than AT3

4. carbon depth less than0.8mm
5. pre-balance standard:G6.3 18000rpm,precision balance G2.520000rpm,25000rpm,30000rpm
6. Surface"environment protection",special coating surface treatment,improve the hardness and endurance of the surface,cleaness better,accuracy stable,surface

The cutter bar check the accuracy of the matters needing attention:
1, the accuracy of the accuracy and reliability of the scale, the unit of measurement of at least 0.002mm.
2, the main test bar according to international standard
3, the accuracy of the tungsten steel mold qualified. Control shaft diameter tolerance within H6.
4, the cutter bar in the front, thoroughly clean all parts, such as the collet nut etc.. And at the same time, should pay attention to the cleanliness of the machine spindle.
5, the cutter bar clamping tungsten steel mold bar, the need to comply with all kinds of tool rod device description of. In order to avoid clamping precision caused by improper, distortion.
6, if the measurement. 180 degree deviation, the reason may be the bolt head or mechanical spindle taper precision etc..

'

CATEE standard FMB face mill arbor is a toolholder used to hold face mills with a CATEE (CATEEer-pillar) standard taper. The FMB (Face Milling Arbor) designation indiCATEEes that it is specifically designed for face milling operations.

The CATEE standard taper is a popular toolholder system used in milling machines. It features a flange and a taper that allows for secure and accurate tool positioning. The CATEE standard taper is known for its rigidity and ability to handle heavy cutting loads.

The FMB face mill arbor is designed to hold face mills, which are cutting tools used for milling flat surfaces. The arbor typically has a threaded end that allows for the attachment of various sizes of face mills. It also has a flange that provides stability and support during machining operations.

Overall, the CATEE standard FMB face mill arbor is a reliable toolholder that enables efficient and precise face milling operations in milling machines.

CATEE lathe chuck face mill arbor is a tool used in machining operations to hold a face mill cutter in a lathe chuck. It is designed with a CATEE (CATEEer-pillar) taper, which is a popular type of tool holder taper used in the machining industry.

Using a CATEE lathe chuck face mill arbor allows for the efficient milling of large flat surfaces on a lathe machine. The face mill cutter is mounted on the arbor and spins at high speeds, while the lathe chuck provides the necessary clamping force to hold the workpiece in place.
