30000N 24V Solar Tracking Linear Actuator IP66 Waterproof 100-800mm Stroke
30000N 24V Solar Tracking Linear Actuator IP66 Waterproof 100-800mm Stroke
30000N 24V Solar Tracking Linear Actuator IP66 Waterproof 100-800mm Stroke
30000N 24V Solar Tracking Linear Actuator IP66 Waterproof 100-800mm Stroke
Specifications
Max. load :
15000N/20000N
Rated Voltage :
24vdc
Position feedback :
Hall
Protect Feature :
Waterproof
Torque :
Requests
Stroke :
100-800mm
Dutycycle :
10%
Continuous Current(A) :
6.5A
Brand Name :
TOMUU
Place of Origin :
Guangdong, China
MOQ :
1 piece
Model Number :
U10G
Certification :
ce
Warranty :
3 months ~ 1 year
No load speed :
1.4mm/s
Speed(RPM) :
1800 RPM
Construction :
Permanent Magnet
Efficiency :
IE 1
Full load speed :
1.2mm/s
Static load :
35,000N
Protection Class :
IP65/IP66
Price :
$134-165 / piece
Commutation :
Brush
Type :
Gear Motor
Usage :
solor tracker
Description

Description:

Adopting high-quality ball screw drive technology, this 30,000N solar linear actuator ensures smooth movement, high transmission efficiency, and low mechanical wear. Operating at 24V DC, it provides reliable linear motion for solar trackers with excellent self-locking performance. It is widely used in solar tracking systems to extend service life and reduce maintenance costs.

30000N 24V Solar Tracking Linear Actuator IP66 Waterproof 100-800mm Stroke


Parameter:

Parameter
Specification
Voltage
12V DC / 24V DC
Max Load
30000N
Speed
1.4-1.5mm/s
Duty Cycle
10%
Protection Class
IP65/IP66/IP67
Noise Level
≤60dB
Stroke
100-800mm
Material
Aluminium Alloy

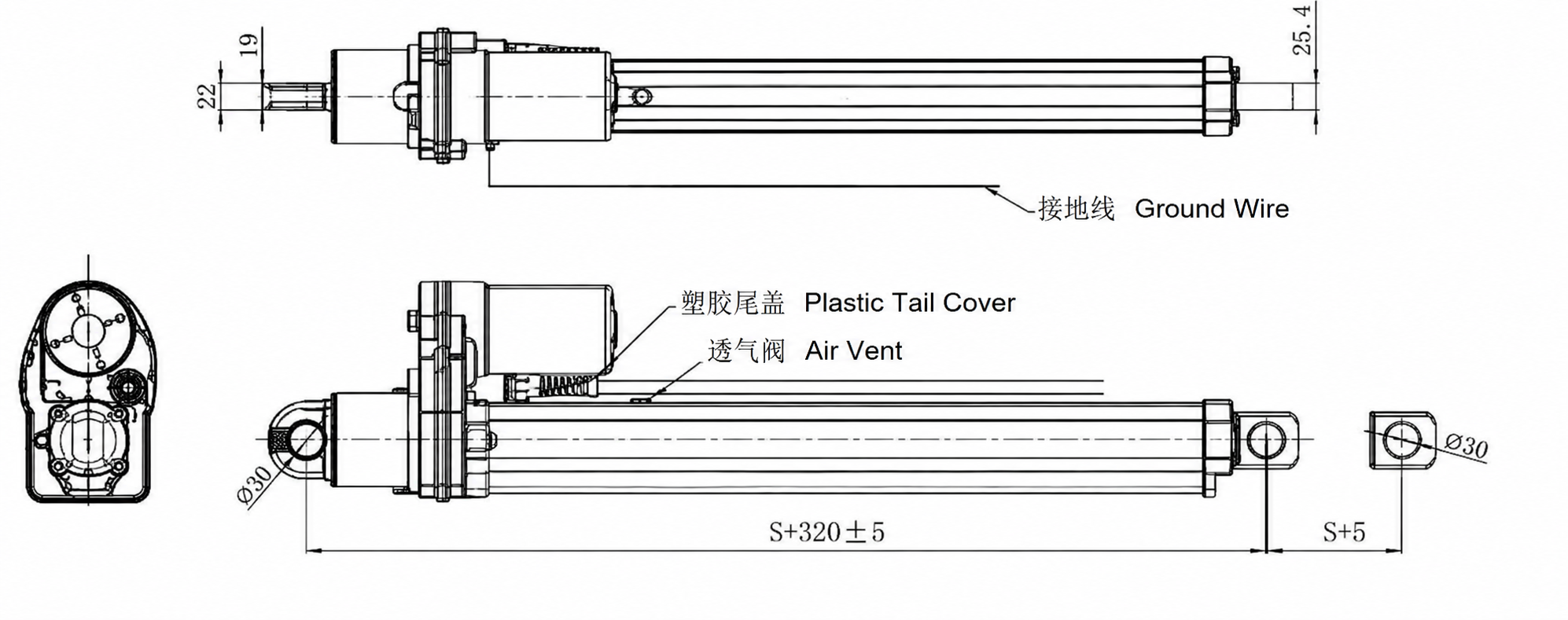

Dimension:

30000N 24V Solar Tracking Linear Actuator IP66 Waterproof 100-800mm Stroke

Advantage:

Ball screw drive for high efficiency and low friction; smooth and quiet operation; excellent self-locking to prevent panel sliding; high durability and long service life; low maintenance requirement; stable performance under continuous working conditions.
