Low Power Industrial Linear Actuator TOMUU U20K 20000N Fisheye PV Track
Low Power Industrial Linear Actuator TOMUU U20K 20000N Fisheye PV Track
Low Power Industrial Linear Actuator TOMUU U20K 20000N Fisheye PV Track
Low Power Industrial Linear Actuator TOMUU U20K 20000N Fisheye PV Track
Low Power Industrial Linear Actuator TOMUU U20K 20000N Fisheye PV Track
Low Power Industrial Linear Actuator TOMUU U20K 20000N Fisheye PV Track
Specifications
Code :
A
IP Class :
IP65/IP66/IP67
Model Number :
U20K
MOQ :
Contact Supplier
Rated Load (N) Pull :
20,000
Duty Cycle :
10%
Certification :
CE
Place of Origin :
Guangdong, China
Ratio :
110:1
Rated Speed(mm/s) Full Load (24V) :
1.6mm/s
Brand Name :
TOMUU
Rated Current(A) :
7.0
Description
TOMUU U20K Low Power Industrial Linear Actuator
The TOMUU U20K low-consumption industrial linear actuator features a standard fisheye front-end device designed for energy-saving solar tracking applications. This 24V DC electric actuator delivers full 20000N bidirectional load capacity during continuous daily tracking cycles, with IP66 environmental sealing and consistent low linear speed. Custom stroke length, tinned wire connectors, and optional hall sensors are available for building low-power intelligent photovoltaic tracking control systems.
Low Power Industrial Linear Actuator TOMUU U20K 20000N Fisheye PV Track
Technical Specifications
ParameterSpecification
Voltage12V DC / 24V DC
Max Load20000N
Speed1.6mm/s±5%
Duty Cycle10%
Protection ClassIP65/IP66/IP67
Noise Level≤60dB
Stroke100-800mm
MaterialAluminium Alloy
Product Dimensions
Low Power Industrial Linear Actuator TOMUU U20K 20000N Fisheye PV Track
Key Advantages
  • Optimized internal motor structure limits full-load rated current to only 5A, reducing power supply investment for remote off-grid and rural distributed solar farms

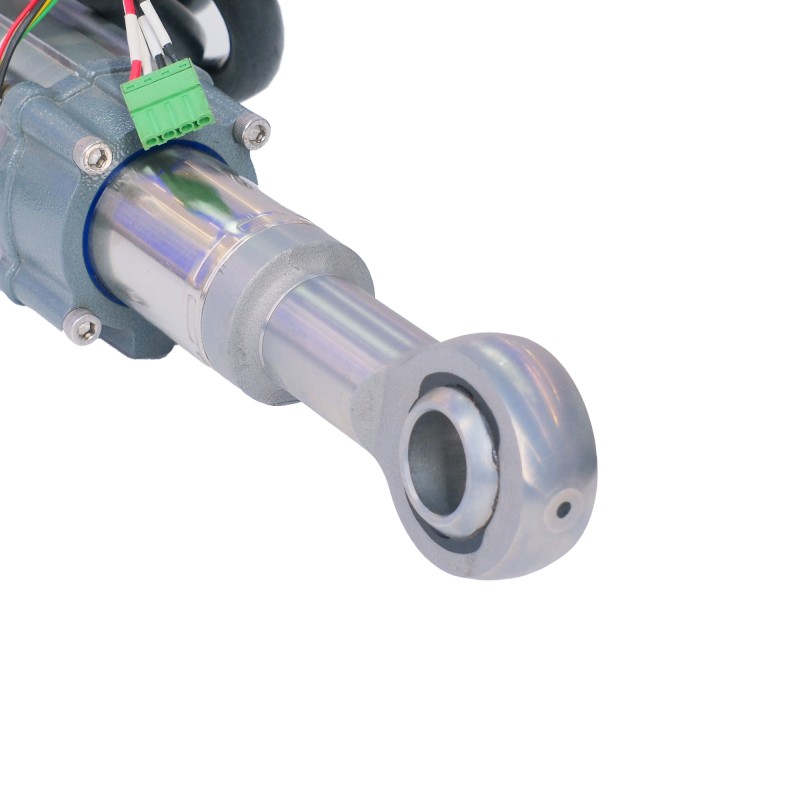

  • Built-in fisheye front joint absorbs frame deformation and wind shock, protecting internal gears and screws from fatigue failure
  • Consistent 20kN heavy thrust ensures uniform PV panel adjustment force throughout the year
  • IP66 wide-temperature sealed housing provides stable outdoor performance
  • Flexible custom wiring and stroke options compatible with all mainstream solar tracker types
