Solar Tracker Linear Actuator for 25,000N Static Load Requirements

IP66 Protection with Customizable Stroke for Solar Tracking Projects

Solar tracker actuator selection involves both the load required during movement and the load condition when the tracker is holding position.

This page focuses on solar tracking applications with a 25,000N static load requirement. The final actuator configuration can be evaluated according to the operating load, static load, stroke, installation dimensions and actual tracker structure.

The 25,000N value represents the static load requirement for this application entry rather than the maximum capability of the actuator platform.

25,000N Static Load for Solar Tracking Applications

This configuration is intended for solar tracking projects with a 25,000N static load requirement. Static load refers to the holding condition when the actuator is stationary, while the load required during extension and retraction should be evaluated separately.

In a solar tracker, the actuator spends part of its operating cycle holding the structure at a selected position. The actual load condition depends on the tracker geometry, actuator mounting position and project requirements.

The 25,000N static load on this page therefore represents a project requirement rather than the maximum capability of the actuator platform.

Project Configuration

Final actuator specifications should be confirmed according to the complete project requirements rather than the static load value alone.

Stroke and Installation Should Be Considered Together

The required actuator stroke depends on the movement range of the tracker and the position of the actuator mounting points. Different tracker structures can therefore require different stroke and installation dimensions even when their static load requirements are similar.

Matching the Actuator to the Solar Tracker

A 25,000N static load requirement does not by itself determine the final actuator. The operating load can change according to the tracker geometry, actuator angle, mounting position and movement range.

TOMUU evaluates these project conditions together with the required stroke and installation dimensions before confirming the actuator configuration. This allows lower-load solar tracking requirements to be matched without treating 25,000N as a fixed product capability limit.

Production for Solar Actuator Projects

Once the project configuration is confirmed, consistent manufacturing and process control help maintain the required actuator configuration across project quantities.

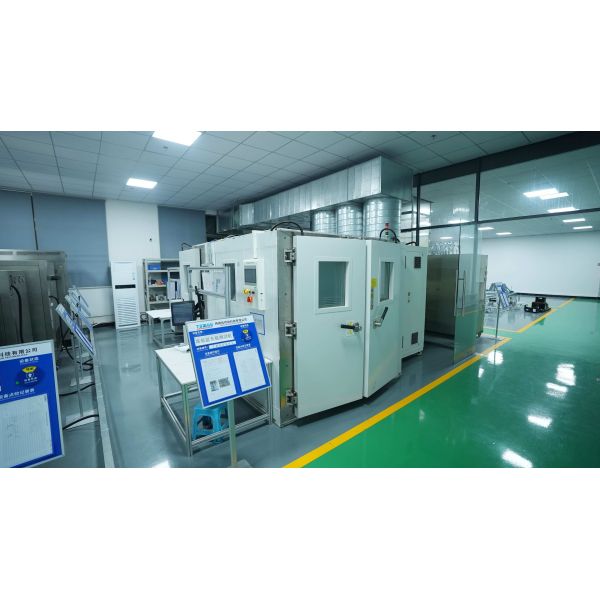

R&D & Testing

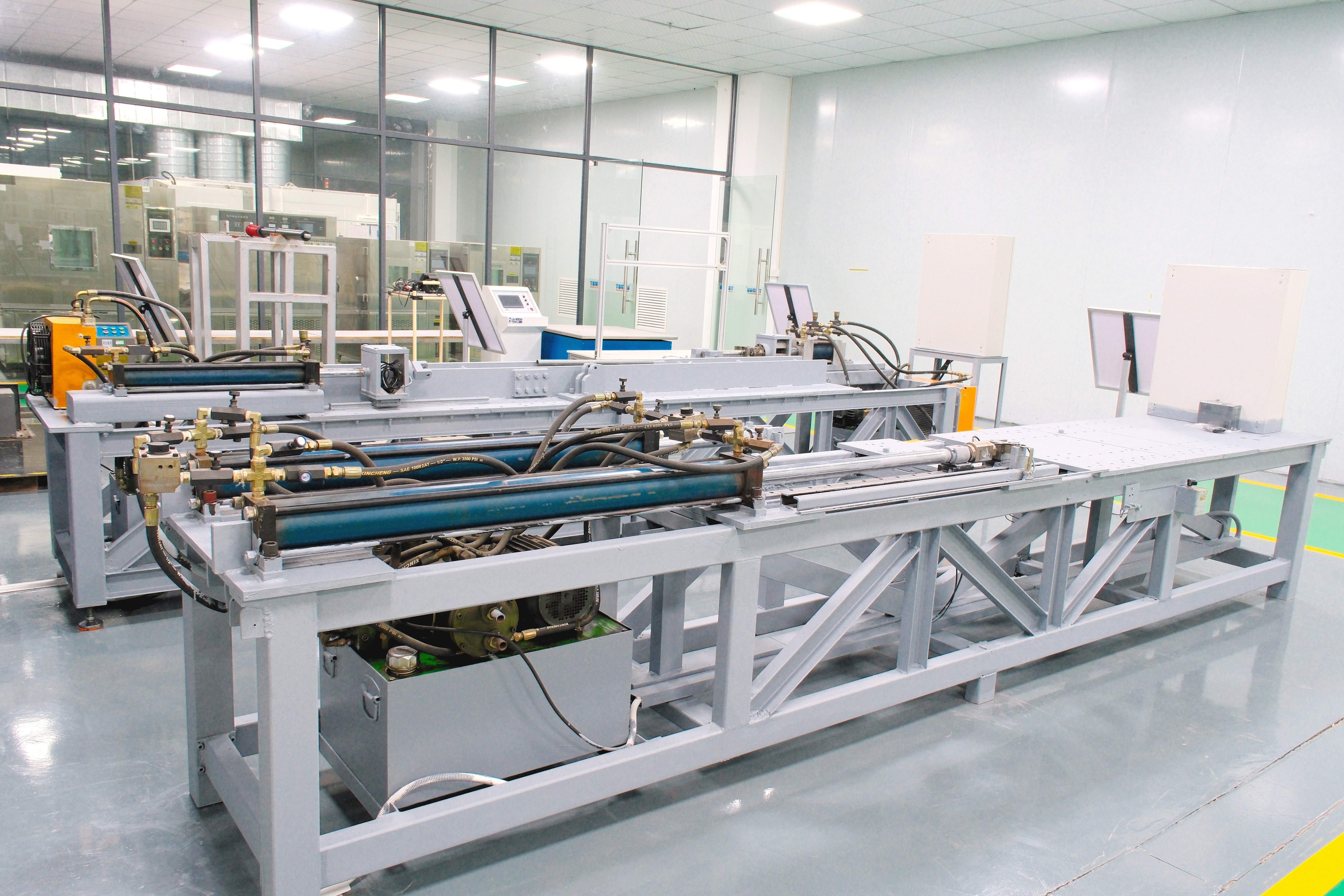

TOMUU evaluates actuator performance through testing related to load, protection, durability and movement performance for solar tracking project applications.

Information Needed for Actuator Selection

For a solar tracker project with a 25,000N static load requirement, the following information helps us evaluate the appropriate configuration.

Not sure which information is needed? Read our Linear Actuator Selection Guide before sending your project information.

Related Engineering Resources

Need an Actuator for a 25,000N Static Load Requirement?

Send TOMUU your required operating load, static load, stroke, installation dimensions, tracker structure, voltage, feedback requirements and project quantity.

We can evaluate the actuator configuration according to the actual solar tracking application rather than selecting only by a single load value.
