U20G Heavy Load Linear Actuator for Solar Tracker Systems
U20G Heavy Load Linear Actuator for Solar Tracker Systems
U20G Heavy Load Linear Actuator for Solar Tracker Systems
U20G Heavy Load Linear Actuator for Solar Tracker Systems
U20G Heavy Load Linear Actuator for Solar Tracker Systems
U20G Heavy Load Linear Actuator for Solar Tracker Systems
U20G Heavy Load Linear Actuator for Solar Tracker Systems
U20G Heavy Load Linear Actuator for Solar Tracker Systems
U20G Heavy Load Linear Actuator for Solar Tracker Systems
U20G Heavy Load Linear Actuator for Solar Tracker Systems
U20G Heavy Load Linear Actuator for Solar Tracker Systems
U20G Heavy Load Linear Actuator for Solar Tracker Systems
Specifications
Model Number :
U20G
Brand Name :
TOMUU
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$190-286
Payment Terms :
L/C,T/T
Supply Ability :
1000pcs/day
Delivery Time :
20-35days
Packaging Details :
Wooden Crate Packaging
Model :
U20G
Rated Voltage :
24V DC
Rated Load((Push & Pull) :
43,000N
Max. Static Load :
150KN
Speed :
0..6-1.22mm/s @ no load
Stroke :
Customized
Position feedback :
Hall Sensor
Protection Grade :
IP65/IP66/IP68
Dutycycle :
10%
Operating Temperature :
-40°C to +65°C
Limit Switch :
Built-in
Type :
Gear Motor
Commutation :
Brush
Continuous Current(A) :
5A-9A
Mounting Type :
Front and Rear Pin Hole Mounting
Protect Feature :
Waterproof
Torque :
Requests
Application :
Solar Tracking System
Description

Description:


This actuator is mainly used for solar tracker systems working in outdoor environments for long periods of time.

Compared with normal industrial applications, solar trackers usually face stronger wind loads, temperature changes, dust, rain, and continuous daily movement cycles.

In these conditions, long-term stability becomes more important than just rated load.


U20G Heavy Load Linear Actuator for Solar Tracker Systems


Parameter:


Code

Voltage
Rated Load(N)
Push
Rated Load(N)
Pull
Rated Speed(mm/s)
Rated Curren(A)
A
24V DC
31,000
31,000
1.22
7
B
24V DC
42,000
42,000
1.0
8
C
24V DC
43,000
43,000
1.0
9
D
 24V DC
24,000
24,000
0.6
5

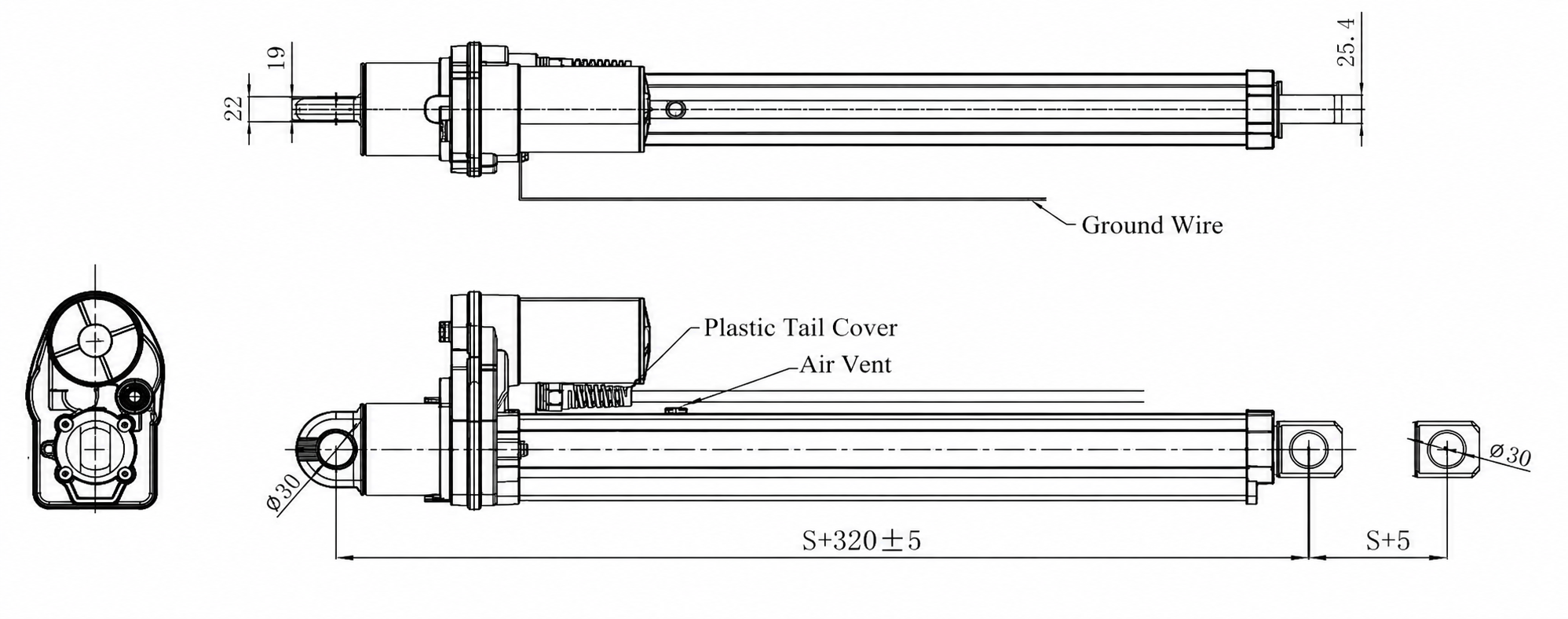

Dimension:

U20G Heavy Load Linear Actuator for Solar Tracker Systems

Application Considerations

  • Designed for high static load solar tracker structures
  • Used in outdoor applications with wind load exposure
  • Long stroke installation may require additional overlap distance
  • Common in utility-scale tracker projects

Key Features


Heavy Load Performance

Built for heavy-load linear motion applications.

Suitable for solar tracking systems, outdoor equipment, and heavy-duty industrial machinery.


Protection Options

IP65 / IP66 / IP68 protection grades available based on application requirements.

Standard version: IP66.


Patented Protection Design

Features patented roof-style waterproof design and anti-vibration structural protection for improved outdoor operational reliability.


Customizable Stroke & Mounting

Stroke length, mounting dimensions, and electrical configurations can be customized according to project requirements.

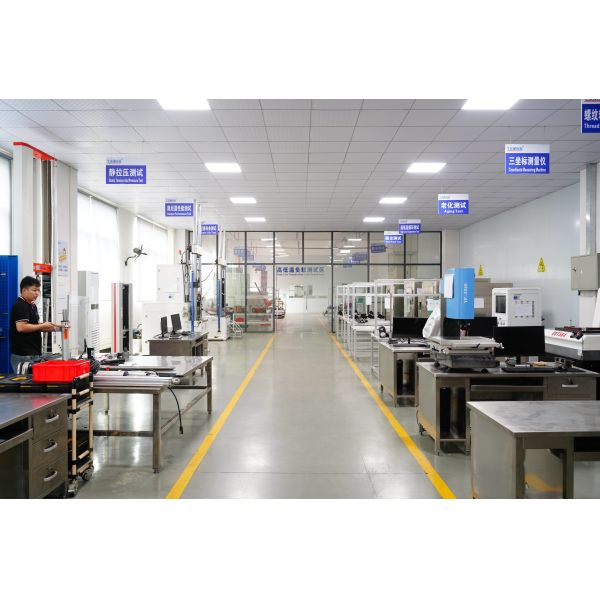

In-House Testing Support

Load testing and actuator performance verification support available for project applications.

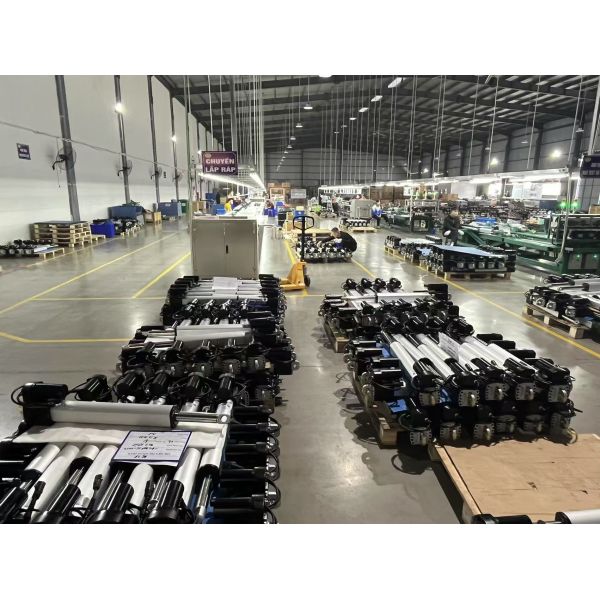

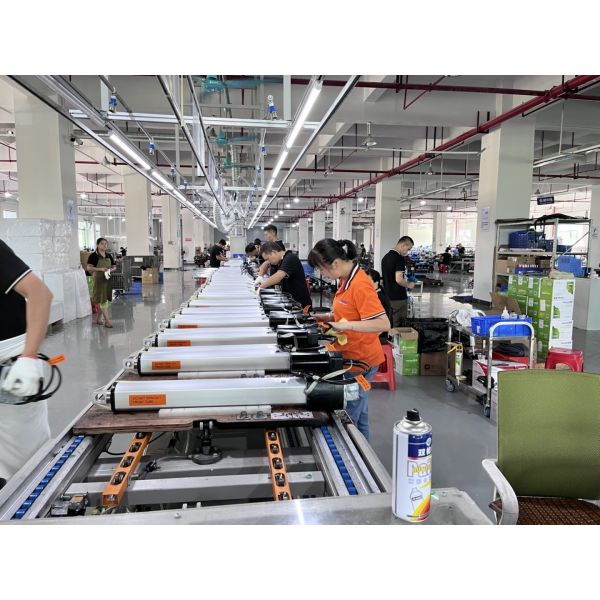

Manufacturing Capability


U20G Heavy Load Linear Actuator for Solar Tracker Systems

U20G Heavy Load Linear Actuator for Solar Tracker Systems

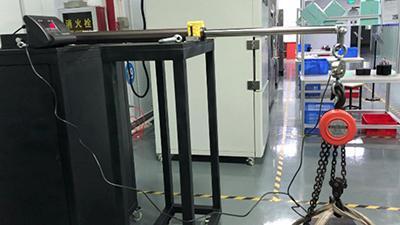

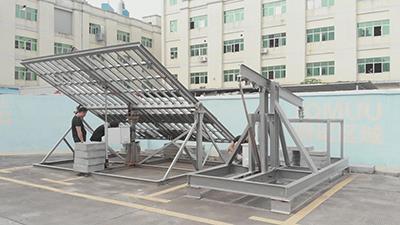

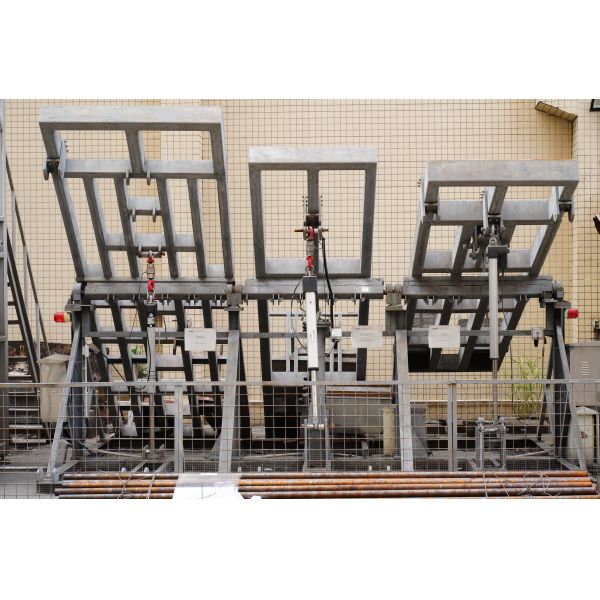

Testing for Solar Tracker Applications


U20G Heavy Load Linear Actuator for Solar Tracker SystemsU20G Heavy Load Linear Actuator for Solar Tracker Systems


U20G Heavy Load Linear Actuator for Solar Tracker Systems


U20G Heavy Load Linear Actuator for Solar Tracker Systems

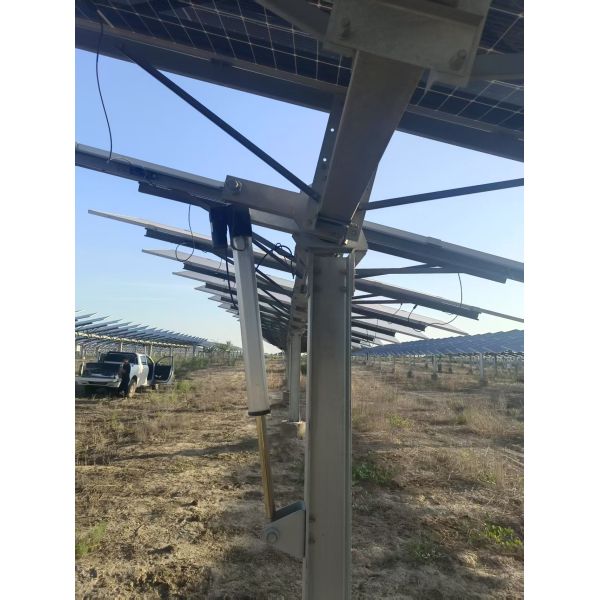

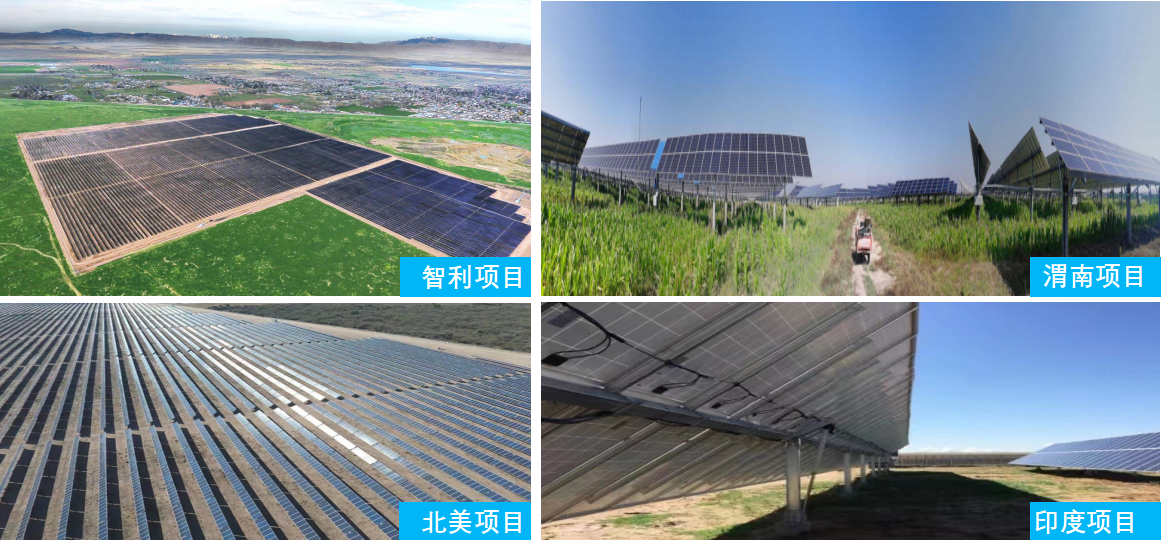

Project Application

U20G Heavy Load Linear Actuator for Solar Tracker SystemsU20G Heavy Load Linear Actuator for Solar Tracker Systems
