Specifications
Delivery Time :
20-35days
Application :
Solar Tracking System
Payment Terms :
L/C,T/T
Rated Voltage :
24V DC
Operating Temperature :
-40°C to +65°C
Rated Speed :
0.6–1.22 mm/s
Max. Dynamic Load :
Up to 43,000N
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Brand Name :
TOMUU
Max. Static Load :
Up to 150,000N
Position Feedback :
Hall Sensor
Mounting Type :
Front and Rear Pin Hole Mounting
Supply Ability :
1000pcs/day
Model Number :
U20G
Protection Class :
IP66 / IP68 Options
Duty Cycle :
10%
Packaging Details :
Export standard packaging
Model :
U20G
Stroke :
Customizable
Description

U20G Heavy Load Linear Actuator for Solar Tracker Systems

Up to 43,000N Dynamic Load for Heavy-Duty Solar Tracking

Designed for heavy-duty solar tracking systems, the U20G linear actuator provides reliable push and pull movement for large tracker structures and long-term outdoor operation.

With a maximum dynamic load of up to 43,000N and static load of up to 150,000N, the U20G is suitable for solar tracker applications requiring higher load capacity and structural holding strength.

Different load and stroke configurations are available according to tracker structure, installation dimensions and project requirements.

U20G Heavy Load Linear Actuator for Solar Tracker Systems | TOMUU
U20G Heavy Load Linear Actuator for Solar Tracker Systems | TOMUU
U20G Heavy Load Linear Actuator for Solar Tracker Systems | TOMUU

Technical Specifications

Parameter Specification
Application Solar Tracking System
Max. Dynamic Load Up to 43,000N
Max. Static Load Up to 150,000N
Rated Voltage 24V DC
Position Feedback Hall Sensor
Protection Class IP66 / IP68 Options
Operating Temperature -40°C to +65°C
Stroke Customizable
Installation Dimensions Customized according to stroke and tracker structure

Specifications can be configured according to load, stroke, installation dimensions and project requirements.

Load & Speed Configurations

Code Voltage Rated Load (N) - Push Rated Load (N) - Pull Rated Speed (mm/s) Rated Current (A)
A 24V DC 31,000 31,000 1.22 7
B 24V DC 42,000 42,000 1.0 8
C 24V DC 43,000 43,000 1.0 9
D 24V DC 24,000 24,000 0.6 5

Choosing the Right U20G Load Configuration

The U20G is available in four load configurations, from 24,000N to 43,000N. The appropriate configuration should be selected according to the tracker structure, required load, stroke, installation geometry and project conditions.

Variant A — 31,000N

Rated push/pull load of 31,000N with a rated speed of 1.22 mm/s.

Variant B — 42,000N

Rated push/pull load of 42,000N with a rated speed of 1.0 mm/s for applications requiring higher load capacity.

Variant C — 43,000N

The highest-load U20G configuration, providing rated push/pull load of 43,000N at 1.0 mm/s.

Variant D — 24,000N

Rated push/pull load of 24,000N with a rated speed of 0.6 mm/s for tracker structures with lower load requirements.

Dimensions

U20G Heavy Load Linear Actuator for Solar Tracker Systems | TOMUU

Designed for Heavy-Duty Solar Tracking

Large solar tracker structures place higher demands on actuator load capacity, structural holding strength and long-term outdoor reliability. The U20G is designed for these heavy-duty solar tracking applications, with dynamic load capacity of up to 43,000N and static load capacity of up to 150,000N.

With Hall sensor feedback and IP66/IP68 protection options, the U20G supports controlled and repeatable movement under changing outdoor conditions. Different load, stroke and installation configurations are available to match different tracker structures and project requirements.

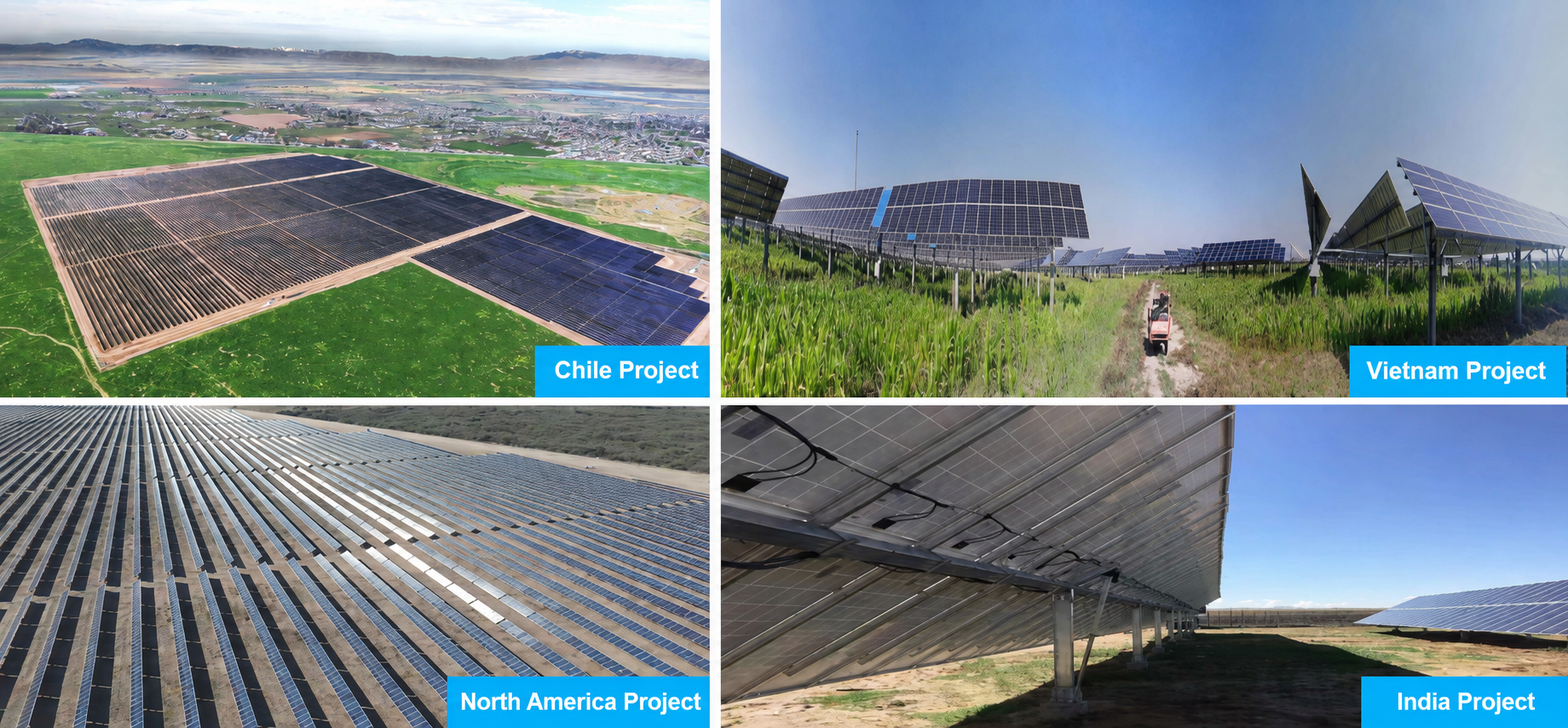

Project Applications

TOMUU heavy-duty linear actuators are used in solar tracking projects for reliable movement and positioning of tracker structures under long-term outdoor operation.

U20G Heavy Load Linear Actuator for Solar Tracker Systems | TOMUU
U20G Heavy Load Linear Actuator for Solar Tracker Systems | TOMUU

Why TOMUU for Solar Projects?

U20G Heavy Load Linear Actuator for Solar Tracker Systems | TOMUU
1,000 pcs/day
Solar Actuator Line Capacity
U20G Heavy Load Linear Actuator for Solar Tracker Systems | TOMUU
U20G Heavy Load Linear Actuator for Solar Tracker Systems | TOMUU
U20G Heavy Load Linear Actuator for Solar Tracker Systems | TOMUU
R&D & Testing
Load · IP · Durability · Performance
U20G Heavy Load Linear Actuator for Solar Tracker Systems | TOMUU
U20G Heavy Load Linear Actuator for Solar Tracker Systems | TOMUU
U20G Heavy Load Linear Actuator for Solar Tracker Systems | TOMUU
U20G Heavy Load Linear Actuator for Solar Tracker Systems | TOMUU
U20G Heavy Load Linear Actuator for Solar Tracker Systems | TOMUU

Find the Right Solar Tracker Linear Actuator

To recommend the right actuator for your solar tracking system, please provide the required load, stroke, installation dimensions, voltage, feedback requirements and project quantity.

Not sure what information is needed? Read our Linear Actuator Selection Guide before sending your inquiry.

Send Us Your Requirements

Related Resources

Supporting Utility-Scale Solar Tracking Projects in Saudi Arabia

See how TOMUU supported a large-scale solar tracking project with actuator production, supply and batch delivery.

View Project Case →

Why High Static Load Matters for Solar Tracker Actuators

Learn why static load capacity is important for solar tracking systems under wind pressure and other structural loads.

Read More →

Solar Tracker Linear Actuator Solutions

Explore TOMUU linear actuator solutions for different solar tracker structures, load requirements and project applications.

Explore Solar Solutions →
