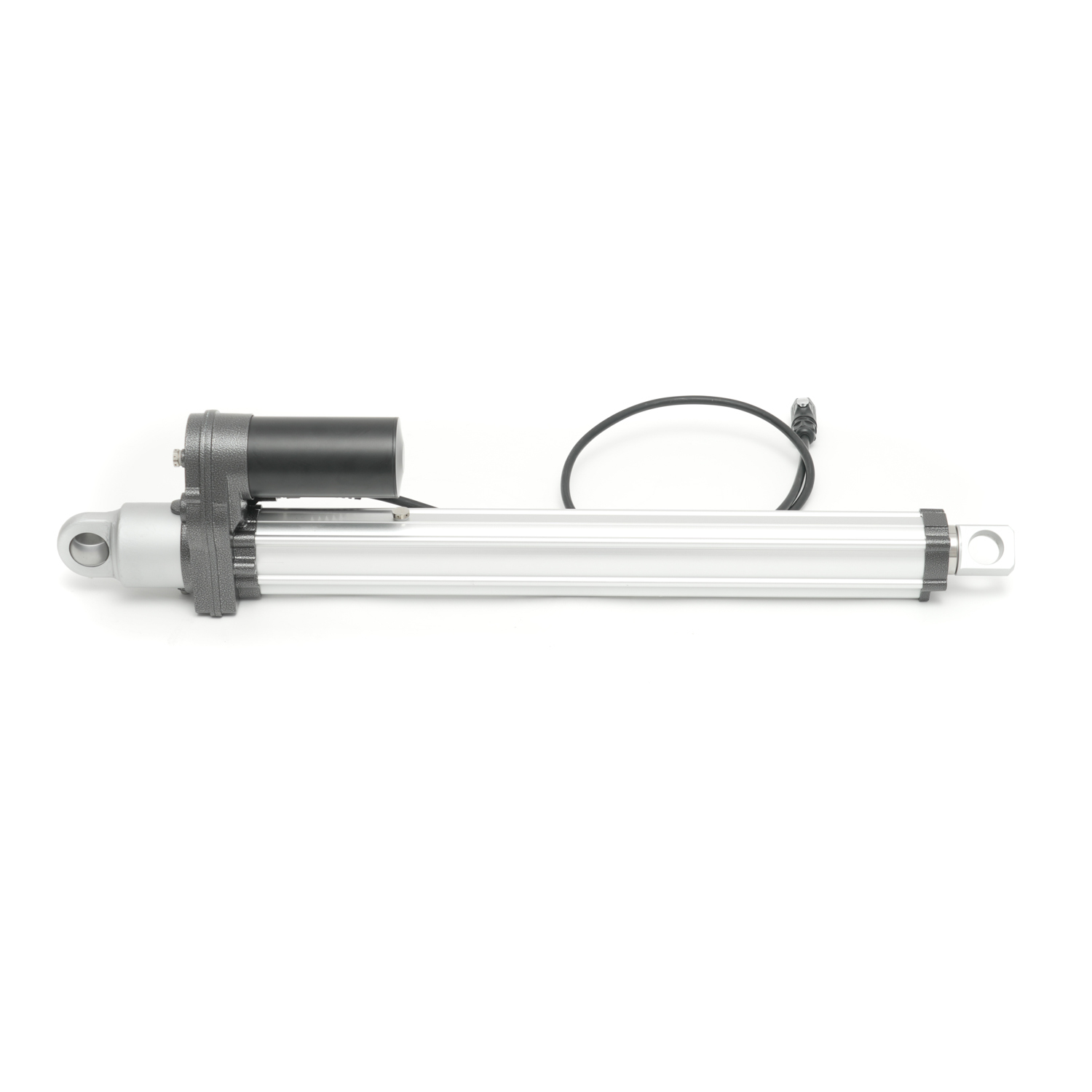

20000N 800mm Linear Actuator 12V 24V For Commercial Solar Tracking Equipment
20000N 800mm Linear Actuator 12V 24V For Commercial Solar Tracking Equipment
20000N 800mm Linear Actuator 12V 24V For Commercial Solar Tracking Equipment
20000N 800mm Linear Actuator 12V 24V For Commercial Solar Tracking Equipment
20000N 800mm Linear Actuator 12V 24V For Commercial Solar Tracking Equipment
20000N 800mm Linear Actuator 12V 24V For Commercial Solar Tracking Equipment
Specifications
Model Number :
U10-2G
Brand Name :
TOMUU
Place of Origin :
Guangdong, China
MOQ :
1 piece
Price :
$200-220 / piece
Continuous Current(A) :
8A
Efficiency :
IE 1
Speed(RPM) :
1800 RPM
Commutation :
Brush
Construction :
Permanent Magnet
Protect Feature :
Waterproof
Torque :
Requests
Type :
Gear Motor
Usage :
solor tracker
Warranty :
3Years
Max. load :
20,000N
Static load :
35,000N
Stroke :
100~1000mm
Speed :
2mm/s @ no load
Waterproof and dustproof :
IP65
Dutycycle :
10%
Position feedback :
Hall
Keywords :
20000N 800mm Linear Actuator for Solar Tracker
Rated Voltage :
24V
Color :
Black
Description

Description:

This 12/24V linear actuator is designed for commercial solar tracking equipment, featuring a 20000N high load capacity and 800mm stroke. Powered by a durable gear motor, it delivers stable and strong thrust for large solar panel systems, ensuring reliable long-term outdoor performance at a cost-effective price.

20000N 800mm Linear Actuator 12V 24V For Commercial Solar Tracking Equipment


Parameter:

Parameter
Specification
Voltage
12V DC / 24V DC
Max Load
20000N
Speed
1.4-1.5mm/s
Duty Cycle
10%
Protection Class
IP65/IP66/IP67
Noise Level
≤60dB
Stroke
100-800mm
Material
Aluminium Alloy


Dimension:

20000N 800mm Linear Actuator 12V 24V For Commercial Solar Tracking Equipment

Advantage:

20000N strong load drives heavy commercial solar trackers steadily. 12/24V wide voltage fits various solar power systems. Robust gear motor ensures long service life. High-quality structure with low cost improves project economy.
