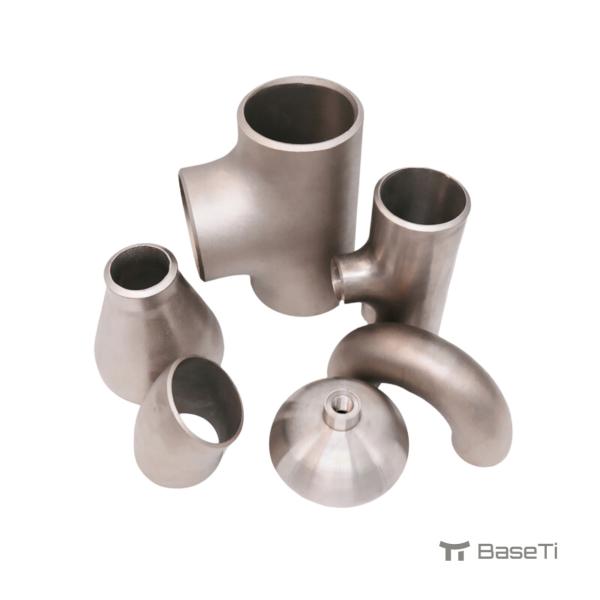

90 Deg 45 Deg Titanium Pipe Fittings Petrochemical 3 4 Tee Fitting For Oil Refining Plants
90 Deg 45 Deg Titanium Pipe Fittings Petrochemical 3 4 Tee Fitting For Oil Refining Plants
90 Deg 45 Deg Titanium Pipe Fittings Petrochemical 3 4 Tee Fitting For Oil Refining Plants
90 Deg 45 Deg Titanium Pipe Fittings Petrochemical 3 4 Tee Fitting For Oil Refining Plants
Specifications
Brand Name :
BaseTi
Model Number :
PF015
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
NO MOQ LIMITATION.
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
10~15 days
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Grade :
USA - Grade 2, 5, 9; Europe - Ti6Al4V, Ti2
Production standards :
USA - ASTM B363; Europe - EN 10253
Wall Thickness :
Schedule 40, 80
Angle :
90°, 45°
Connection Type :
Welded, threaded, flanged
Operating Temperature :
-60°C to 300°C
Surface process :
Annealed, pickled
Pressure Rating :
Class 150, 300, 600
Description

45°, 90° Petrochemical Titanium Tee Fitting For Oil Refining Chemical Plants LNG Terminals Fluid Transport Gas Pipelines

Titanium Tee Fitting - OVERVIEW

*If you have any requirements for customized titanium tee fitting, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 4 to 7 days.

Titanium pipe fittings specifications & parameters

Product name

Titanium tee fitting of titanium pipe fittings

Application field

Petrochemical, Aerospace, Medical Devices

Available size

1/2" to 24" (U.S.), DN15 to DN600 (EU) or customized size

Material Grade

USA - Grade 2, 5, 9; Europe - Ti6Al4V, Ti2
Production stadards USA - ASTM B363; Europe - EN 10253
Corrosion Resistance High
Strength High tensile and compressive strength
Temperature Resistance Up to 600°F

Wall Thickness

 Schedule 40, 80
Surface Finish Annealed, pickled

Angle

90°, 45°

Connection Type

Welded, threaded, flanged

Available size

1/2" to 48"

Biocompatibility

Excellent

Titanium Tee Fitting - APPLICATIONS

In the petrochemical landscape, choosing the right materials for piping solutions can significantly impact operational efficiency. This article aims to spotlight how Titanium tee fittings excel in addressing petrochemical sector needs.

  • Titanium's Unique Features:

Low Density: Titanium's lightweight nature contributes to easier installation and reduced transportation costs.

High Strength: Offers a superior strength-to-weight ratio, ideal for withstanding extreme conditions.

Heat Resistance: Exceptionally resilient under high temperatures.

Corrosion Resistance: Highly resistant to erosion and various forms of corrosion, particularly from harsh chemicals often used in the petrochemical industry.

BaseTi’s Role in the Petrochemical Sector:
BaseTi, a prominent titanium factory, has been a trusted titanium manufacturer and supplier, offering a range of customized Titanium tee fittings tailored for the petrochemical industry.

  • Real-World Applications and Cases:

Refineries: The corrosion resistance of Titanium tee fittings makes them indispensable in oil refining processes.
Chemical Plants: Used in systems requiring resistance to highly corrosive materials, such as chlorine gas.
LNG Terminals: The fittings' high strength and low thermal expansion make them ideal for liquified natural gas applications.

When it comes to petrochemical applications, Titanium tee fittings serve as a quintessential solution, ensuring durability, reliability, and efficiency. Choose BaseTi for the highest quality titanium solutions tailored to your needs.

Detailed Guide to Titanium Tee Fitting Use in Petrochemical
Application Area Product Type
Material Grade
 Feature Highlights Brand
Oil Refining High-Pressure Tee USA - Grade 5 High strength, Corrosion-resistant BaseTi
Chemical Plants Standard Tee EU - Ti6Al4V Heat & Corrosion Resistance BaseTi
LNG Terminals Reducing Tee USA - Grade 9 Low Thermal Expansion, High Strength BaseTi
Fluid Transport Equal Tee USA - Grade 2 Corrosion Resistance, Low Density BaseTi
Gas Pipelines Lateral Tee EU - Ti6Al7Nb High Durability, Corrosion Resistance BaseTi

Description

  1. High-Pressure Tee for Oil Refining: This tee, made from Grade 5 titanium, offers exceptional strength and corrosion resistance, ideal for high-pressure applications in oil refineries.

  2. Standard Tee for Chemical Plants: EU's Ti6Al4V grade provides a balanced profile of heat and corrosion resistance for chemical plant applications.

  3. Reducing Tee for LNG Terminals: Comprising USA's Grade 9 titanium, these tees are perfect for LNG terminals, offering low thermal expansion and high strength.

  4. Equal Tee for Fluid Transport: Using Grade 2 titanium, this tee offers corrosion resistance and a lower density for easier handling.

  5. Lateral Tee for Gas Pipelines: The EU's Ti6Al7Nb grade offers excellent durability and corrosion resistance, making it ideal for gas pipelines.

Physical Properties of Titanium Tee Fitting

Material Grade

Tensile Strength (MPa)

Yield Strength (MPa)

Elongation (%)
Hardness (Vickers)

Density (g/cm³)

USA - Grade 2

345

275

20

120

4.51

USA - Grade 5

950

880

14

334

4.43

USA - Grade 9

620

483

15

295

4.48

EU - Ti6Al4V

950

880

14

334

4.43

EU - Ti2

345

275

20

120

4.51

Chemical Properties of Titanium Tee Fitting
Material Grade C (wt%) N (wt%) O (wt%) Fe (wt%) Al (wt%) V (wt%)
USA - Grade 2 0.1 0.03 0.18 0.3 N/A N/A
USA - Grade 5 0.08 0.05 0.2 0.4 5.5-6.8 3.5-4.5
USA - Grade 9 0.05 0.03 0.12 0.25 2.5-3.5 2.0-3.0
EU - Ti6Al4V 0.08 0.05 0.2 0.4 5.5-6.8 3.5-4.5
EU - Ti2 0.1 0.03 0.18 0.3 N/A N/A
