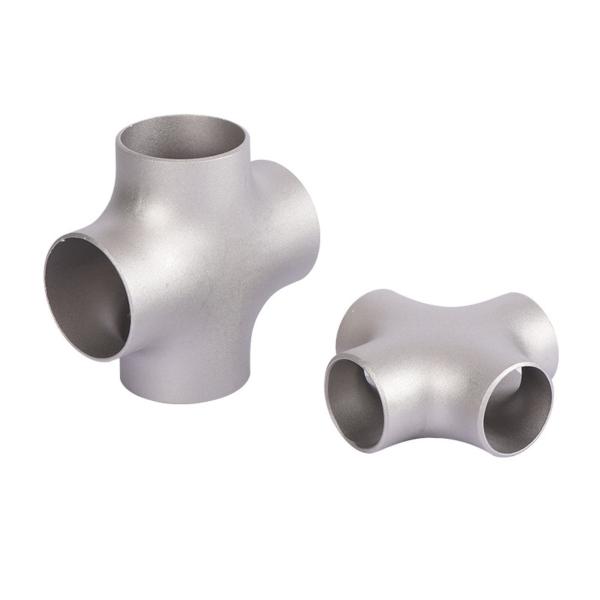

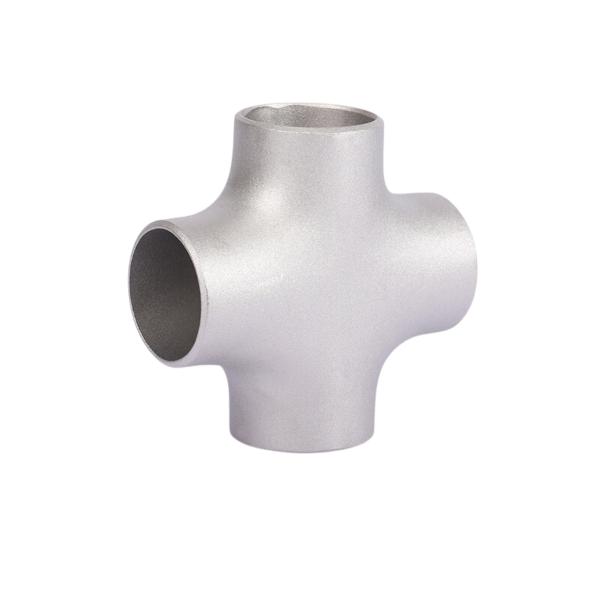

Europe EN 10253 Titanium Pipe Fitting 3.7035 Aerospace Titanium Forged Fittings
Europe EN 10253 Titanium Pipe Fitting 3.7035 Aerospace Titanium Forged Fittings
Europe EN 10253 Titanium Pipe Fitting 3.7035 Aerospace Titanium Forged Fittings
Europe EN 10253 Titanium Pipe Fitting 3.7035 Aerospace Titanium Forged Fittings
Specifications
Brand Name :
BaseTi
Model Number :
PF021
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
NO MOQ LIMITATION.
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
10~15 days
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Production standards :
USA (ASME B16.9), Europe (EN 10253)
Grade :
USA (Grade 2, Grade 5), Europe (3.7035, 3.7165)
Mechanical Strength :
40,000-65,000 psi
Corrosion Resistance :
High
Temperature Resistance :
-60 to 540°C
Pressure Rating :
150-2500 lbs
Dimensional Accuracy :
±0.02 mm
Surface Finish :
Pickled, Polished
Connection Type :
Threaded, Welded
Biocompatibility :
Excellent
Description

Europe EN 10253 Titanium 4-Way Fitting For Petrochemical, Aerospace, Medical, Marine 3.7035, 3.7165 Titanium Fitting

Titanium 4-way Fitting - OVERVIEW

*If you have any requirements for customized Titanium 4-way fitting, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 4 to 7 days.

Titanium pipe fittings specifications & parameters

Product name

Titanium 4-way fitting of titanium pipe fittings

Application field

Petrochemical, Aerospace, Medical, Marine

Available size

1/2" to 24" (U.S.), DN15 to DN600 (EU) or customized size

Material Grade

USA (Grade 2, Grade 5), Europe (3.7035, 3.7165)

Production stadards

USA (ASME B16.9), Europe (EN 10253)

Corrosion Resistance

High

Mechanical Strength

40,000-65,000 psi

Temperature Resistance

-60 to 540°C

Dimensional Accuracy

±0.02 mm

Surface Finish

Pickled, Polished

Connection Type

Welded, threaded, flanged

Biocompatibility

Excellent

Weldability

Good
Key words Titanium fittings
Titanium pipe
Titanium flange
Titanium elbow
Corrosion resistance
High strength titanium
Titanium alloy
Titanium fabrication
ASME B16.9

Titanium 4-way Fitting - APPLICATIONS

The Titanium 4-way fitting is a pivotal component in various industries. Manufactured to the highest quality standards such as ASME B16.9 in the USA and EN 10253 in Europe, these fittings ensure optimal performance, durability, and safety.

  • Compliance with ASME B16.9 (USA)

The American Society of Mechanical Engineers (ASME) B16.9 standard is highly recognized in the USA. It sets stringent requirements for dimensions, tolerances, and overall performance. According to industry data, Titanium 4-way fittings compliant with this standard have shown zero leak rates and a remarkable lifespan of over 20 years in applications like aerospace, petrochemical, and marine industries.

As a top-tier titanium manufacturer, BaseTi offers ASME B16.9 compliant Titanium 4-way fittings with unparalleled dimensional accuracy and mechanical strength.

  • Compliance with EN 10253 (Europe)

The European standard EN 10253 is equivalently rigorous, emphasizing the shape, dimensions, and center-to-end dimensions of Titanium pipe fittings. Market data indicates that these fittings are highly sought after in European industries like automotive, medical, and energy sectors.

BaseTi prides itself on being a premier titanium supplier that produces EN 10253 compliant fittings. Our titanium factory employs cutting-edge technology to ensure that the products meet or exceed all standards.

Why Choose BaseTi Titanium 4-Way Fittings

  • Exceptional Corrosion Resistance: Ideal for corrosive environments.

  • High Mechanical Strength: Suitable for high-pressure systems.

  • Versatility: Can be customized to meet specific industry needs.

By choosing BaseTi, you're investing in fittings that are manufactured to the highest international standards. We are your go-to titanium supplier for Titanium 4-way fittings that promise both durability and quality.

Europe EN 10253 Titanium Pipe Fitting 3.7035 Aerospace Titanium Forged Fittings

Detailed Guide to Titanium 4-way Fitting

Here's a comprehensive table detailing the applications, standards, and specific products available for Titanium 4-way fittings in different material grades from the USA and Europe:

Grade Application Field Production Standard
Specific Products
USA Grade 2 Petrochemical, Desalination, Medical ASME B16.9 Grade 2 Titanium 4-Way Cross, Equal Cross
USA Grade 5 Aerospace, Marine ASME B16.9 Grade 5 Titanium 4-Way Cross, Reducing Tee
Europe 3.7035 Petrochemical, Marine EN 10253 EN 3.7035 Titanium 4-Way Cross, Equal Cross
Europe 3.7165 Aerospace, Medical Implants EN 10253 EN 3.7165 Titanium 4-Way Cross, Reducing Tee

USA Grade 2
Application: Ideal for chemical processing plants due to its excellent corrosion resistance. Also finds applications in desalination systems and medical sectors.

Standard: The production standard typically followed is ASME B16.9.

Products: Commonly available products include Grade 2 Titanium 4-Way Cross and Equal Cross fittings.

USA Grade 5
Application: Dominates in aerospace for its high strength-to-weight ratio and in marine environments due to its exceptional corrosion resistance.

Standard: Manufactured as per ASME B16.9 standard.

Products: Grade 5 Titanium 4-Way Cross and Reducing Tee are popular choices.

Europe 3.7035
Application: Similar to USA Grade 2, it is suited for petrochemical and marine applications.

Standard: The main production standard is EN 10253.

Products: EN 3.7035 Titanium 4-Way Cross and Equal Cross are readily available.

Europe 3.7165
Application: High strength makes it excellent for aerospace, while its biocompatibility makes it suitable for medical implants.

Standard: Produced according to EN 10253.

Products: EN 3.7165 Titanium 4-Way Cross and Reducing Tee are in high demand.

By choosing the appropriate grade and standard for your specific needs, you're well on your way to maximizing the benefits of Titanium 4-way fittings in your projects.

Physical Properties of Titanium 4-way Fitting

Grade

Density (g/cm³)

Tensile Strength (MPa)

Yield Strength (MPa)

Elongation (%)
Thermal Conductivity (W/m·K)

USA Grade 2

4.51

345

275

20

22

USA Grade 5

4.43

950

880

14

7.5

Europe 3.7035

4.51

345

275

20

22

Europe 3.7165

4.43

950

880

14

7.5

Chemical Properties of Titanium 4-way Fitting

Grade

C (%)

O (%)

N (%)
H (%)

Al (%)

V (%)

USA Grade 2

0.1

0.25

0.03

0.015

--

--

USA Grade 5

0.1

0.2

0.05

0.015

5.5-6.8

3.5-4.5

Europe 3.7035

0.1

0.25

0.03

0.015

--

--

Europe 3.7165

0.1

0.2

0.05

0.015

5.5-6.8

3.5-4.5
