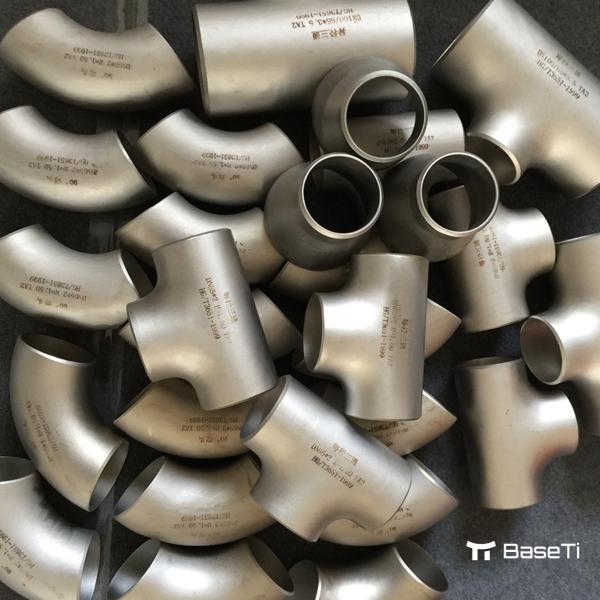

45° 90° 180° Alloy Titanium Tube Fittings Alloy Steel Fittings Titanium Elbow
45° 90° 180° Alloy Titanium Tube Fittings Alloy Steel Fittings Titanium Elbow
45° 90° 180° Alloy Titanium Tube Fittings Alloy Steel Fittings Titanium Elbow
45° 90° 180° Alloy Titanium Tube Fittings Alloy Steel Fittings Titanium Elbow
Specifications
Brand Name :
BaseTi
Model Number :
PF009
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
NO MOQ LIMITATION.
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
10~15 days
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Production standards :
ASME B16.9 in U.S., EN 10253 in EU
Grade :
Grade 5 (Ti-6Al-4V) in U.S., Ti-6Al-4V and Ti-6Al-7Nb in EU
Angle :
45°, 90°, 180°
Wall Thickness :
Sch 10, Sch 40, Sch 80
Connection Type :
Welded, Threaded, Socket Weld
Operating Temperature :
-60°C to 300°C
Surface process :
Pickling/Polished
Operating Pressure: :
Up to 3000 PSI
Description

45°, 90°, 180° Alloy Titanium Elbow Titanium Pipe Fittings For Automotive Structural Exhaust Systems Engine Components

Titanium Pipe Fittings - OVERVIEW

*If you have any requirements for customized titanium elbow, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.

Titanium pipe fittings specifications & parameters

Product name

Alloy Titanium elbow

Application field

Automotive

Available size

1/2" to 24" (U.S.), DN15 to DN600 (EU) or customized size

Material Grade

Grade 5 (Ti-6Al-4V) in U.S., Ti-6Al-4V and Ti-6Al-7Nb in EU

Wall Thickness

Sch 10, Sch 40, Sch 80

Angle

45°, 90°, 180°

Connection Type

Welded, Threaded, Quick-fit

Surface Finish

Pickling, Passivation

Operating Temperature

-60°C to 600°C

Operating Pressure

Up to 3000 PSI

Elbow of Titanium Pipe Fittings - APPLICATIONS

The automotive industry is constantly evolving, and the demand for lightweight, durable, and heat-resistant materials is higher than ever. This is where titanium elbow fittings come into play. Manufactured by BaseTi, a leading titanium factory, these fittings offer unparalleled advantages in automotive applications.

  • Why Titanium?

Low Density: Titanium has a density of 4.51 g/cm³, making it ideal for lightweight automotive applications.
High Strength: Titanium alloys can have a tensile strength up to 1,200 MPa, ensuring durability.
Heat Resistance: Titanium can withstand temperatures up to 600°C, making it suitable for high-temperature environments like exhaust systems.
Corrosion Resistance: Titanium is highly resistant to corrosion, even in salty conditions, making it perfect for under-the-hood applications.
Market Data
The global automotive titanium market is expected to reach $4.5 billion by 2025, growing at a CAGR of 3.5%. The demand for titanium elbow fittings, in particular, has seen a significant rise due to their application in high-performance vehicles and electric cars.

  • Applications and Solutions

Exhaust Systems: Titanium elbow fittings are commonly used in exhaust systems to connect various pipes. Their high heat resistance makes them ideal for this application.
Cooling Systems: The corrosion resistance of titanium makes it suitable for cooling systems where antifreeze solutions are used.
Turbochargers: The high strength-to-weight ratio of titanium makes it ideal for turbochargers, improving efficiency.

  • Why Choose BaseTi?

BaseTi is not just another titanium manufacturer; we are a trusted titanium supplier specializing in various grades of titanium elbow fittings. Our products adhere to international production standards, ensuring you get the highest quality and reliability.


In conclusion, titanium elbow fittings offer a multitude of benefits in the automotive industry, from lightweight design to high-temperature resistance. As a leading titanium supplier, BaseTi ensures that you get the best quality products for your automotive needs.

45° 90° 180° Alloy Titanium Tube Fittings Alloy Steel Fittings Titanium Elbow

Detailed Guide to Elbow of Titanium Pipe Fittings
Material Grade Application Field

Specific Products

 Production Standards
Grade 5 (Ti-6Al-4V) U.S. Automotive - Exhaust Systems High-performance exhaust pipes, Mufflers ASME B16.9
Ti-6Al-4V EU Automotive - Engine Components Turbocharger housings, Engine valves EN 10253
Ti-6Al-7Nb EU Automotive - Structural Components Chassis, Suspension arms EN 10253

Physical Properties of Titanium Elbow

When it comes to Alloy Titanium Elbows, the physical properties are crucial for various applications. Below is an Excel table outlining the physical properties of Grade 5 (Ti-6Al-4V) in the U.S. and Ti-6Al-4V and Ti-6Al-7Nb in the EU.

Property
Grade 5 (Ti-6Al-4V) U.S.
 Ti-6Al-4V EU Ti-6Al-7Nb EU
Density (g/cm³) 4.43 4.43 4.52
Tensile Strength (MPa) 1,200 1,150 1,100
Yield Strength (MPa) 1,100 1,050 1,000
Elongation (%) 14 15 16
Hardness (HV) 360 350 340
Melting Point (°C) 1,650 1,635 1,625

Chemical Properties of Titanium Elbow

Here is an Excel table detailing the chemical properties of Grade 5 (Ti-6Al-4V) in the U.S., Ti-6Al-4V, and Ti-6Al-7Nb in the EU.

Element Grade 5 (Ti-6Al-4V) U.S.
Ti-6Al-4V EU
 Ti-6Al-7Nb EU
Ti Bal. Bal. Bal.
Al 6.0 6.0 6.0
V 4.0 4.0 4.0
Nb - - 7.0
Fe 0.25 0.30 0.25
O 0.20 0.18 0.13
