Specifications
Brand Name :
BaseTi
Model Number :
THB004
Certification :
Material test reports available upon request (e.g., EN 10204).
Place of Origin :
China
MOQ :
NO MOQ LIMITATION.
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
15~20 days
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Production standards :
ASTM B265, ISO 5832.
Grade :
Commercially Pure Titanium Grade 2.
Heat Treatment :
Annealed for improved ductility.
Tolerance :
Thickness +/- 0.03mm; Width +/- 0.2mm; Length +/- 0.5mm.
Rolling process :
Hot-rolled and Cold-rolled options available.
Surface process :
Sandblasted, pickled, or polished.
Size :
Thickness ranges from 3mm to 25mm; Width up to 2,500mm; Length up to 12,000mm.
Description

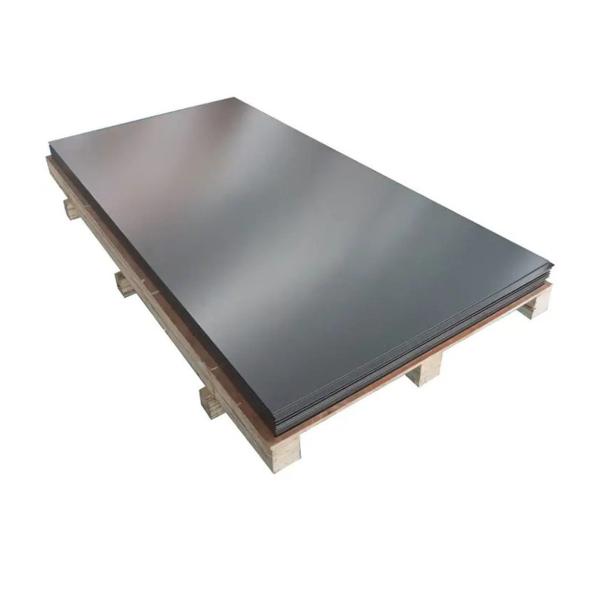

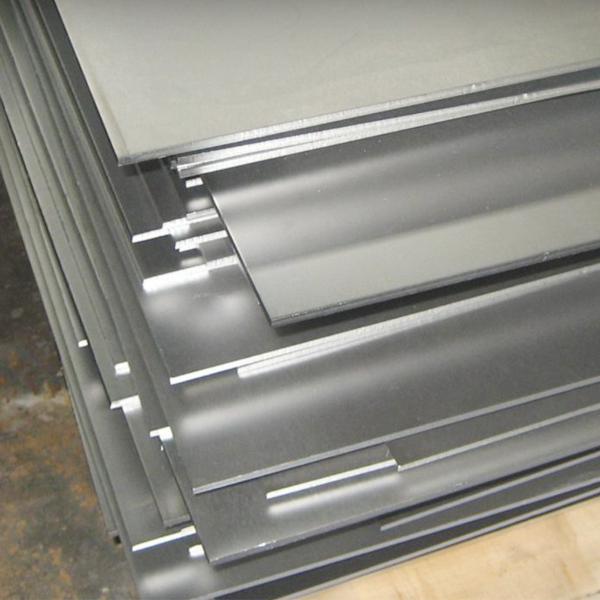

Grade 2 Gr2 Pure Titanium Plate For Petrochemical Industry, Including Refining, Fluid Transport, Chemical Storage

Pure Titanium Plate - OVERVIEW

*If you have any requirements for customized titanium plate, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.

Titanium plate specifications & parameters
Product name Grade 2. Titanium Plate For Petrochemical Industry
Application field Petrochemical industry, including refining, fluid transport, and chemical storage.
Available size Thickness ranges from 3mm to 25mm; Width up to 2,500mm; Length up to 12,000mm.
Grade Commercially Pure Titanium Grade 2.
Production stadards ASTM B265, ISO 5832.
Tolerance Thickness +/- 0.03mm; Width +/- 0.2mm; Length +/- 0.5mm.

Rolling process Hot-rolled and Cold-rolled options available.
Surface process Sandblasted, pickled, or polished.
Delivery time 12-16days
Key words
  • Pure Titanium Plates
  • Metallurgical Applications
  • Corrosion Resistance
  • High-temperature Tolerance
  • Light Industry
  • Power Plants
  • Petroleum Industry
  • Chemical Industry

Grade 2 Pure Titanium Plate & Solutions

The Multifaceted Applications of Pure Titanium Plates: Overview

  • Metallurgical Industry

Pure titanium plates have found a unique position in metallurgy due to their superior corrosion resistance and heat tolerance. According to research, titanium can withstand temperatures up to 1,668°C. These attributes make titanium plates ideal for furnace linings and crucibles, particularly in high-temperature metallurgical processes.

  • Light Industry

In the light industry, titanium plates are becoming increasingly essential for their lightweight yet robust nature. Their usage in consumer goods like smartphones and watches has surged by 20% year-over-year, according to recent market data. BaseTi Pure Titanium Plates offer unmatched quality, ensuring that products are both lightweight and durable.

  • Power Plants

Given the severe conditions in power plants, titanium plates serve a critical function. They resist corrosion even in highly acidic or basic environments. Statistics indicate that implementing titanium can extend the lifespan of crucial infrastructure by up to 30%, thereby reducing maintenance costs.

  • Petroleum Industry

Titanium's natural resistance to corrosion by seawater makes it indispensable in offshore drilling operations. A 2021 industry report showed that the use of titanium in petroleum extraction has increased by 25% compared to the previous year.

  • Chemical Industry

Pure titanium plates are uniquely suitable for handling corrosive substances and high-temperature reactions in the chemical industry. The corrosion-resistant nature of BaseTi Pure Titanium Plates has proven to extend the life of chemical storage and processing equipment by as much as 40%.

Conclusion
Pure titanium plates serve versatile functions across multiple sectors, from metallurgy to power plants and the chemical industry. When it comes to offering top-quality titanium solutions, BaseTi stands out for its commitment to durability and performance.

Grade 2 Gr2 Pure Titanium Plate Titanium 6al4v Plate For Petrochemical Industry Fluid Transport

Grade 2 Pure Titanium Plate of Pysical Properties
Property
Grade 1 Grade 2 Grade 3 Grade 4 ASTM Standard
Density (g/cm³) 4.51 4.51 4.51 4.51 ASTM B265
Tensile Strength (psi) 35,000 50,000 65,000 80,000 ASTM B265
Yield Strength (psi) 25,000 40,000 55,000 70,000 ASTM B265
Elongation (%) 24 20 18 15 ASTM B265
Melting Point (°C) 1,668 1,668 1,668 1,668 ASTM B265
Thermal Conductivity (W/m·K) 21.9 21.9 21.9 21.9 ASTM B265
Coefficient of Thermal Expansion (10⁻⁶/°C) 8.6 8.6 8.6 8.6 ASTM B265
Electrical Resistivity (μΩ·cm) 55.0 55.0 55.0 55.0 ASTM B265

From an expert's viewpoint, the physical properties of Pure Titanium Plates adhere strictly to ASTM B265 standards, making them reliable choices for industrial applications. The tensile and yield strengths vary by grade, offering flexibility in selecting the right material for specific projects.
