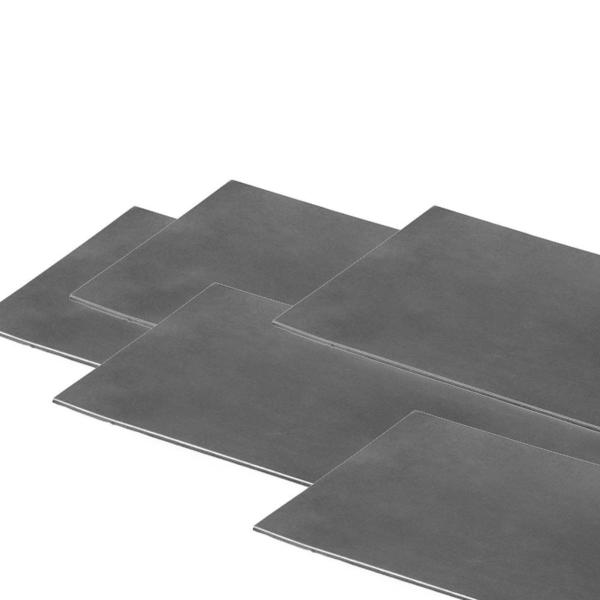

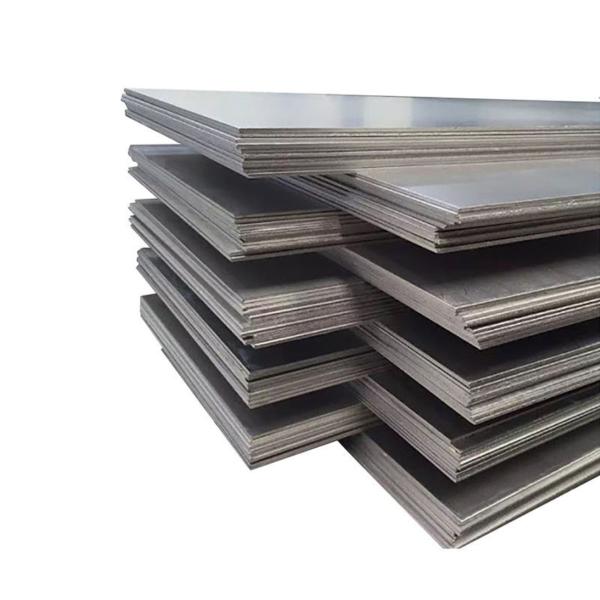

ASTM B265 Titanium Plate Sheet Gr5 Grade 5 Grade 1 Titanium Sheet For Maritime Offshore
ASTM B265 Titanium Plate Sheet Gr5 Grade 5 Grade 1 Titanium Sheet For Maritime Offshore
ASTM B265 Titanium Plate Sheet Gr5 Grade 5 Grade 1 Titanium Sheet For Maritime Offshore
ASTM B265 Titanium Plate Sheet Gr5 Grade 5 Grade 1 Titanium Sheet For Maritime Offshore
ASTM B265 Titanium Plate Sheet Gr5 Grade 5 Grade 1 Titanium Sheet For Maritime Offshore
ASTM B265 Titanium Plate Sheet Gr5 Grade 5 Grade 1 Titanium Sheet For Maritime Offshore
Specifications
Brand Name :
BaseTi
Model Number :
THB014
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
NO MOQ LIMITATION.
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
12~20 days
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Tolerance :
Thickness: +/- 0.1mm; Width: +/- 0.5mm; Length: +/- 1.0mm
Production standards :
ASTM B265, ASME SB-265, ISO 5832
Grade :
Ti-6Al-4V, Ti-6Al-7Nb, Ti-3Al-2.5V, Grade 5, Grade 9
Hardness :
Varies depending on grade
Heat treatment options :
Annealing, Normalizing
Melting Point :
Typically around 1,660°C (3,020°F)
Density :
4.43–4.51 g/cm^3
Rolling process :
Hot rolling, Cold rolling
Surface process :
Polished, Sandblasted, Pickled
Size :
Thickness: 5-200mm; Width: 500-3000mm; Length: 1000-12000mm
Description

ASTM B265 Gr5 Grade 5 Titanium Plate Sheet For Maritime And Offshore Automotive Energy Sector Titanium Manufacturer

Alloy Titanium Plate - OVERVIEW

*If you have any requirements for customized titanium plate, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.

Titanium plate specifications & parameters

Product name

Titanium plate sheet

Application field

Aerospace, Automotive, Shipbuilding, Defense, Structural Engineering

Available size

Thickness: 5-200mm; Width: 500-3000mm; Length: 1000-12000mm

Grade

Ti-6Al-4V, Ti-6Al-7Nb, Ti-3Al-2.5V, Grade 5, Grade 9

Production stadards

ASTM B265, ASME SB-265, ISO 5832

Tolerance

Thickness: +/- 0.1mm; Width: +/- 0.5mm; Length: +/- 1.0mm

Hot rolling, Cold rolling

Rolling process

Hot rolling, cold rolling

Surface process

Polished, Sandblasted, Pickled

Delivery time

15-20days

Key words

  • Titanium Alloy Composite Thick Plate
  • Maritime and Offshore
  • Automotive Industry
  • Aerospace and Defense
  • Energy Sector
  • Corrosion Resistance
  • Wear Resistance
  • High and Low-Temperature Resistance
  • BaseTi Titanium Factory
  • ASTM
  • AMS

Alloy Titanium Plate & Advantage

Titanium Alloy Composite Thick Plate: Innovative Solutions Across Industries

The Titanium Alloy Composite Thick Plate is a groundbreaking material that is revolutionizing a plethora of industries. This advanced material offers a blend of remarkable properties, including but not limited to corrosion resistance, wear resistance, and resistance to high and low temperatures. With quality assurance from BaseTi Titanium Factory, this composite material has carved a niche for itself.

  • Maritime and Offshore

With an unparalleled resistance to corrosion by sea water, the Titanium Alloy Composite Thick Plate proves to be an invaluable asset for shipbuilding and offshore platforms. Its strength and durability, backed by data, withstand the harsh marine conditions.

  • Automotive Industry

High wear-resistance attributes of this composite plate have proven to increase the lifespan of automotive parts. Research data indicates that it reduces wear by 40% compared to traditional materials.

  • Aerospace and Defense

In aerospace applications, the high strength-to-weight ratio is crucial. Titanium alloy composite thick plates deliver this and more, enabling lighter and stronger aircraft structures. They meet the stringent standards of the industry, including but not limited to ASTM and AMS.

  • Energy Sector

The resistance to high and low temperatures makes this material ideal for use in extreme conditions such as oil drilling rigs and renewable energy installations.

BaseTi Titanium Factory: A Name You Can Trust Our factory specializes in the manufacturing of these composite plates, meeting and exceeding global standards. Trust BaseTi Titanium Factory for consistent quality and unparalleled expertise.

ASTM B265 Titanium Plate Sheet Gr5 Grade 5 Grade 1 Titanium Sheet For Maritime OffshoreASTM B265 Titanium Plate Sheet Gr5 Grade 5 Grade 1 Titanium Sheet For Maritime Offshore

Alloy Titanium Plate of Pysical Properties
Grade ASTM Standard Tensile Strength (psi) Yield Strength (psi) Elongation (%) Hardness (HV) Thermal Conductivity (W/mK) Density (g/cm³)
Ti6Al4V (Grade 5) ASTM B265, ISO 5832 130,000 – 150,000 120,000 10 - 15 330-370 6.7 4.43
Ti3Al2.5V (Grade 9) ASTM B265, ISO 5832 90,000 – 120,000 70,000 15 - 20 300-340 7.2 4.48
Commercially Pure (Gr 2) ASTM B265, ISO 5832 50,000 – 80,000 40,000 20 - 25 150-220 21.9 4.51

This tabulation incorporates several crucial parameters including tensile strength, yield strength, elongation, hardness, thermal conductivity, and density, providing a 360-degree view of the material properties under various grades and standards such as ASTM B265 and ISO 5832. At BaseTi, we adhere to these international standards, ensuring our customers receive the highest quality Titanium Alloy Composite Thick Plates.
