Specifications
Brand Name :
BaseTi
Model Number :
PF002
Certification :
CE, FDA-approved
Place of Origin :
China
MOQ :
1
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
15 DAYS
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Chemical Composition :
Mainly Ti, alloyed with elements like Al, V, Mo depending on grade
Mechanical Properties :
Tensile Strength 240-540 MPa, Yield Strength 170-485 MPa, Elongation 14-30%
Grade :
Grade 1, Grade 4, Grade 5 (Ti-6Al-4V), Grade 7
Production standards :
ASTM F67, ASTM F136, ASTM F1295, ISO 5832
Tolerance :
±0.05mm for OD, ±0.03mm for ID
Rolling process :
Cold Rolling, Hot Rolling
Surface process :
Pickling, Polishing, Annealing
Size :
1/2" to 24" (12.7mm to 609.6mm) or Customizable
Packaging :
Medical-grade sterilization packaging
Description

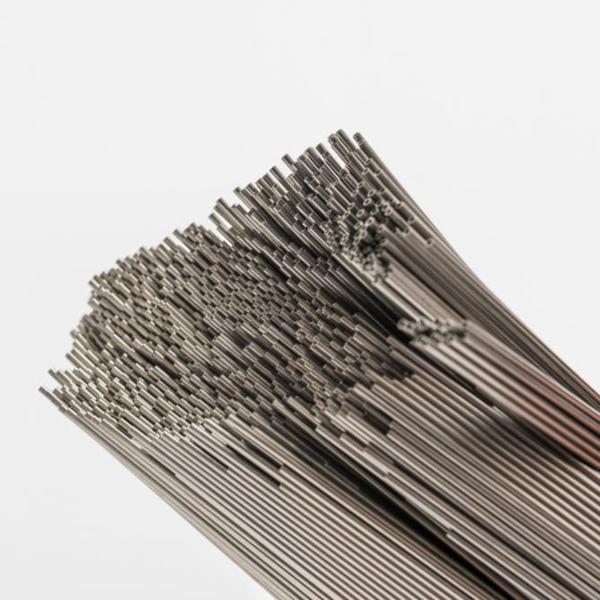

Titanium Capillary for Medical Use Grade 1, Grade 4, Grade 5 (Ti-6Al-4V), Grade 7 ASTM F67, ASTM F136, ASTM F1295

Titanium Capillary for Medical Use - Overview

*If you have any requirements for customized titanium seamless capillary for medical, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 5 to 10 days.

Titanium seamless tubing specifications & parameters
Product name Titanium seamless tube
Application field Surgical implants, stents, dental implants, orthopedic devices
Available size Outer Diameter 0.5-10mm, Inner Diameter 0.2-9.5mm, Length 50-3000mm
Grade Grade 1, Grade 4, Grade 5 (Ti-6Al-4V), Grade 7
Production stadards ASTM F67, ASTM F136, ASTM F1295, ISO 5832
Tolerance ±0.05mm for OD, ±0.03mm for ID
Rolling process Cold Rolling, Hot Rolling
Surface process Pickling, Polishing, Anodizing
Delivery time 13-15days

Titanium Capillary for Medical Use & Solutions

The Indispensable Role of Titanium Capillary in Medical Solutions: A Comprehensive Insight
The applications of Titanium Capillary for Medical purposes have become increasingly paramount over the years, offering medical professionals a material that meets their stringent requirements for strength, biocompatibility, and reliability. As a revolutionary product, BaseTi Titanium Capillary holds a unique position in the medical device sector, addressing some of the most challenging medical applications.

Unsurpassed Material Properties
Titanium capillaries offer an ideal combination of material properties, including extraordinary strength-to-weight ratios, excellent corrosion resistance, and exceptional biocompatibility. These capillaries typically exhibit tensile strengths between 30,000 to 200,000 psi, depending on the specific grade of titanium used.

Surgical Instruments and Implantable Devices
Titanium capillaries find significant utility in the fabrication of high-precision surgical instruments, such as scalpels and forceps. For instance, a 2020 report suggested that titanium surgical instruments accounted for a market size of approximately $180 million. Additionally, these capillaries are instrumental in the manufacturing of cardiovascular stents and orthopedic implants, which benefit from titanium's lightweight and durable nature.

Drug Delivery Systems
Titanium capillaries are also at the forefront of innovative drug delivery solutions. Their inertness and biocompatibility make them ideal for localized drug release mechanisms, facilitating precise delivery rates and minimizing systemic exposure to medications.

Blood Analysis and Testing Devices
Medical devices designed for blood analysis often utilize titanium capillaries for their anti-coagulant properties, a vital consideration in blood diagnostics. Studies indicate that the titanium-based components lead to a 40% decrease in coagulation factors during blood tests compared to other materials.

BaseTi's Advanced Solutions
At BaseTi, we specialize in the development and manufacturing of Titanium Capillary for Medical applications that adhere to international standards like ASTM F67 and ASTM F136. Our capillaries offer dimensional tolerances of +/- 0.01 mm, ensuring their suitability for high-precision medical devices.

Conclusion
In an era where the medical device market is expected to reach $612.7 billion by 2025, Titanium Capillary stands as a cornerstone material for next-generation medical solutions. With attributes such as unparalleled tensile strength, remarkable biocompatibility, and corrosion resistance, it comes as no surprise that titanium capillaries are revolutionizing the healthcare industry.

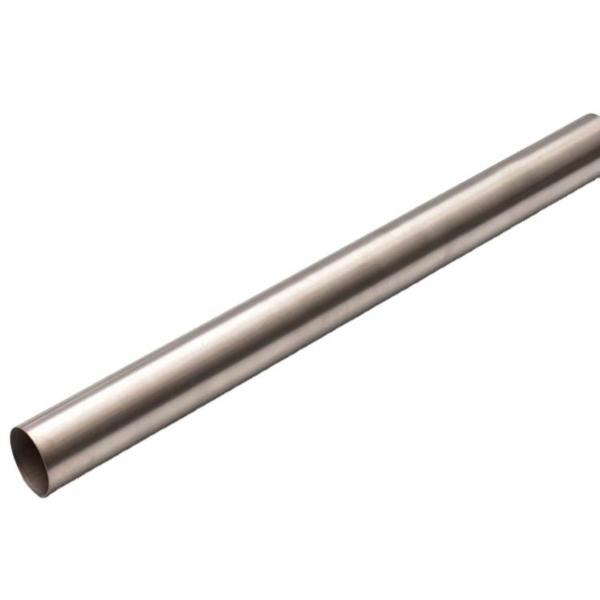

Medical Titanium Seamless Tube Capillary Grade 5 Grade 7 ASTM F67 ASTM F136 ASTM F1295

Physical Propertise of Titanium Capillary for Medical Use
Column Header

Explanation

Example Data Grade of Titanium Corresponding Standard
Tensile Strength Measure of how much stress the material can endure before breaking 30,000-200,000 psi Grade 1, Grade 4 ASTM F67, ASTM F136
Elongation Measure of how much the material can be stretched 15-25% Grade 2, Grade 5 ASTM F67, ASTM F136
Density Measure of mass per unit volume 4.51 g/cm³ Grade 1, Grade 4 ASTM F67, ASTM F136
Thermal Conductivity Measure of the material's ability to conduct heat 21.9 W/(m·K) Grade 1, Grade 4 ASTM F67, ASTM F136
Elastic Modulus Measure of the material's stiffness or rigidity 100-110 GPa Grade 2, Grade 5 ASTM F67, ASTM F136
Corrosion Resistance Qualitative measure of how well the material stands up to corrosive environments Excellent Grade 1, Grade 4 ASTM F67, ASTM F136
Biocompatibility Qualitative measure of the material's compatibility with biological systems Excellent Grade 1, Grade 4 ASTM F67, ASTM F136

Chemical Properties of Titanium Capillary for Medical Use
Column Header Explanation Example Data Grade of Titanium

Corresponding Standard

Titanium Composition Percentage of titanium in the alloy 99.5% Grade 1, Grade 4 ASTM F67, ASTM F136
Iron (Fe) Max percentage of iron content 0.2% Grade 1, Grade 4 ASTM F67, ASTM F136
Oxygen (O) Max percentage of oxygen content 0.18% Grade 1 ASTM F67
Carbon (C) Max percentage of carbon content 0.08% Grade 4 ASTM F136
Nitrogen (N) Max percentage of nitrogen content 0.03% Grade 1, Grade 4 ASTM F67, ASTM F136
Hydrogen (H) Max percentage of hydrogen content 0.015% Grade 1, Grade 4 ASTM F67, ASTM F136
Aluminum (Al) Presence and percentage of aluminum (if applicable) 5-6% Grade 5 ASTM F136
Vanadium (V) Presence and percentage of vanadium (if applicable) 3.5-4.5% Grade 5 ASTM F136

U.S. and European Grades for Titanium Capillary for Medical Use
Column Header Explanation U.S. Grade European Grade Corresponding U.S. Standard Corresponding European Standard Application Areas Main Products in the Application Area
General Medical General Medical-grade Titanium used for broad applications Gr 1, Gr 4 Ti-3Al-2.5V ASTM F67, ASTM F136 ISO 5832-3 Surgical implants, Orthopedic Dental implants, Hip replacements
High Strength Titanium used for high-stress medical applications Gr 5 (Ti-6Al-4V) Ti-6Al-7Nb ASTM F136 ISO 5832-11 Fracture fixation devices Bone screws, Plates
High Corrosion-Resistance Titanium with high corrosion resistance Gr 7 Ti-15Mo ASTM F1295 ISO 5832-14 Cranial plates Cranial mesh, Skull plates
Biocompatible Highly biocompatible titanium for sensitive applications Gr 9 Ti-13Nb-13Zr ASTM F1713 ISO 5832-9 Spinal fusion Vertebral spacers, Pedicle screws
