Specifications
Brand Name :
BaseTi
Model Number :
PF003
Certification :
CE, FDA-approved
Place of Origin :
China
MOQ :
1
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
15 DAYS
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Grade :
Grade 1, Grade 4, Grade 5 (Ti-6Al-4V), Grade 7
Mechanical Properties :
Tensile Strength 240-540 MPa, Yield Strength 170-485 MPa, Elongation 14-30%
Production standards :
ASTM F67, ASTM F136, ASTM F1295, ISO 5832
Chemical Composition :
Mainly Ti, alloyed with elements like Al, V, Mo depending on grade
Tolerance :
±0.05mm for OD, ±0.03mm for ID
Rolling process :
Cold Rolling, Hot Rolling
Surface process :
Pickling, Polishing, Annealing
Size :
1/2" to 24" (12.7mm to 609.6mm) or Customizable
Packaging :
Medical-grade sterilization packaging
Description

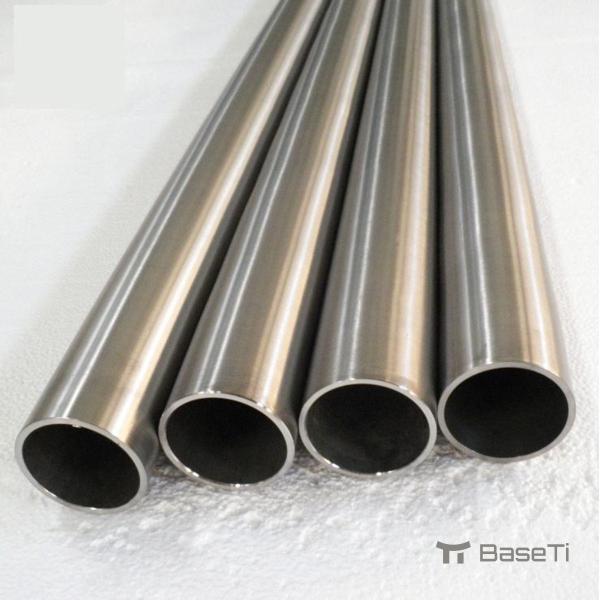

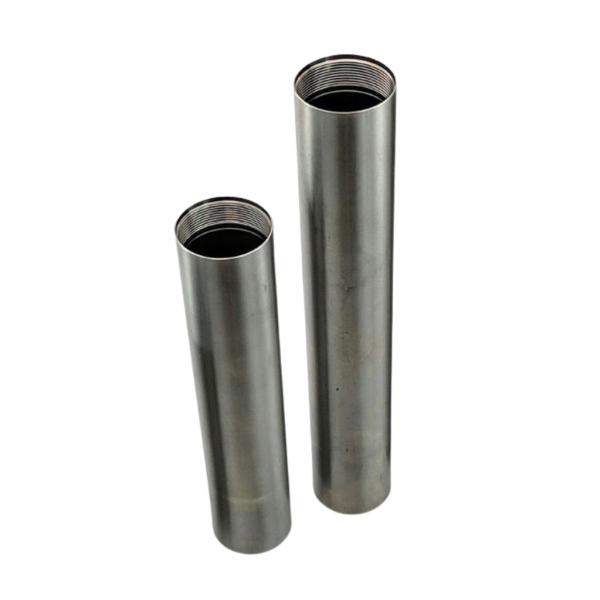

Grade 9 Titanium Capillary For Medical Use Titanium Seamless Tube Both Ends Threaded ASTM F67, ASTM F136, ASTM F1295

Titanium Capillary for Medical Use - Overview

*If you have any requirements for customized titanium seamless capillary for medical, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 5 to 10 days.

Titanium seamless tubing specifications & parameters
Product name Titanium seamless tube
Application field Surgical implants, stents, dental implants, orthopedic devices
Available size Outer Diameter 0.5-10mm, Inner Diameter 0.2-9.5mm, Length 50-3000mm
Grade Grade 1, Grade 4, Grade 5 (Ti-6Al-4V), Grade 7
Production stadards ASTM F67, ASTM F136, ASTM F1295, ISO 5832
Tolerance ±0.05mm for OD, ±0.03mm for ID
Rolling process Cold Rolling, Hot Rolling
Surface process Pickling, Polishing, Anodizing
Delivery time 13-15days

Titanium Capillary for Medical Use & Solutions

Crucial Contribution of Titanium Capillary in Medical Innovations: An In-Depth Analysis
The significance of Titanium Capillary in medical applications has experienced a notable uptick over recent years, providing clinicians with a material that excels in robustness, biocompatibility, and dependability. Serving as a breakthrough in the medical device landscape, BaseTi Titanium Capillaries are optimally positioned to meet the demands of highly specialized medical procedures.

Exceptional Material Qualities
Boasting a unique fusion of mechanical and chemical attributes, Titanium Capillaries offer excellent strength-to-weight ratios, corrosion-resistant features, and unparalleled biocompatibility. The tensile strengths for these capillaries usually range between 30,000 and 200,000 psi, contingent upon the specific titanium grade employed.

Medical Instruments and Implant Technologies
Titanium Capillaries are integral to the creation of specialized surgical equipment, including but not limited to scalpels and surgical forceps. Data from a 2020 survey estimated the market value of titanium-based surgical instruments at around $180 million. Moreover, these capillaries play a pivotal role in manufacturing cardiovascular stents and orthopedic implants, taking advantage of titanium's lightweight and robust attributes.

Drug Dissemination Systems
Being biocompatible and inert, Titanium Capillaries serve as the backbone for cutting-edge drug release systems. These characteristics allow for controlled delivery and limit systemic drug exposure, thus enhancing patient safety.

Blood Diagnostic Equipment
Titanium Capillaries are favored in the design of devices for blood analysis due to their anticoagulant properties. Research suggests that employing titanium components can lead to a 40% reduction in blood coagulation factors when compared to alternative materials.

Advanced Offerings by BaseTi
BaseTi specializes in crafting Titanium Capillaries that adhere to globally recognized standards like ASTM F67 and ASTM F136. Our products come with tight dimensional tolerances of +/- 0.01 mm, making them ideal for high-precision medical instrumentation.

Final
In a time where the global medical device market is projected to achieve a staggering $612.7 billion valuation by 2025, the role of Titanium Capillaries as a foundational material for advanced medical technologies cannot be overstated. With their superior tensile strength, excellent biocompatibility, and resistance to corrosion, Titanium Capillaries are indisputably shaping the future of healthcare.

Grade 9 Seamless Titanium Tube Capillary For Medical Titaextruded Titanium Tubing Both Ends ThreadedGrade 9 Seamless Titanium Tube Capillary For Medical Titaextruded Titanium Tubing Both Ends Threaded

Physical Propertise of Titanium Capillary for Medical Use
Column Header

Explanation

 Example Data Grade of Titanium Corresponding Standard
Tensile Strength Measure of how much stress the material can endure before breaking 30,000-200,000 psi Grade 1, Grade 4 ASTM F67, ASTM F136
Elongation Measure of how much the material can be stretched 15-25% Grade 2, Grade 5 ASTM F67, ASTM F136
Density Measure of mass per unit volume 4.51 g/cm³ Grade 1, Grade 4 ASTM F67, ASTM F136
Thermal Conductivity Measure of the material's ability to conduct heat 21.9 W/(m·K) Grade 1, Grade 4 ASTM F67, ASTM F136
Elastic Modulus Measure of the material's stiffness or rigidity 100-110 GPa Grade 2, Grade 5 ASTM F67, ASTM F136
Corrosion Resistance Qualitative measure of how well the material stands up to corrosive environments Excellent Grade 1, Grade 4 ASTM F67, ASTM F136
Biocompatibility Qualitative measure of the material's compatibility with biological systems Excellent Grade 1, Grade 4 ASTM F67, ASTM F136

Chemical Properties of Titanium Capillary for Medical Use
Column Header Explanation Example Data Grade of Titanium

Corresponding Standard
Titanium Composition Percentage of titanium in the alloy 99.5% Grade 1, Grade 4 ASTM F67, ASTM F136
Iron (Fe) Max percentage of iron content 0.2% Grade 1, Grade 4 ASTM F67, ASTM F136
Oxygen (O) Max percentage of oxygen content 0.18% Grade 1 ASTM F67
Carbon (C) Max percentage of carbon content 0.08% Grade 4 ASTM F136
Nitrogen (N) Max percentage of nitrogen content 0.03% Grade 1, Grade 4 ASTM F67, ASTM F136
Hydrogen (H) Max percentage of hydrogen content 0.015% Grade 1, Grade 4 ASTM F67, ASTM F136
Aluminum (Al) Presence and percentage of aluminum (if applicable) 5-6% Grade 5 ASTM F136
Vanadium (V) Presence and percentage of vanadium (if applicable) 3.5-4.5% Grade 5 ASTM F136

U.S. and European Grades for Titanium Capillary for Medical Use
Column Header Explanation U.S. Grade European Grade Corresponding U.S. Standard Corresponding European Standard Application Areas Main Products in the Application Area
General Medical General Medical-grade Titanium used for broad applications Gr 1, Gr 4 Ti-3Al-2.5V ASTM F67, ASTM F136 ISO 5832-3 Surgical implants, Orthopedic Dental implants, Hip replacements
High Strength Titanium used for high-stress medical applications Gr 5 (Ti-6Al-4V) Ti-6Al-7Nb ASTM F136 ISO 5832-11 Fracture fixation devices Bone screws, Plates
High Corrosion-Resistance Titanium with high corrosion resistance Gr 7 Ti-15Mo ASTM F1295 ISO 5832-14 Cranial plates Cranial mesh, Skull plates
Biocompatible Highly biocompatible titanium for sensitive applications Gr 9 Ti-13Nb-13Zr ASTM F1713 ISO 5832-9 Spinal fusion Vertebral spacers, Pedicle screws
