Specifications
Brand Name :
BaseTi
Model Number :
PF009
Certification :
ISO 9001, API, CE
Place of Origin :
China
MOQ :
1
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
15 DAYS
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Mechanical Properties :
Tensile Strength, Yield Strength, Elongation
Production standards :
ASTM B338, ASTM B861, ASME SB338
Tolerance :
Outer Diameter +/- 0.1mm; Wall Thickness +/- 10%; Length +/- 5mm
Grade :
Titanium Grade 1, Grade 2, Grade 5, Grade 7, Grade 9, Grade 12
Rolling process :
Extrusion, Piercing, Elongation, Sizing
Surface process :
Pickling, Annealing, Polishing
Size :
1/2" to 24" (12.7mm to 609.6mm) or Customizable
Description

Customized Gr1 Gr2 Gr9 Titanium Seamless Tube Pipes Ti Alloy Tubing For Chemical Industry, Petroleum, Machinery

TITANIUM SEAMLESS TUBE - OVERVIEW

*If you have any requirements for customized titanium seamless tube pipes, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 3 to 7 days.

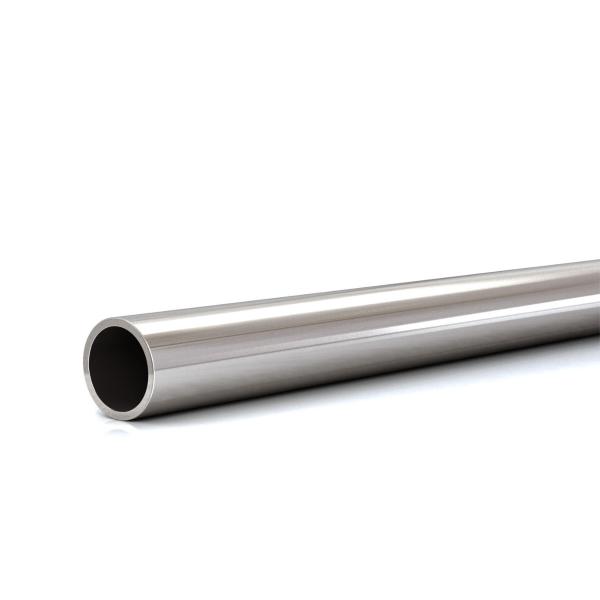

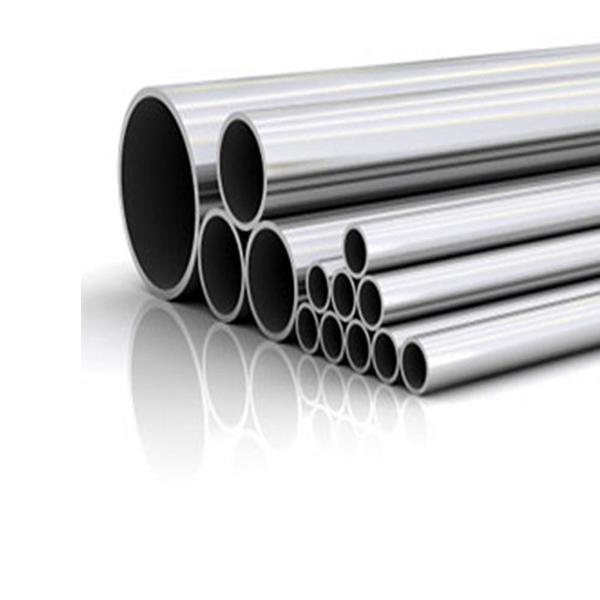

Titanium seamless tube pipes

Product name Titanium seamless tube for Chemical industry, petroleum, machinery
Application field Chemical processing, petrochemical industry, mechanical engineering
Available size Outer Diameter - 6mm to 219mm; Wall Thickness - 0.5mm to 20mm
Grade Grade 1, Grade 2, Grade 5, Grade 7, Grade 9
Production stadards ASTM B338, ASTM B861, ASME SB338
Tolerance Outer Diameter +/- 0.1mm; Wall Thickness +/- 10%; Length +/- 5mm
Rolling process Extrusion, Piercing, Elongation, Sizing
Surface process Pickling, Annealing, Polishing
Delivery time 13-15days

Chemical Industrial, Petroleum Machinery - SOLUTIONS

The Indispensable Functionality of Titanium Seamless Tubes in the Chemical and Petroleum Industries
The chemical and petroleum sectors are witnessing an unprecedented need for materials that are robust, resistant to corrosion, and long-lasting. Titanium Seamless Tubes emerge as the material par excellence, meeting the most rigorous industry demands with unmatched performance metrics. As a front-runner in this space, BaseTi offers a diverse selection of titanium tubes that establish new benchmarks in the industry.

Why Choose Titanium Seamless Tubes?
Characterized by its exceptional resilience to a broad spectrum of corrosive elements such as chlorides and sulfides, titanium is the go-to material for challenging conditions. The tensile strengths of these tubes range between 40,000 and 120,000 psi depending on their grade, qualifying them for high-pressure tasks— a critical factor in both chemical manufacturing and petroleum refining.

Utility in the Chemical Sector
In the realm of chemical processing, Titanium Seamless Tubes find extensive application in heat exchangers, distillation towers, and chemical reactors. Recent market studies predict that the global heat exchanger market is poised to hit $22.59 billion by the year 2028, underscoring the enormous scope for titanium tube utilization in this domain.

Significance in the Petroleum Industry
Within the petroleum industry, Titanium Seamless Tubes serve as invaluable components in offshore drilling rigs and underwater pipelines, demonstrating resilience to extreme temperature and pressure fluctuations as well as corrosive elements. A 2022 analysis anticipates the offshore drilling market's worth to escalate to roughly $56.97 billion by 2026, reaffirming the critical contribution of titanium tubing.

BaseTi's Offerings
BaseTi’s range of Titanium Seamless Tubes adheres to globally recognized manufacturing standards like ASTM B338 and ASTM B861. With a dimensional tolerance as narrow as +/- 0.1mm, these tubes are the perfect fit for applications necessitating high-precision engineering.

Final Remarks
As industries continue to specialize and demand high-performance materials, Titanium Seamless Tubes by BaseTi are cementing their role as essential components in the chemical and petroleum sectors. With unmatched tensile strength, anti-corrosion capabilities, and adaptability to harsh conditions, they are significantly influencing the future of these industries.

Gr1 Gr2 Gr9 Slms  Titanium Alloy Pipes Ti Alloy Tubing For Petroleum Industry

Titanium Seamless Pipe of Physical Properties

Grade

Standard

Tensile Strength (psi)

Yield Strength (psi)

Elongation (%)

Thermal Conductivity (W/m·K)

Density (g/cm³)

Hardness (HV)

Grade 1 ASTM B338 35,000 25,000 24 21.9 4.51 120
Grade 2 ASTM B338 50,000 40,000 20 21.9 4.51 150
Grade 5 (Ti-6Al-4V) ASTM B861 130,000 120,000 10 6.7 4.43 334
Grade 7 ASTM B338 50,000 40,000 20 21.9 4.51 150
Grade 9 (Ti-3Al-2.5V) ASTM B861 90,000 70,000 15 7.2 4.48 255

Titanium Seamless Pipe - Grades
Grade
Standard
Chemical Composition
Application Field
Specific Products
Grade 1 ASTM B338 Ti: >99.5%, Fe: <0.2% Chemical Process Heat Exchangers
Grade 2 ASTM B338 Ti: >99%, Fe: 0.3% Petroleum Industry Offshore Drilling Platforms
Grade 5 (Ti-6Al-4V) ASTM B861 Ti: 90%, Al: 6%, V: 4% High Strength Applications Subsea Pipelines
Grade 7 ASTM B338 Ti: >99%, Pd: 0.12-0.25% Corrosive Environments Chemical Reactors
Grade 9 (Ti-3Al-2.5V) ASTM B861 Ti: 94.5%, Al: 3%, V: 2.5% High-pressure systems High-pressure Vessels

Titanium Seamless Pipe - Chemical Properties
Grade
Standard
Titanium (Ti)
Iron (Fe)
Carbon (C)
Nitrogen (N)
Hydrogen (H)
Oxygen (O)
Al
V
Grade 1 ASTM B338 Balance 0.20% max 0.08% max 0.03% max 0.015% max 0.18% max - -
Grade 2 ASTM B338 Balance 0.30% max 0.08% max 0.03% max 0.015% max 0.25% max - -
Grade 5 (Ti-6Al-4V) ASTM B861 Balance 0.30% max 0.08% max 0.05% max 0.015% max 0.20% max 5.5-6.75% 3.5-4.5%
Grade 7 ASTM B338 Balance 0.30% max 0.08% max 0.03% max 0.015% max 0.25% max - -
Grade 9 (Ti-3Al-2.5V) ASTM B861 Balance 0.25% max 0.08% max 0.03% max 0.015% max 0.15% max 2.5-3.5% 2.0-3.0%
