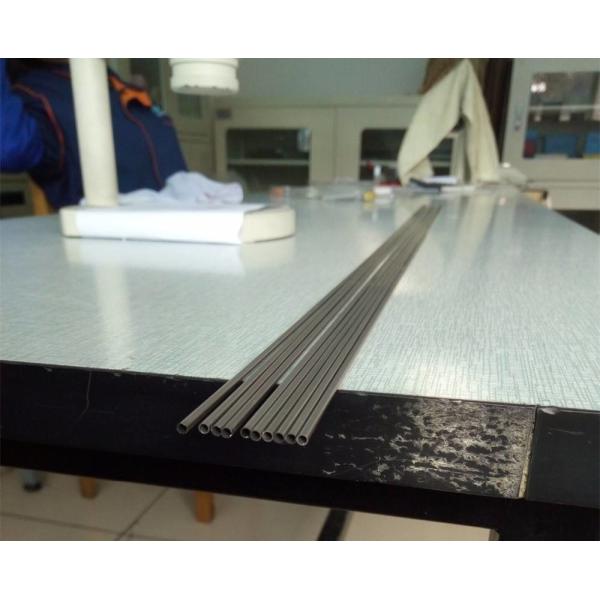

1.4mm To 2.1mm Titanium Seamless Tube Capillary Tube For Medical Gr1 4 5
1.4mm To 2.1mm Titanium Seamless Tube Capillary Tube For Medical Gr1 4 5
Specifications
Brand Name :
BaseTi
Model Number :
PF008
Certification :
CE, FDA-approved
Place of Origin :
China
MOQ :
NO MOQ LIMITATION.
Price :
CONTACT US
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10,000 tons/month
Delivery Time :
15 DAYS
Packaging Details :
External: wooden box packaging; Inside: an inner packing with protective foam;
Production standards :
ASTM F67, ASTM F136, ASTM F1295, ISO 5832
Chemical Composition :
Mainly Ti, alloyed with elements like Al, V, Mo depending on grade
Packaging :
Medical-grade sterilization packaging
Mechanical Properties :
Tensile Strength 240-540 MPa, Yield Strength 170-485 MPa, Elongation 14-30%
Grade :
Grade 1, Grade 4, Grade 5 (Ti-6Al-4V), Grade 7
Tolerance :
±0.05mm for OD, ±0.03mm for ID
Rolling process :
Cold Rolling, Hot Rolling
Surface process :
Pickling, Polishing, Annealing
Description

Diameter 1.4mm~2.1mm Titanium Capillary Pipe Titanium Seamless Tube For Medical Grade 1, Grade 4, Grade 5 (Ti-6Al-4V), Grade 7

Titanium Capillary for Medical Use - Overview

*If you have any requirements for customized titanium seamless capillary for medical, we would be delighted to further discuss the technical specifications with you and provide a quotation.

*Our production capacity is efficient, and our logistics channels are well-developed. We can deliver products via international express to any corner of the globe within 5 to 10 days.

Titanium seamless tubing specifications & parameters
Product name Titanium seamless tube
Application field Surgical implants, stents, dental implants, orthopedic devices
Available size Outer Diameter 0.5-10mm, Inner Diameter 0.2-9.5mm, Length 50-3000mm
Grade Grade 1, Grade 4, Grade 5 (Ti-6Al-4V), Grade 7
Production stadards ASTM F67, ASTM F136, ASTM F1295, ISO 5832
Tolerance ±0.05mm for OD, ±0.03mm for ID
Rolling process Cold Rolling, Hot Rolling
Surface process Pickling, Polishing, Anodizing
Delivery time 13-15days

Titanium Capillary for Medical Use & Solutions

Critical Importance of Titanium Capillary in Advanced Healthcare: A Data-Driven Examination
The significance of Titanium Capillary in the medical domain has escalated in recent years, satisfying the demanding criteria set by healthcare professionals for mechanical robustness, biocompatibility, and dependability. BaseTi's Titanium Capillaries are a technological breakthrough, fulfilling specialized needs across multiple medical disciplines.

  • Exceptional Material Specifications

Boasting an impressive range of material qualities, Titanium Capillary offers a superlative strength-to-weight ratio, superior corrosion resistance, and outstanding biocompatibility. Quantitatively speaking, tensile strength for these capillaries varies between 30,000 and 200,000 psi, contingent upon the grade of titanium chosen.

  • Medical Instruments and Implant Technology

Titanium capillaries serve a critical role in the creation of precision-engineered surgical tools like scalpels and tweezers. A market analysis report from 2020 indicated that the segment of surgical instruments made from titanium reached a valuation of roughly $180 million. These capillaries also enable the manufacturing of key medical components such as cardiovascular stents and orthopedic implants, benefitting from titanium's inherent durability and lightness.

  • Pharmaceutical Delivery Systems

When it comes to state-of-the-art drug administration techniques, Titanium Capillaries lead the field. Their chemical inertness and biocompatibility are advantageous for targeted drug delivery systems, allowing for accurate release rates while reducing the likelihood of systemic medication exposure.

  • Diagnostic Equipment for Blood Analysis

Titanium capillaries are highly valued in blood analysis equipment due to their anti-coagulant attributes, a crucial element in blood diagnostic procedures. Scientific research has demonstrated that titanium-based elements can reduce coagulation factors by 40% during blood tests, compared to alternative materials.

  • Advanced Solutions by BaseTi

Specializing in the crafting of Titanium Capillary for medical applications, BaseTi ensures compliance with international benchmarks like ASTM F67 and ASTM F136. Our products are defined by exceptional dimensional tolerances, as tight as +/- 0.01 mm, rendering them optimal for precision-sensitive medical applications.

In Summary
With forecasts predicting the global medical device sector to balloon to $612.7 billion by 2025, the role of Titanium Capillary as a foundational material for emerging medical technologies is evident. Considering its unmatched tensile strength, superior biocompatibility, and resistance to corrosion, Titanium Capillaries are indisputably transforming the healthcare landscape.

1.4mm To 2.1mm Titanium Seamless Tube Capillary Tube For Medical Gr1 4 5
Chemical Properties of Titanium Capillary for Medical Use
Column Header Explanation Example Data Grade of Titanium

Corresponding Standard
Titanium Composition Percentage of titanium in the alloy 99.5% Grade 1, Grade 4 ASTM F67, ASTM F136
Iron (Fe) Max percentage of iron content 0.2% Grade 1, Grade 4 ASTM F67, ASTM F136
Oxygen (O) Max percentage of oxygen content 0.18% Grade 1 ASTM F67
Carbon (C) Max percentage of carbon content 0.08% Grade 4 ASTM F136
Nitrogen (N) Max percentage of nitrogen content 0.03% Grade 1, Grade 4 ASTM F67, ASTM F136
Hydrogen (H) Max percentage of hydrogen content 0.015% Grade 1, Grade 4 ASTM F67, ASTM F136
Aluminum (Al) Presence and percentage of aluminum (if applicable) 5-6% Grade 5 ASTM F136
Vanadium (V) Presence and percentage of vanadium (if applicable) 3.5-4.5% Grade 5 ASTM F136

Physical Propertise of Titanium Capillary for Medical Use
Column Header

Explanation

 Example Data Grade of Titanium Corresponding Standard
Tensile Strength Measure of how much stress the material can endure before breaking 30,000-200,000 psi Grade 1, Grade 4 ASTM F67, ASTM F136
Elongation Measure of how much the material can be stretched 15-25% Grade 2, Grade 5 ASTM F67, ASTM F136
Density Measure of mass per unit volume 4.51 g/cm³ Grade 1, Grade 4 ASTM F67, ASTM F136
Thermal Conductivity Measure of the material's ability to conduct heat 21.9 W/(m·K) Grade 1, Grade 4 ASTM F67, ASTM F136
Elastic Modulus Measure of the material's stiffness or rigidity 100-110 GPa Grade 2, Grade 5 ASTM F67, ASTM F136
Corrosion Resistance Qualitative measure of how well the material stands up to corrosive environments Excellent Grade 1, Grade 4 ASTM F67, ASTM F136
Biocompatibility Qualitative measure of the material's compatibility with biological systems Excellent Grade 1, Grade 4 ASTM F67, ASTM F136

U.S. and European Grades for Titanium Capillary for Medical Use
Column Header Explanation U.S. Grade European Grade Corresponding U.S. Standard Corresponding European Standard Application Areas Main Products in the Application Area
General Medical General Medical-grade Titanium used for broad applications Gr 1, Gr 4 Ti-3Al-2.5V ASTM F67, ASTM F136 ISO 5832-3 Surgical implants, Orthopedic Dental implants, Hip replacements
High Strength Titanium used for high-stress medical applications Gr 5 (Ti-6Al-4V) Ti-6Al-7Nb ASTM F136 ISO 5832-11 Fracture fixation devices Bone screws, Plates
High Corrosion-Resistance Titanium with high corrosion resistance Gr 7 Ti-15Mo ASTM F1295 ISO 5832-14 Cranial plates Cranial mesh, Skull plates
Biocompatible Highly biocompatible titanium for sensitive applications Gr 9 Ti-13Nb-13Zr ASTM F1713 ISO 5832-9 Spinal fusion Vertebral spacers, Pedicle screws
