Product Description:

Titanium Grade

We are offering various types of titanium grade, covering Gr1, Gr2, Gr5, Gr7 and Gr12.

Size

You can buy the titanium in different sizes, such as 22.5°, 30°, 45°, 90°, 180° or in size from 1/2″ to 48″.

Radius

The Titanium radius are available in different type like : 3D,4D,5D,6D,8D and 10D.

Standard

Our products all comply with the standards of ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A and MSS-SP-43 Type B.

Service

We customize the goods according to your drawing and process.

Connection

The connection of the titanium products is butt-welding.

Packing

The packing of the titanium can be done by plywood pallets/ wooden case or according to your request and specification.

Technique

The technique used for titanium is welded, forged, rolled and seamless.

Inspeciton

The quality assurance includes X-ray detection(RT), surface penetrant inspection(PT), magnetic-particle inspection(MT) and Ultrasonic inspection(UT).

Features:

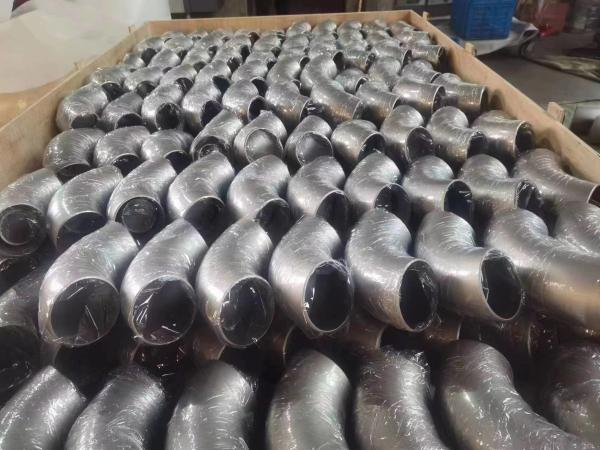

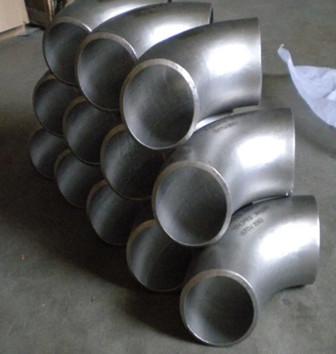

An elbow is a type of pipe fitting that changes the direction of the flow of fluids or gases. These types of fittings are manufactured and tested according to ASME B16.9 standards, ensuring that they can withstand the pressure and temperature requirements of the application in question. The angle of the elbow can come in three different varieties which include 45 degrees, 90 degrees, and 180 degrees. The angle of the elbow is important as it can affect the pressure the fluid has experienced due to the change of direction.

Titanium elbows that meet the ASME B16.9 standard are rigorously tested, to ensure that they are suitable for high-temperature and corrosive environments. This makes titanium elbows the ultimate solution for such environments.

Dimensions of Elbows and Returns

Technical Parameters:

Applications:

Titanium elbows are excellent components for high-pressure applications due to their outstanding strength and lightweight. Depending on their end-use requirements, titanium elbows are available in both seamless and welded constructions. Seamless elbows are most suitable for critical applications as they have a smoother surface and can withstand higher pressure than welded elbows while welded elbows are usually employed in applications with lower pressures and budgetary considerations.

At TSM, we manufacture titanium elbows using a variety of grades. Each grade has its distinct characteristics, and our team will work closely with our clients to determinate the most suitable grade for their application.

Support and Services:

Titanium Bars provides technical support and services for its customers. Our team of experienced and certified technicians is available 24/7 to answer any questions you may have about our products. We offer free technical support for all of our products, as well as premium support packages for our more advanced products. Our team is always willing to go above and beyond to ensure that our customers are satisfied with our products and services.

Our website also offers a comprehensive library of user manuals and documentation, so that customers can get the most out of their products. We also have a community forum where customers can discuss their experiences with Titanium Bars and receive technical advice from other users.
