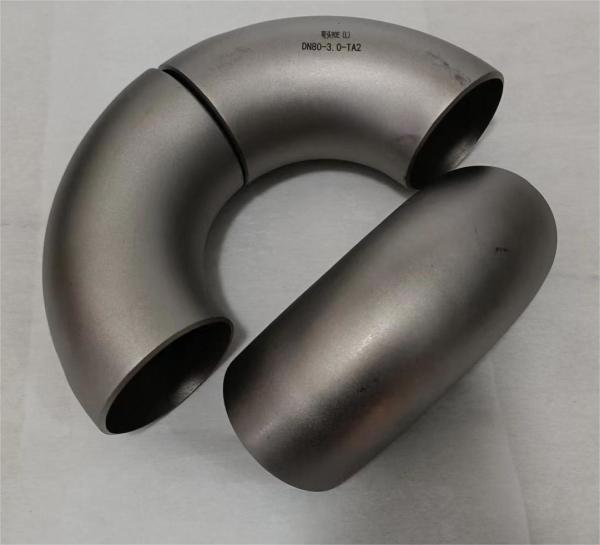

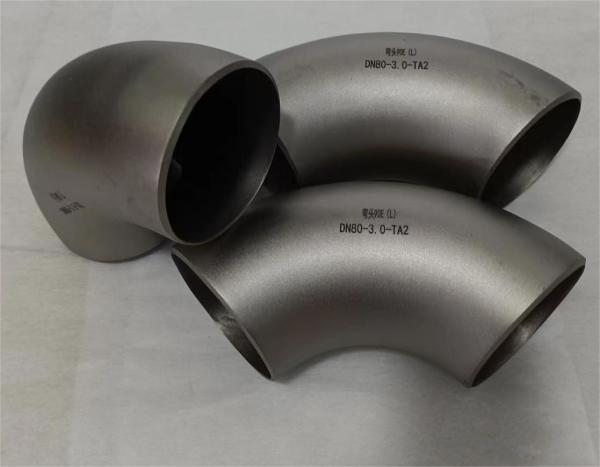

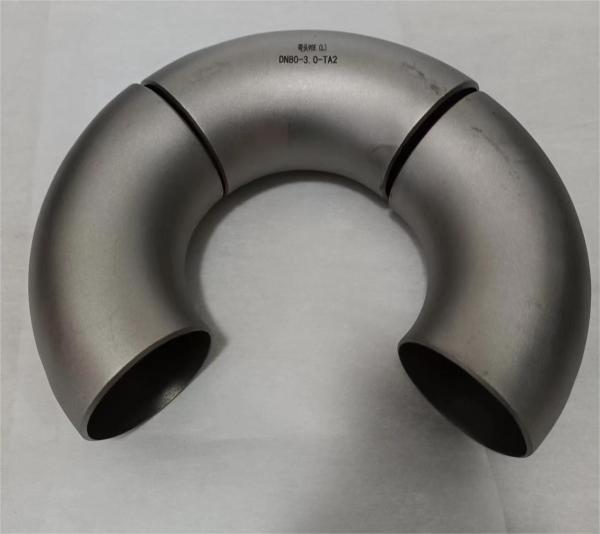

90 Degree Long / Short Radius Titanium Elbow With Grade 1 / 2 / 5 / 7
90 Degree Long / Short Radius Titanium Elbow With Grade 1 / 2 / 5 / 7
90 Degree Long / Short Radius Titanium Elbow With Grade 1 / 2 / 5 / 7
90 Degree Long / Short Radius Titanium Elbow With Grade 1 / 2 / 5 / 7
90 Degree Long / Short Radius Titanium Elbow With Grade 1 / 2 / 5 / 7
90 Degree Long / Short Radius Titanium Elbow With Grade 1 / 2 / 5 / 7
90 Degree Long / Short Radius Titanium Elbow With Grade 1 / 2 / 5 / 7
90 Degree Long / Short Radius Titanium Elbow With Grade 1 / 2 / 5 / 7
Specifications
Brand Name :
FHH
Place of Origin :
Xi'an,China
MOQ :
50pcs
Payment Terms :
L/C, D/P, T/T
Supply Ability :
as your request
Delivery Time :
5--10days
Packaging Details :
All goods are packed in wooded case
Commodity :
90°Elbow
Materials :
Titanium metal or Titanium alloy
Grade :
Gr1,Gr2,Gr3,Gr4,Gr5,Gr6,Gr7,Gr10
Technology :
Forging or drawing and other machinery processing
Standard :
ASTM F67,AMS4928,ASTM F136,ASTM B348，BT1-0,TP270,TP550,TP450 ,DIN etc
Dimension :
DN15-1200（NPS：1/2-36 inches）Thickness 1--18mm
Surface :
polishing, pickling, rolling
Description

Elbow: Elbow is a common standard pipe fitting in pipelines and equipment, divided by bending radius, R=1DN and R=1.5DN two kinds, in order to distinguish 180°, 135°, 90°, 60°, 45°, 30°, etc., its specifications in DN18-DN200 seamless, DN > 200 for the longitudinal weld elbow.

Standard:ASTM B16.9,SH3408,SH3409,HG/T21635,HG/T21631,SY/T05010

Grade:Grade1 Grade2 Grade7 Grade9 Grade12

Thickness:1-18mm(Sch5s to Sch80s)

Technology:Production methods can be divided into pushing, pressing, forging, casting and so on

Dimension:DN15-1200(NPS:1/2-36 inches)

Craft:Seamless extruded or butt-welded elbows, polishing, lathing, pickling, rolling

Feature:Excellent properties in the medium of acid, alkali and salt, especially Cl- corrosion resistance. Corrosion resistance to sewage, scale will not be deposited on the inner surface of pipe fittings,Low density, high strength, light equipment.

Application: Used in petroleum, chemical industry, electric power, metallurgy, chemical fiber, food, pharmaceutical, chlor-alkali, vacuum salt making, fine chemical industry, biological engineering, seawater desalination, ocean engineering and other industries.

Note:Any oreder,Please state your request in details,Such as :Quantity,Dimension(Length,High,thickness,wideth,or fixed length),Materials,Standard etc.

Dimensions of Elbows and Returns

Nominal

Pipe size

DN

O/D

Bevel

D

 Center to End Center to Center Back to Faces
45⁰ Elbows 90⁰ Elbows 180⁰ Elbows
B A P K
Long Radius Long Radius Short Radius Long Radius Long Radius Long Radius Long Radius
1/2 21.3 15.7 38.1 / 76.2 / 47.8 /
3/4 26.7 19.1 38.1 / 76.2 / 50.8 /
1 33.4 22.4 38.1 25.4 76.2 50.8 55.6 41.1
1-1/4 42.2 25.4 47.8 31.8 95.3 63.6 69.9 52.3
1-1/2 48.3 28.4 57.2 38.1 114.3 76.2 82.6 62.0
2 60.3 35.1 76.2 50.8 152.4 101.6 106.4 51.0
2-1/2 70.3 44.5 95.3 63.5 190.5 127.0 131.8 100.1
3 88.9 50.8 114.3 76.2 228.6 152.4 158.8 120.7
3-1/2 101.6 57.2 133.4 88.9 266.7 177.8 184.2 139.7
4 114.3 63.5 152.4 101.6 304.8 203.0 209.6 158.8
5 141.3 79.2 190.5 127.0 381.0 254.0 261.9 196.9
6 168.3 95.3 228.6 152.4 457.2 304.8 312.7 236.5
8 219.1 127.0 304.8 203.2 609.6 406.4 414.3 312.7
10 273.1 158.8 381.0 254.0 762.0 508.0 517.7 390.7
12 323.9 190.5 457.2 304.8 914.4 609.6 619.3 466.9
14 355.6 222.3 533.4 355.6 1066.8 711.2 711.2 533.4
16 406.4 254.0 609.6 406.4 1219.2 812.8 812.8 609.6
20 508.0 317.5 762.0 508.0 1524.0 1016.0 1016.0 762.0
22 558.8 342.9 838.2 558.8 1676.4 1117.6 1117.6 838.2
24 609.6 381.0 914.4 609.6 1828.8 1219.2 1219.2 914.4
