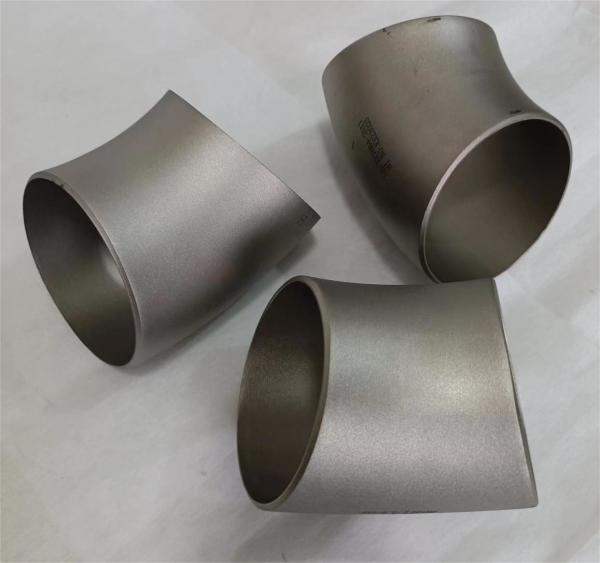

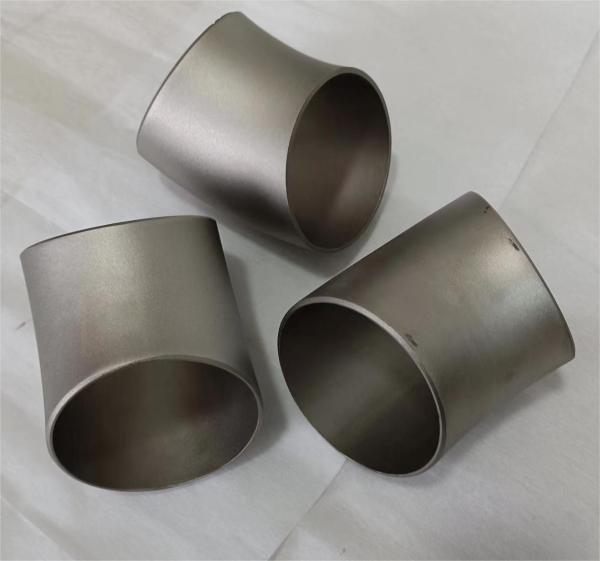

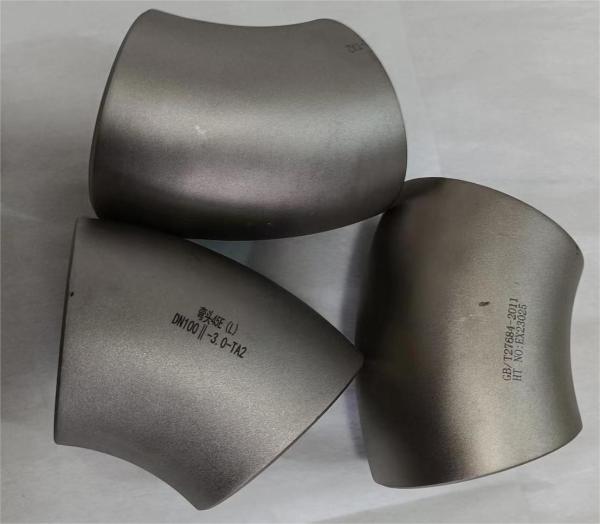

45 Degree Long Radius Titanium Elbow With Gr2 Gr5 Gr7 And ASME B16.9
45 Degree Long Radius Titanium Elbow With Gr2 Gr5 Gr7 And ASME B16.9
45 Degree Long Radius Titanium Elbow With Gr2 Gr5 Gr7 And ASME B16.9
45 Degree Long Radius Titanium Elbow With Gr2 Gr5 Gr7 And ASME B16.9
45 Degree Long Radius Titanium Elbow With Gr2 Gr5 Gr7 And ASME B16.9
45 Degree Long Radius Titanium Elbow With Gr2 Gr5 Gr7 And ASME B16.9
45 Degree Long Radius Titanium Elbow With Gr2 Gr5 Gr7 And ASME B16.9
45 Degree Long Radius Titanium Elbow With Gr2 Gr5 Gr7 And ASME B16.9
Specifications
Brand Name :
FHH
Place of Origin :
Xi'an,China
MOQ :
50pcs
Payment Terms :
L/C, D/P, T/T
Supply Ability :
as your request
Delivery Time :
5--10days
Packaging Details :
All goods are packed in wooded case
Commodity :
45° Elbow
Materials :
Titanium metal or Titanium alloy
Standard :
ASTM F67,AMS4928,ASTM F136,ASTM B348，BT1-0,TP270,TP550,TP450 ,DIN etc
Grade :
Gr1,Gr2,Gr5 ................Gr 20
Technology :
Welded, Forged, Rolled, Seamless
Dimension :
Customized
Description

Titanium Elbow – The Ultimate Solution for High-Temperature and Corrosive Environments

An elbow is a pipe fitting that changes the flow direction of fluids or gases. Titanium elbows are available in different angles, including 45 degrees, 90 degrees, and 180 degrees. The elbow’s angle dictates how much pressure the fluid flow experiences due to the change in direction.

ASME B16.9 is the standard for manufacturing and testing butt-welded fittings. Titanium elbow that meets the ASME B16.9 standard are tested rigorously to ensure they can withstand the pressure and temperature requirements of different applications.

Titanium elbow is available in both seamless and welded construction depending on the end-use requirements. Seamless titanium elbow has a smoother surface and can withstand higher pressures than welded elbow, making it ideal for critical applications. Welded titanium elbow, on the other hand, is commonly used in low-pressure applications where cost is a significant consideration.

Packing: Plywood Pallets/ Wooden Case Or As Per Your Specification.
Technique: Welded, Forged, Rolled, Seamless
Marks and stamp: As per client’s request.
Inspeciton: X-ray detection(RT) Surface penetrant inspection (PT)

Note:Any oreder,Please state your request in details,Such as :Quantity,Dimension(Length,High,thickness,wideth,or fixed length),Materials,Standard etc.
