Polished titanium ball titanium bearing balls titanium sphere Gr5 grade for aerospace
Polished titanium ball titanium bearing balls titanium sphere Gr5 grade for aerospace
Polished titanium ball titanium bearing balls titanium sphere Gr5 grade for aerospace
Polished titanium ball titanium bearing balls titanium sphere Gr5 grade for aerospace
Polished titanium ball titanium bearing balls titanium sphere Gr5 grade for aerospace
Polished titanium ball titanium bearing balls titanium sphere Gr5 grade for aerospace
Specifications
Brand Name :
FHH
Place of Origin :
Xi'an,China
MOQ :
1000kgs
Payment Terms :
L/C, D/P, T/T
Supply Ability :
1000kgs per month
Delivery Time :
5--10days
Packaging Details :
All goods are packed in wooden case ,carton or according to the Buyer'request
Commodity :
Titanium Ball
Materials :
Titanium metal or Titanium alloy
Standard :
GB/T3620-2007, GB/T3621-2007
Surface :
Mirror polishing
Grade :
Gr1,Gr2,Gr5
Titanium ball state :
hot processing, cold processing, annealing
Dimension :
:0.5mm 0.6mm 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm
Type :
Hollow titanium ball /colored titanium ball
Description

polished titanium ball / titanium bearing balls

Grade:Gr1,Gr2,Gr5

Stock:0.5mm 0.6mm 1mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm

Product Type:Hollow titanium ball /colored titanium ball

Size range

Solid ball:Outer diameter 0.5 ~200mm

Hollow ball:Wall thickness 0.2~10mm, Outer diameter 6~200mm

Perforated ball:Outer diameter 5 ~10mm, Hole diameter 1 ~5mm

Tolerance range:

Precision Machining: ±0.005mm

Roughing: ±0.01mmPolished titanium ball titanium bearing balls titanium sphere Gr5 grade for aerospace

Titanium balls of Mesh screen and packaging

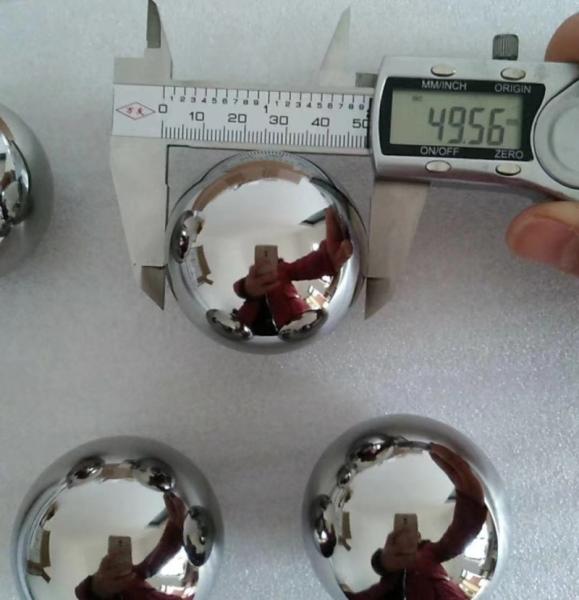

Titanium ball tolerance (+/-0.005mm), mirror, no trachoma, no cracks.

Titanium ball advantages:

Titanium ball state: hot processing, cold processing, annealing

Titanium ball surface: all finished by mirror polishing.

Standard: GB/T3620-2007, GB/T3621-2007

Processing technology:

1 small titanium ball (φ1 ~ 10mm)

Cold heading - light ball - Heat treatment - surface strengthening treatment - hard grinding - preliminary research - flaw detection - finishing 1 - finishing 2

2 Medium titanium ball (φ10 ~ 16mm)

Cold heading - light ball - Heat treatment - surface strengthening treatment - hard grinding - preliminary research - flaw detection - finishing 1 - finishing 2

3 Large titanium ball (φ16 ~ 100mm)

Hot rolling, annealing, polishing ball, heat treatment, surface strengthening treatment, hard grinding, preliminary research, flaw detection, finishing 1, finishing 2

Titanium ball tolerance (+/-0.005mm), mirror, no trachoma, no cracks.

Titanium ball advantages:

It can be passivated, and in an oxygen-containing environment, the passivated film can heal itself after being damaged. Resistant to corrosion, acid and alkali.

.

Titanium ball application fields: industry, cosmetics, jewelry, bearing, aerospace, equipment.

Polished titanium ball titanium bearing balls titanium sphere Gr5 grade for aerospace

Polished titanium ball titanium bearing balls titanium sphere Gr5 grade for aerospace
