2.2kW Power D-50A Pedestal Drilling Machine Vertical Drilling Milling Type for Metal
2.2kW Power D-50A Pedestal Drilling Machine Vertical Drilling Milling Type for Metal
2.2kW Power D-50A Pedestal Drilling Machine Vertical Drilling Milling Type for Metal
2.2kW Power D-50A Pedestal Drilling Machine Vertical Drilling Milling Type for Metal
2.2kW Power D-50A Pedestal Drilling Machine Vertical Drilling Milling Type for Metal
2.2kW Power D-50A Pedestal Drilling Machine Vertical Drilling Milling Type for Metal
Specifications
Condition :
New
type :
Bench Drilling Machine
Max. Drilling Dia. (mm) :
50
Range of Spindle Speed(r.p.m) :
52 - 1400 r.p.m
CNC or Not :
Normal
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
D-50A
Voltage :
As per customer request
Dimension(L*W*H) :
940x680x2405mm
Power (kW) :
2.2
Weight (KG) :
620 KG
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
Viet Nam, Brazil, Indonesia, Romania, South Africa
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Other
After-sales Service Provided :
Engineers available to service machinery overseas
drilling machine color :
Bule and white
Certification :
CE norms, ISO9001
Power :
2.2kw
Weight :
675KG
Max. Drilling dia :
50mm
Machine type :
Vertical Drilling Milling
Warranty period :
1 year
Packaging Details :
Plywood case (fumigated)
Port :
Shanghai Port
Supply Ability :
75 Set/Sets per Month
Price :
$6,200.00/sets 1-2 sets
MOQ :
1 set
Description

Product Description

D-50A Pedestal Drilling Machine for Metal

2.2kW Power D-50A Pedestal Drilling Machine Vertical Drilling Milling Type for Metal

Parameter

Model D-30A D-32A D-35A D-40A D-50A

Max. Drilling dia.(steel)

& taping diameter(mm)

Φ30/M20 Φ32/M20 Φ35/M22 Φ40/M24 Φ50/M27
Max. travel of spindle (mm) 135 150 160 190 200
Throat depth (mm) 260 300 320 340 360
Max. distance from spindle nose to surface of worktable (mm) 670/685 800 585 665 590
Max. distance from spindle nose to surface of base worktable (mm) 1150/1165 1225 1140 1195 1175
Max. travel of spindle box (mm) 180 270
Max. travel of worktable bracket/Manual(Mechanical) (mm) 605/500 550 545 570(450) 530(410)
Swivel angle of worktalbe ±45° ±45° ±45° ±45°
Spindle taper bore (MT) 3 4 4 4 4
Spindle speed steps 12 12 12 12 12
Spindle speed range (r/min) 125-3030 78-2500 125-3030 76-2065 52-1400
Spindle feed steps 3 3 3 4
Spindle feed range (mm/r) 0.1-0.3 0.1-0.3 0.1-0.3 0.1-0.4
Dimension of worktable(mm) 420x350 190 500x420 520x440 580-460
Effective workig area of worktable 335x340 365x415 400x360 405x395 445x435
Diameter of column (mm) Φ110 Φ120 Φ140 Φ160
Power of motor (kw) 0.85/1.1 1/1.3/1.7 1/1.2 1.5 2.2
Machine dimension (mm) 700x465x2060 780x505x1910 835/510x1730 849x545x2290 940x680x2405
Packing dimension (mm) 870x550x2220 880x620x1980 940x570x2120 1000x650x2220 1170x680x2300
Net weight/gross weight (kg) 340/380 420/465 430/475 565/615 620/675

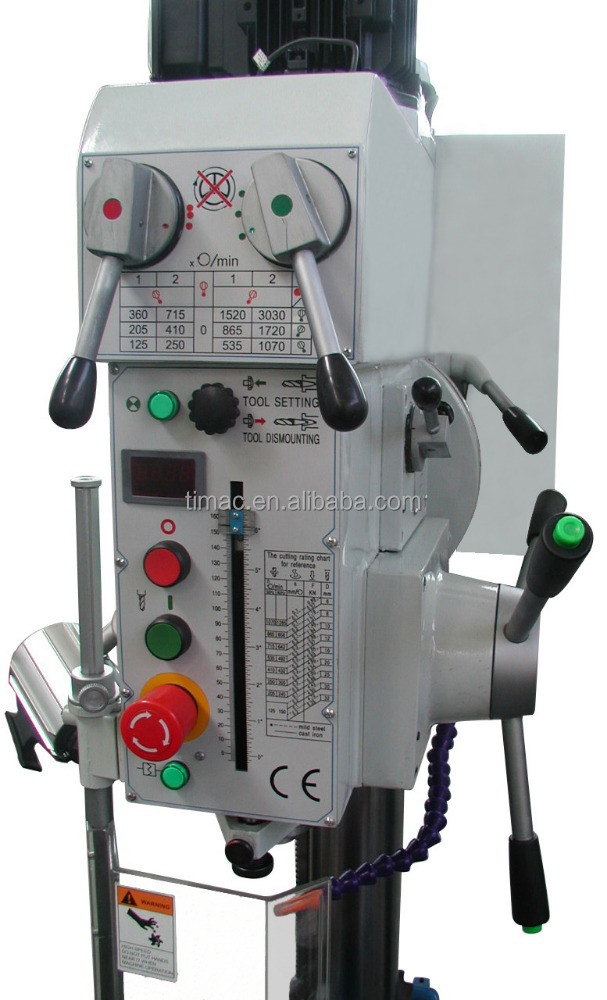

Detailed Images

2.2kW Power D-50A Pedestal Drilling Machine Vertical Drilling Milling Type for Metal 2.2kW Power D-50A Pedestal Drilling Machine Vertical Drilling Milling Type for Metal 2.2kW Power D-50A Pedestal Drilling Machine Vertical Drilling Milling Type for Metal

Z5030A, Z5040A, Z5050A sereis Vertical Drilling Machine

2.2kW Power D-50A Pedestal Drilling Machine Vertical Drilling Milling Type for Metal 2.2kW Power D-50A Pedestal Drilling Machine Vertical Drilling Milling Type for Metal 2.2kW Power D-50A Pedestal Drilling Machine Vertical Drilling Milling Type for Metal

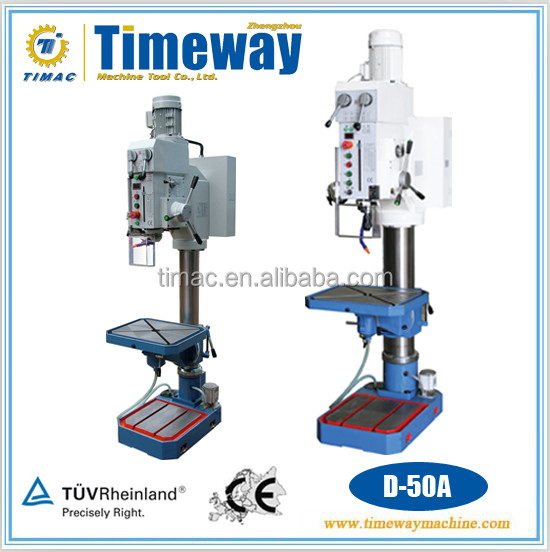

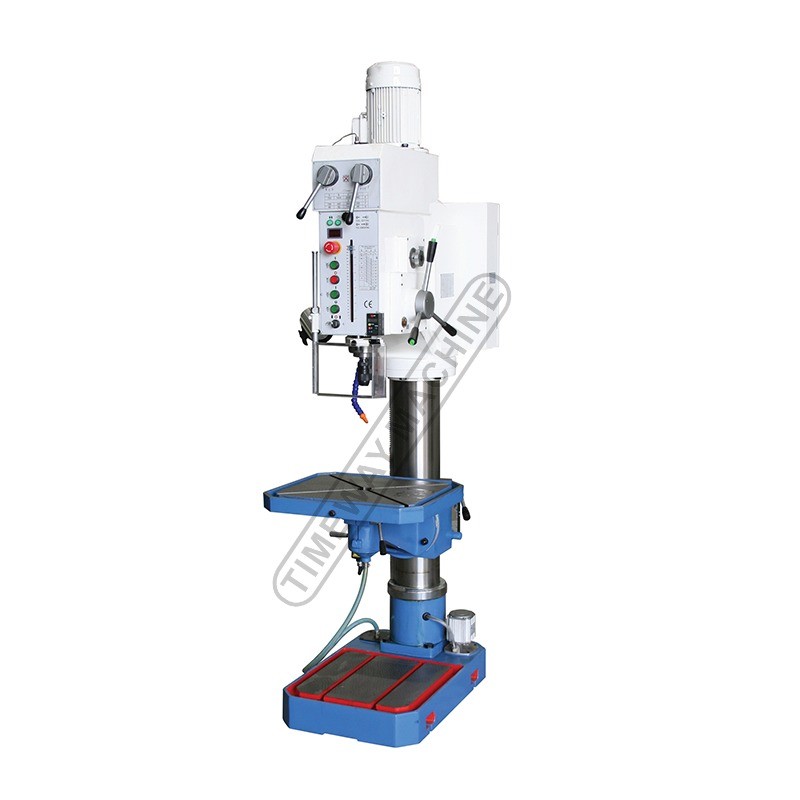

D-30A, D-40A, D-50A sereis Vertical Drilling Machine

Packaging & Shipping

2.2kW Power D-50A Pedestal Drilling Machine Vertical Drilling Milling Type for Metal 2.2kW Power D-50A Pedestal Drilling Machine Vertical Drilling Milling Type for Metal

Package: Plywood case (fumigated)

Packing size:

One piece in one case: 700*1150*2150MM N.W./G.W.: 800/860KG

Container loaded: 16sets / 20'GP
