Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm
Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm
Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm
Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm
Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm
Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm
Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm
Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm
Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm
Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm
Specifications
Condition :
New
type :
Bench Drilling Machine
Max. Drilling Dia. (mm) :
30
Range of Spindle Speed(r.p.m) :
65 - 2600 r.p.m
CNC or Not :
Normal
Place of Origin :
China
Brand Name :
TIMAC TIMEWAY
Model Number :
Z-30A
Voltage :
as require
Dimension(L*W*H) :
940x570x2250mm
Power (kW) :
1.5
Weight (KG) :
440 KG
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
Peru, Thailand, Chile, South Africa, Australia
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor
Product name :
vertical drilling machine
Machine type :
Veritcal
Max. drilling diameter :
30mm
Motor :
1.5kw
Warranty period :
1 year
Keyword :
bench drilling machine industrial
Name :
bench drill machines
Color :
Customizable
key selling point :
competitive price
Key word :
vertical hole drilling machine
Packaging Details :
Wooden case/Plywood case
Port :
China port
Supply Ability :
500 Set/Sets per Month
Price :
$6,000.00/sets >=1 sets
MOQ :
1 set
Description
Product Description

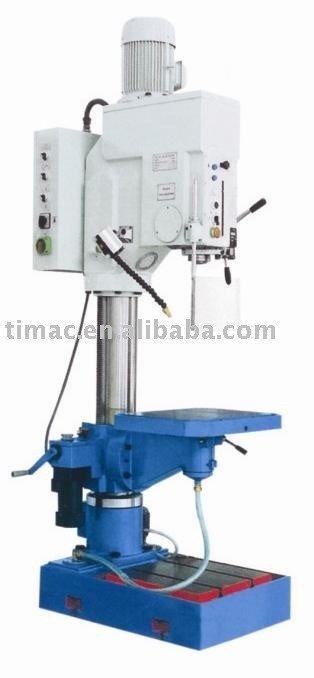

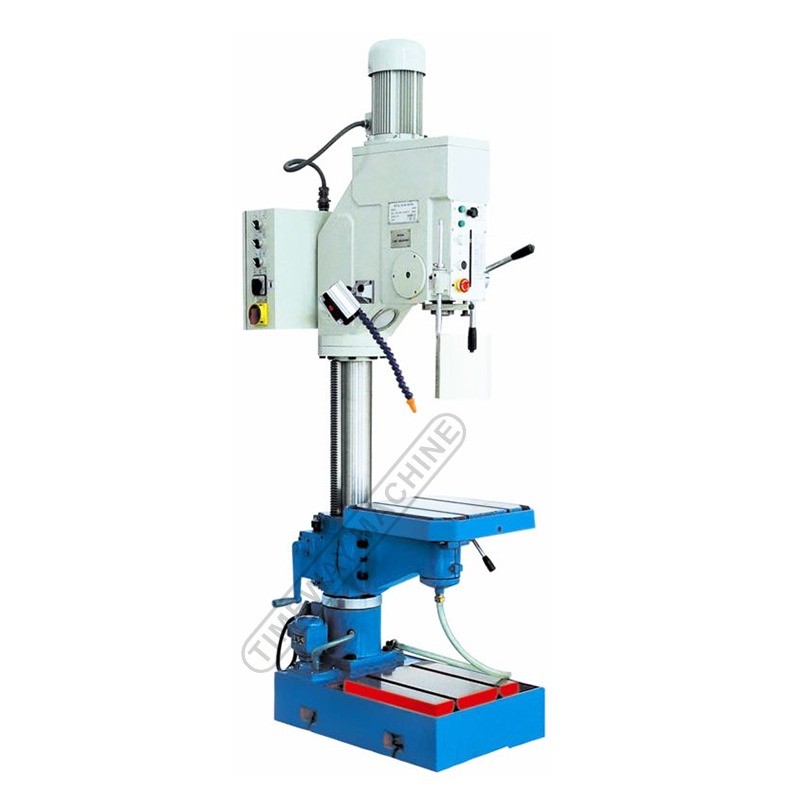

Vertical Drilling Machine
Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm
Specification
Model
Z-30A
ZB-32A
Z-32A
Z-35A
Z-40
Z-50A
Z-50C
Max. Drilling capacity(mm)
30
32
32
35
40
50
50
Max.Tapping capacity(mm)
M20
M20
M20
M24
M27
M30
M30
Diameter of column(mm)
120
120
120
140
160
160
160
Spindle travel(mm)
135
160
160
200
180
240
180
Distance Spindle axis to column(mm)
320
350
350
330
360
360
360
Max.Distance spindle nose to base(mm)
1100
750
1200
1200
1200
1200
1200
Spindle taper
MT3
MT4
MT4
MT4
MT4
MT4
MT4
Spindle speed rang(r/min)
65~2600
65~2600
65~2600
65~2600
42~2050
42~2050
48~1500
Power of Main motor (kW)
1.0/1.5
1.0/1.5
1.0/1.5
1.5/2.2
2.2/2.8
2.2/2.8
2.4/3.0
G.W/N.W (kg)
500/440
470/420
550/500
600/550
750/690
750/690
730/670
Packing dimennsion (cm)
94×57×225
85×55×142
103×61×209
100×61×215
110×67×215
110×67×223
110×67×215
Client feedback
Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm

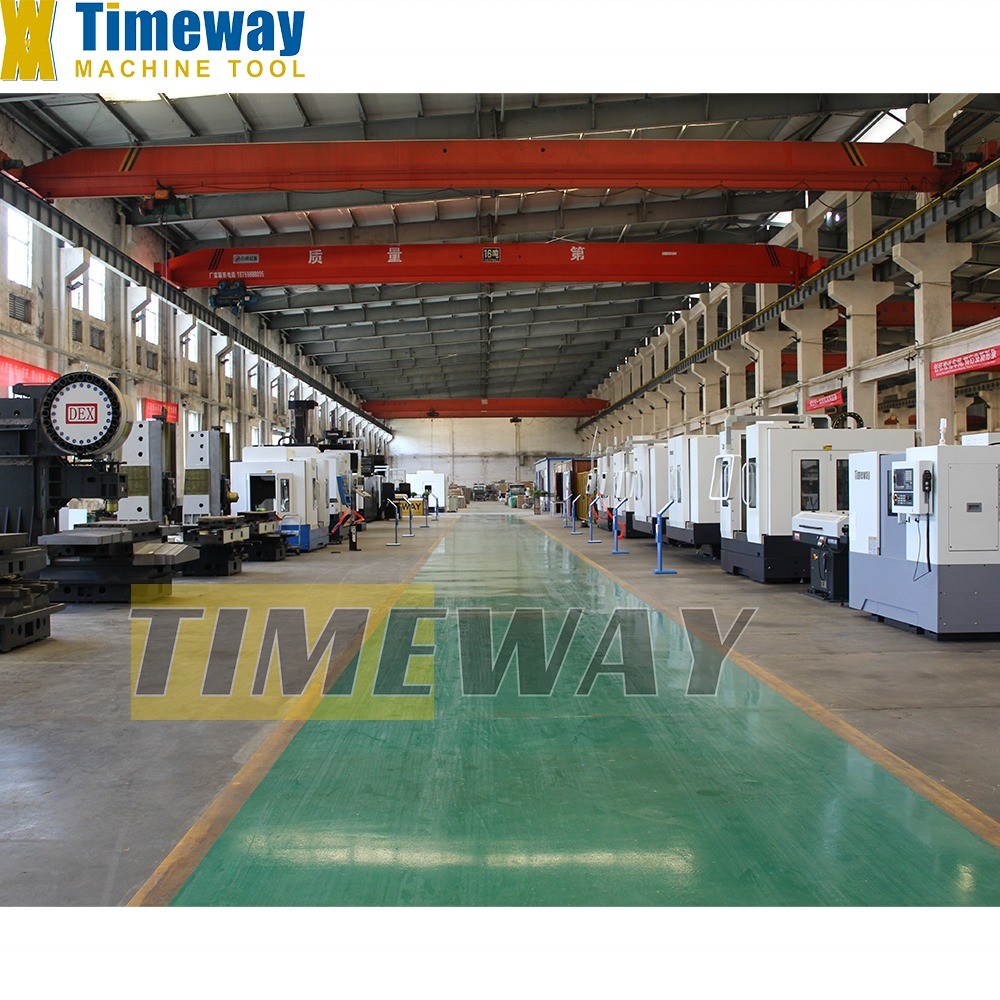

Factory Display：
Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Normal CNC Industrial Bench Drilling Machine Z-30A with Max. Drilling Diameter of 30mm
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
