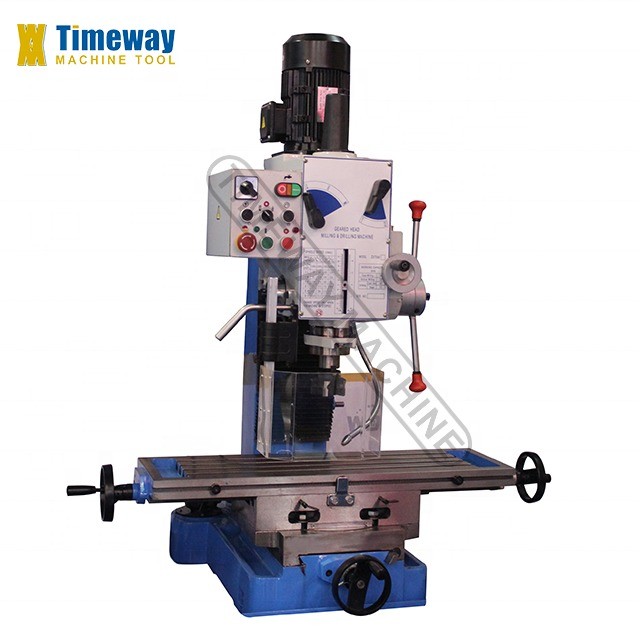

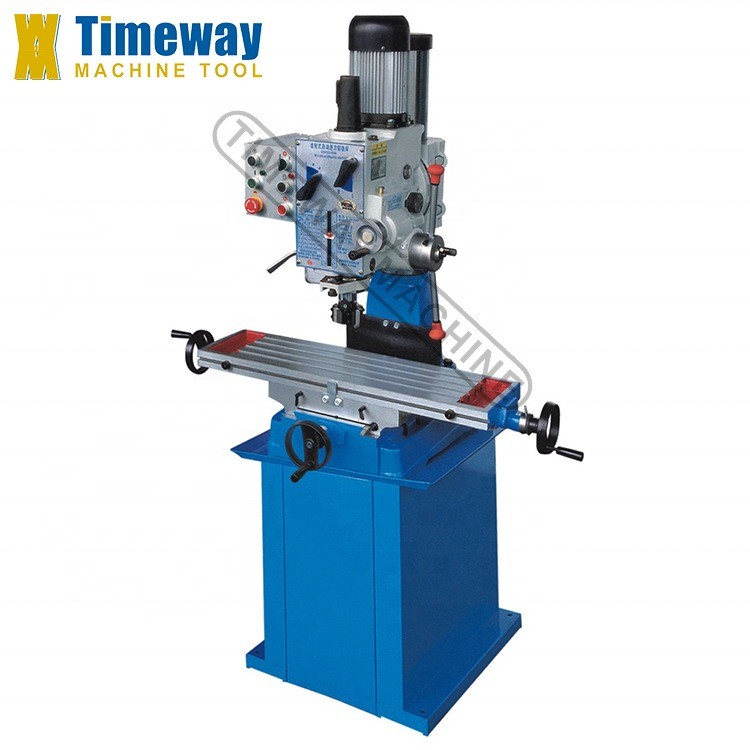

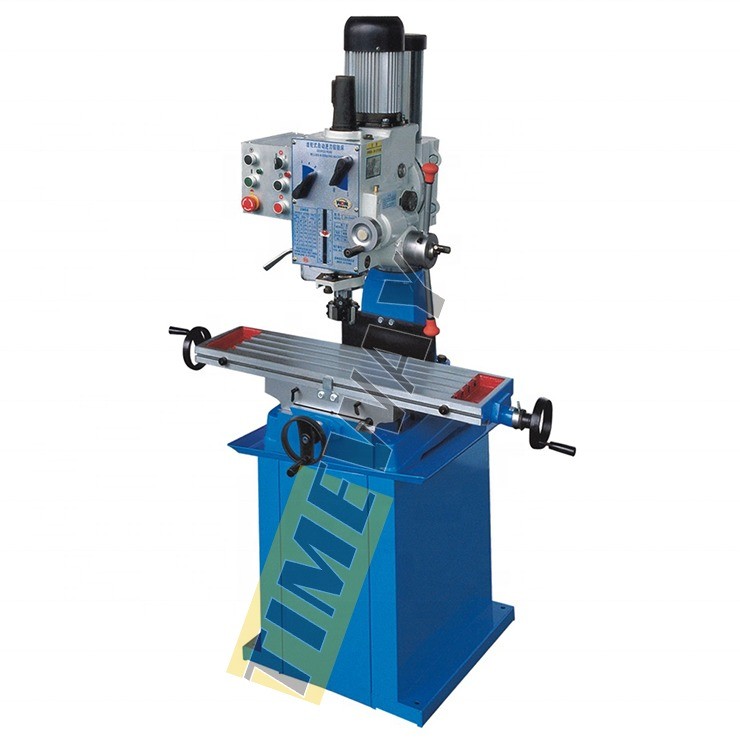

860x780x1910 mm Drilling Milling Machine with Range of Spindle Speed 500 1250 r.p.m
860x780x1910 mm Drilling Milling Machine with Range of Spindle Speed 500 1250 r.p.m
860x780x1910 mm Drilling Milling Machine with Range of Spindle Speed 500 1250 r.p.m
860x780x1910 mm Drilling Milling Machine with Range of Spindle Speed 500 1250 r.p.m
860x780x1910 mm Drilling Milling Machine with Range of Spindle Speed 500 1250 r.p.m
860x780x1910 mm Drilling Milling Machine with Range of Spindle Speed 500 1250 r.p.m
Specifications
Condition :
New
type :
Drilling & Milling Machine
Max. Drilling Dia. (mm) :
40
Range of Spindle Speed(r.p.m) :
500 - 1250 r.p.m
CNC or Not :
Normal
Place of Origin :
Henan, China
Brand Name :
TIMAC
Model Number :
MD-40B, MD-40B1
Voltage :
As per customer request
Dimension(L*W*H) :
860x780x1910 mm
Power (kW) :
1.1
Weight (KG) :
375 KG
Warranty :
1 Year
Key Selling Points :
High Productivity
Showroom Location :
Canada, United States, Italy, Germany, Mexico, Spain, South Africa, Australia
Applicable Industries :
Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Engine
After-sales Service Provided :
Engineers available to service machinery overseas
drilling machine :
Bule and white
Max.facing mill capacity :
80mm
Diameter of vertical milling :
22mm
Worktable size :
585x190 mm
Machine type :
Veritcal
Maximum drilling diameter :
Iron 40/Steel 32
Packaging Details :
Plywood case (fumigated)
Port :
Shanghai Port
Supply Ability :
75 Set/Sets per Month
Price :
$3,950.00/sets 1-4 sets
MOQ :
1 set
Description
Products Description

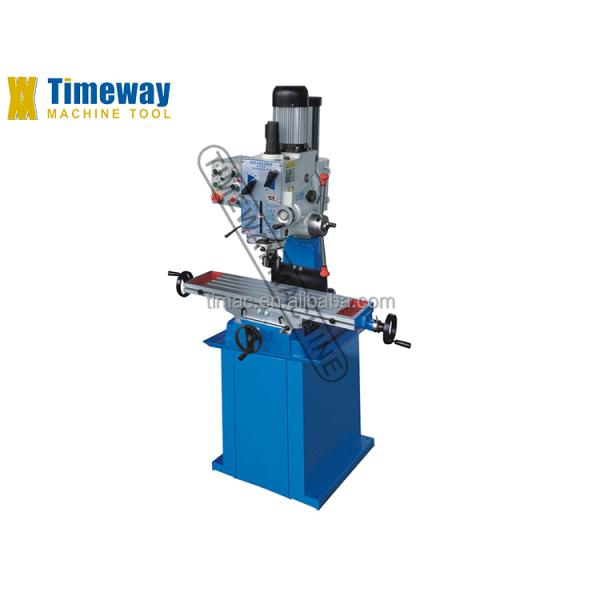

860x780x1910 mm Drilling Milling Machine with Range of Spindle Speed 500 1250 r.p.m
Features:
Gear hardened;large driven torque;B1 type optional 2-speed motor ;wide spindle range
860x780x1910 mm Drilling Milling Machine with Range of Spindle Speed 500 1250 r.p.m
860x780x1910 mm Drilling Milling Machine with Range of Spindle Speed 500 1250 r.p.m
Specification
unit
MD-40B/MD-40B1
Spindle taper
MT4 or R8
Spindle speeds range
r/min
50~1250/50~2500
Spindle speeds series
6/12
Spindle feeds
mm/r
0.12,0.18,0.25
Dimension of worktable surface
mm
730×210 or 820×240
Table travel
mm
450×170 or 540×170
Dimension of base
mm
605×400
Overall height
mm
1100
Main motor
w
1100/1100,1500
Coolant motor
w
40
G.W/N.W
kg
390/350
Why Choose Us
860x780x1910 mm Drilling Milling Machine with Range of Spindle Speed 500 1250 r.p.m
860x780x1910 mm Drilling Milling Machine with Range of Spindle Speed 500 1250 r.p.m
860x780x1910 mm Drilling Milling Machine with Range of Spindle Speed 500 1250 r.p.m
860x780x1910 mm Drilling Milling Machine with Range of Spindle Speed 500 1250 r.p.m
860x780x1910 mm Drilling Milling Machine with Range of Spindle Speed 500 1250 r.p.m
860x780x1910 mm Drilling Milling Machine with Range of Spindle Speed 500 1250 r.p.m
860x780x1910 mm Drilling Milling Machine with Range of Spindle Speed 500 1250 r.p.m
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
