Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System
Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System
Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System
Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System
Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System
Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System
Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System
Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System
Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System
Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System
Specifications
Condition :
New
type :
Column Drilling Machine
Max. Drilling Dia. (mm) :
32
Range of Spindle Speed(r.p.m) :
70 - 3200 r.p.m
CNC or Not :
Normal
Place of Origin :
Henan, China
Brand Name :
TIMAC TIMEWAY
Model Number :
ZX32H
Voltage :
220/380V
Dimension(L*W*H) :
880x750x1700mm
Power (kW) :
1.1
Weight (KG) :
340 KG
Warranty :
1 Year
Key Selling Points :
Energy saving
Showroom Location :
Indonesia, Chile, Romania
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Pump, Gear, Motor
Column Drill Press :
drilling machine
Max. drilling diameter :
32mm
Type :
Column Drill Press
Worktable travel :
370mmX190mmX120mm
Coolant system :
0.4KW
Head swivel range :
±45°
Max. distance spindle nose to worktable :
610mm
Diameter of column :
115mm
Max. diatance spindle nose to base :
1180mm
Thread cutting in steel/ST37 :
M16
Packaging Details :
WOODEN CASE
Port :
China Port
Supply Ability :
500 Set/Sets per Month .
MOQ :
1 set
Price :
$3,500.00/sets 3-4 sets
Description
Product Description

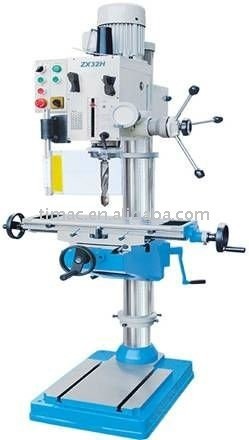

Column Drill Press
Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System

Feature

1. Milling, drilling, tapping, boring, reaming;
2. Head swivels 360°;
3. Worktable up & down perpendicularly;
4. Super high column;
5. Micro feed precision;
6. Heavy-duty tapered roler bearing spindle;
7. Positive spindle lock;
8. Adjustable gibs on table;
9. Geared drive, lower noise.
Specification
Specifications
ZX32H
Worktable travel
X: 370mm, Y: 190mm, Z: 120mm
Dimension of worktable
710x210mm
Table load capacity
100kg
T-slots(number/width/spacing)
3x12x50mm
T-slot foot(number/width/spacing)
2x14x200mm
Spindle speeds
75~3200(12)rpm
Spindle taper
MT4
Quill stroke
120mm
Throat
270mm
Drilling capacity in steel/ST37
32mm
Main motor rating
1.1kw
Coolant system
0.4kw
Overall dimensions(LxWxH)
880x750x1700mm
Weight
340kg

Standard Accessories:

Draw bar; Drill chuck; Tool-holder bits; Coolant system; Operator manual;
Client feedback
Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System

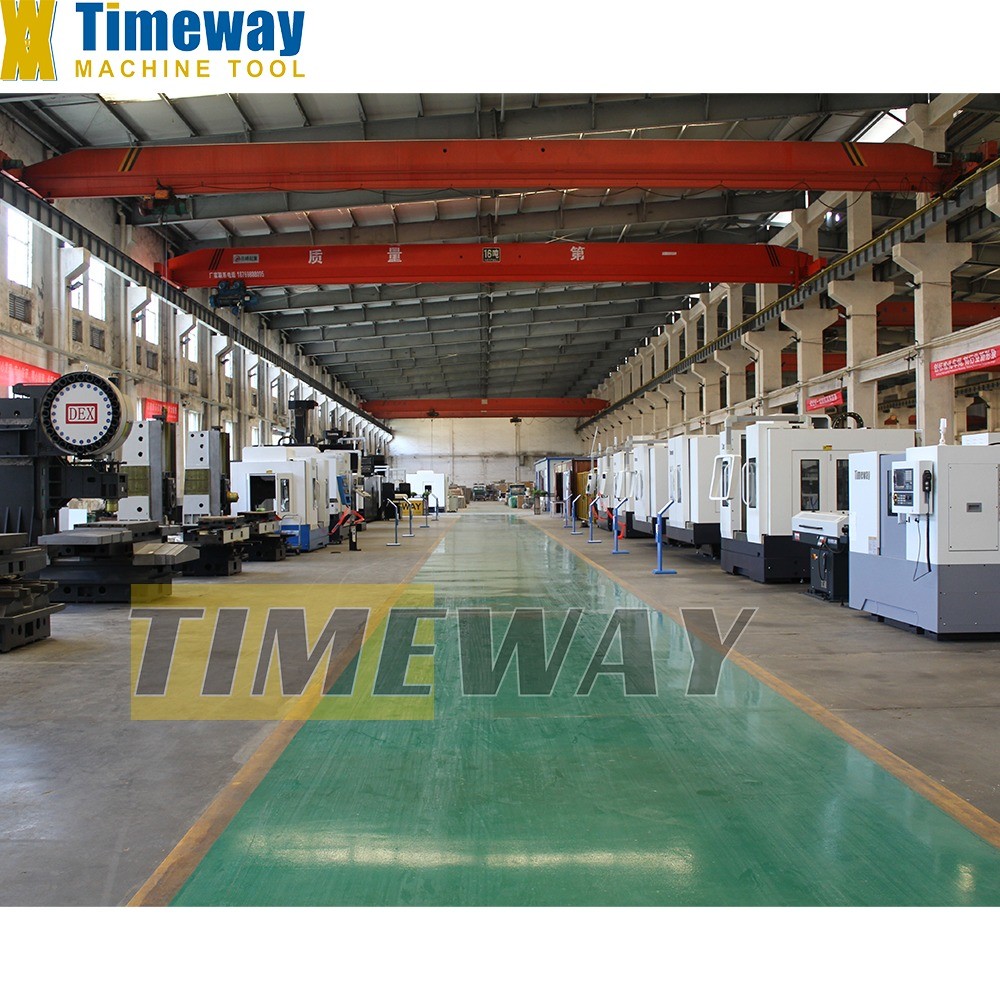

Factory Display：
Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
