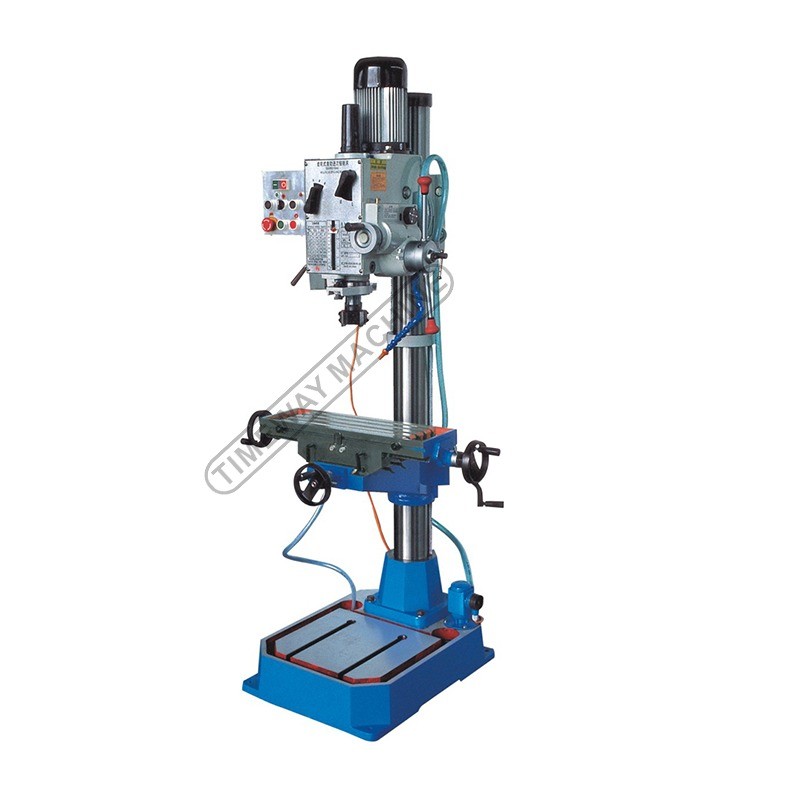

50-1250 r.p.m Auto-Feeding Drilling Milling Machine with 820x240mm Worktable Surface
50-1250 r.p.m Auto-Feeding Drilling Milling Machine with 820x240mm Worktable Surface
Specifications
Condition :
New
type :
Drilling & Milling Machine
Max. Drilling Dia. (mm) :
45
Range of Spindle Speed(r.p.m) :
50 - 1250 r.p.m
CNC or Not :
Normal
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
TRAPANO-1 TRAPANO-2 TRAPANO-3 TRAPANO-4 TRAPANO-5
Voltage :
220V or other
Dimension(L*W*H) :
97x77x116mm
Power (kW) :
1.1
Weight (KG) :
385 KG
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
Peru, Indonesia, Russia, South Africa, Malaysia
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Other
Product name :
Auto-feeding Drilling Milling Machine
Max.Drilling capacity :
45mm
Spindle travel :
110mm
Dimension of worktable surface :
820x240mm
Machine type :
Small Milling Drilling Machine
Warranty period :
1 year
Packaging Details :
Wooden case(can be fumigated)
Port :
China port
Supply Ability :
800 Set/Sets per Month
Price :
$3,500.00/sets 1-2 sets
MOQ :
1 set
Description

Auto-feeding Drilling/Milling Machine

50-1250 r.p.m Auto-Feeding Drilling Milling Machine with 820x240mm Worktable Surface

1. Auto-feeding
2. Precision and stable
3. Widely used drilling machine

Model TRAPANO-1 TRAPANO-2 TRAPANO-3 TRAPANO-4 TRAPANO-5
Max.Drilling capacity (mm) 40 40 40 40 45
Width of facing milling (mm) / 80 / 80 80
Diameter of facing milling (mm) / 22 / 22 28
Diameter of column (mm) 115 115 115 115 /
Spindle travel (mm) 110 110 110 110 110
Distance spindle axis to column generating line (mm) 261.5 261.5 261.5 261.5 260
Max.Distance spindle nose to table (mm) / 450 745 745 475
Max.Distance spindle nose to base (mm) 800 / 1245 1245 /
Spindle taper MT4/R8 MT4/R8 MT4/R8 MT4/R8 MT4
Spindle speeds range 50-1250 50-1250 50-1250 50-1250 50-1250
Spindle speeds series (r/min) 6 6 6 6 6
Spindle feeds (mm/r) 0.12, 0.18, 0.25 0.12, 0.18, 0.25 0.12, 0.18, 0.25 0.12, 0.18, 0.25 0.12, 0.18, 0.25
Dimension of worktable surface / 730×210 or 820×240 540×470 585×190 730×210 or 820×240
Table travel (mm) / 450×170 or 540×170 515 370×140×515 450×170 or 540×170
Dimension of base (mm) 690×520 605×400 690×520 690×520 605×558
Overall height (mm) 1450 1100 1760 1810 1100
Main motor (W) 750 or 1100 750 or 1100 750 or 1100 750 or 1100 750 or 1100
Coolant motor (W) 40 40 40 40 40
G.W/N.W (kg) 360/320 370/330 390/350 390/350 385/345
Packing dimension (cm) 75×73×146 86×74×116 or 97×77×116 72×74×191 72×74×191 86×74×116 or 97×77×116
