Bench Drilling Milling Machine The Ultimate Tool for Metalworking Professionals
Bench Drilling Milling Machine The Ultimate Tool for Metalworking Professionals
Bench Drilling Milling Machine The Ultimate Tool for Metalworking Professionals
Bench Drilling Milling Machine The Ultimate Tool for Metalworking Professionals
Specifications
Condition :
New
type :
Drilling & Milling Machine
Max. Drilling Dia. (mm) :
32
Range of Spindle Speed(r.p.m) :
95 - 1420 r.p.m
CNC or Not :
Normal
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
ZY-20G ZY-32G
Voltage :
as require
Dimension(L*W*H) :
680x750x1000mm
Power (kW) :
0.37
Weight (KG) :
130 KG
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
Russia, Thailand, South Africa, Malaysia
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor
Machine type :
Bench Drilling Milling Machine
Max. drilling diameter :
32mm
Spindle travel :
130mm
Motor power :
0.75KW
Warranty period :
1year
Packaging Details :
Wooden case(can be fumigated)
Port :
China port
Supply Ability :
500 Set/Sets per Month
Price :
$4,500.00/quarters 1-2 quarters
MOQ :
1 set
Description

Drilling milling machine

Bench Drilling Milling Machine The Ultimate Tool for Metalworking ProfessionalsBench Drilling Milling Machine The Ultimate Tool for Metalworking Professionals

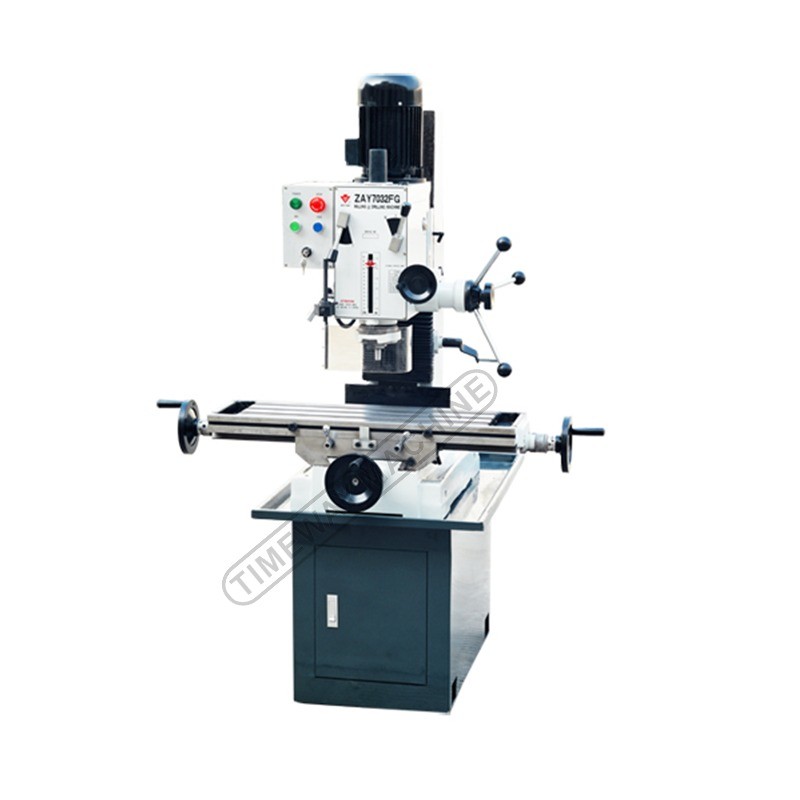

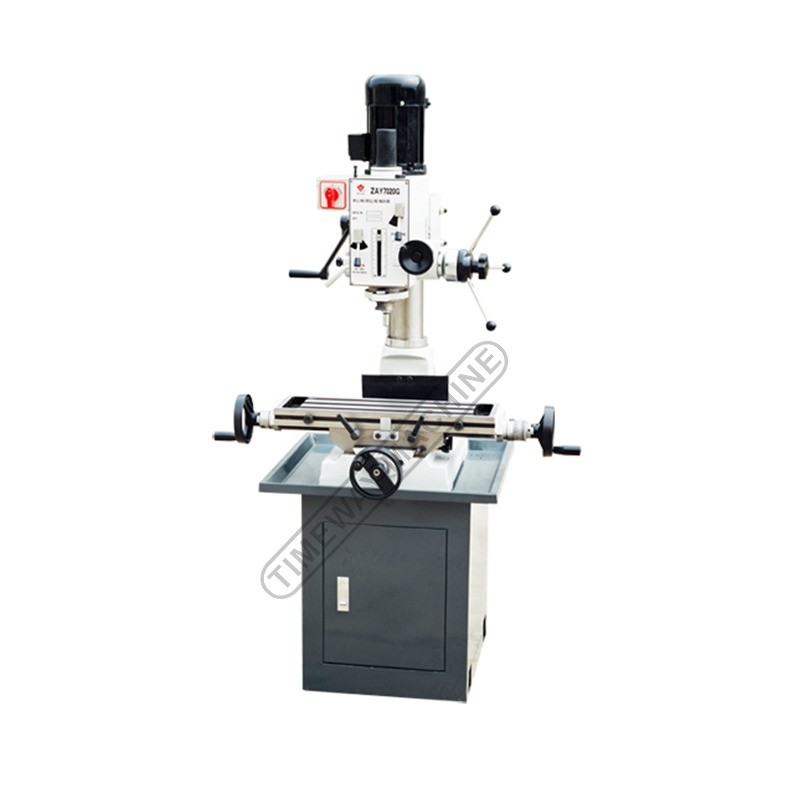

Round column or square column drilling milling machine

Model ZY-20G ZY-25FG ZY-32G ZY-32FG ZY-40G ZY-40FG ZY-45G ZY-45FG
Drilling capacity 20mm 25mm 32mm 32mm 40mm 40mm 45mm 45mm
Face milling capacity 63mm 63mm 63mm 63mm 80mm 80mm 80mm 80mm
End milling capacity 20mm 20mm 20mm 20mm 32mm 32mm 32mm 32mm
Distance from spindle nose to table 439mm 445mm 440mm 450mm 440mm 450mm 440mm 450mm
Min.distance from spindle axis to column 197.5mm 203mm 272.5mm 260mm 272.5mm 260mm 272.5mm 260mm
Spindle travel 85mm 85mm 130mm 130mm 130mm 130mm 130mm 130mm
Spindle taper M.T.3 or R8 M.T.3 or R8 M.T.3 or R8 M.T.3 or R8 M.T.4 or R8 M.T.4 or R8 M.T.4 or R8 M.T.4 or R8
Step of spindle speed 6 6 6 6 6 6 6 6
Range of spindle speed 50Hz 95-1420 r.p.m 95-1420 r.p.m 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m
60Hz 115-1700 r.p.m 115-1700 r.p.m 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m
Swivel angle of headstock (horizontally / perpendicularly) 360°/±90° 90° 360°/±90° 90° 360°/±90° 90° 360°/±90° 90°
Table size 520×160mm 520×160mm 800×240mm 800×240mm 800×240mm 800×240mm 800×240mm 800×240mm
Forward and backward travel of table 140mm 140mm 175mm 175mm 175mm 175mm 175mm 175mm
Left and right travel of table 290mm 290mm 500mm 500mm 500mm 500mm 500mm 500mm
Motor power 0.37KW 0.37KW 0.75KW(1HP) 0.75KW(1HP) 1.1KW(1.5HP) 1.1KW(1.5HP) 1.5KW(2HP) 1.5KW(2HP)
Net weight/gross weight 130kg/190kg 180kg/240kg 315kg/365kg 320kg/370kg 318kg/368kg 323kg/373kg 320kg/370kg 325kg/375kg
Packing size 680×750×1000mm 680×750×1000mm 770×880×1160mm 770×880×1160mm 770×880×1160mm 770×880×1160mm 770×880×1160mm 770×880×1160mm

Why Choose Us
Why choose TIMEWAY MACHINE?

1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving.
