D-35A/D-50A Vertical Drilling Machine for Metal Max. Drilling dia. 50mm Power kW 2.2
D-35A/D-50A Vertical Drilling Machine for Metal Max. Drilling dia. 50mm Power kW 2.2
D-35A/D-50A Vertical Drilling Machine for Metal Max. Drilling dia. 50mm Power kW 2.2
D-35A/D-50A Vertical Drilling Machine for Metal Max. Drilling dia. 50mm Power kW 2.2
Specifications
Condition :
New
type :
Column Drilling Machine
Max. Drilling Dia. (mm) :
50
Range of Spindle Speed(r.p.m) :
52 - 1400 r.p.m
CNC or Not :
Normal
Place of Origin :
China
Brand Name :
TIMAC TIMEWAY
Model Number :
D-35A D-40A D-50A
Voltage :
as require
Dimension(L*W*H) :
940x680x2405mm
Power (kW) :
2.2
Weight (KG) :
620 KG
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
Brazil, Peru, Romania, South Africa, Malaysia, Australia
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Other
Product name :
vertical drilling machine
Machine type :
Vertical Drilling Milling
Max. Drilling dia. :
50mm
Warranty period :
1 year
Dimension of worktable :
580x460mm
Keyword :
Column drilling machine
Packaging Details :
Wooden case, plywood case
Port :
China port
Supply Ability :
500 Set/Sets per Month
MOQ :
1 set
Price :
$3,200.00/sets 3-4 sets
Description

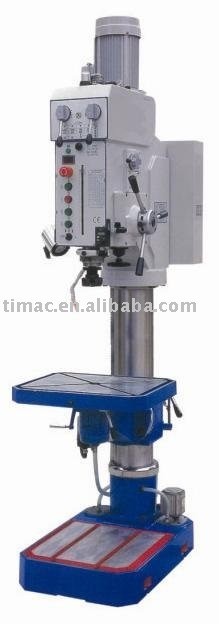

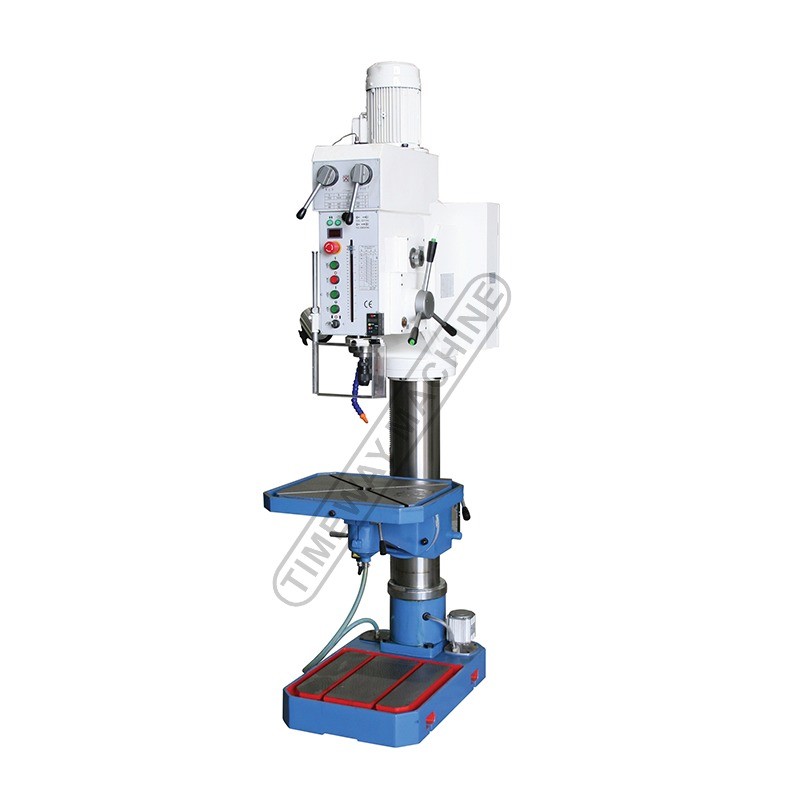

Column Vertical Drilling Machine D-50A

D-35A/D-50A Vertical Drilling Machine for Metal Max. Drilling dia. 50mm Power kW 2.2

Model D-25 D-30/D-30A D-32A D-32 D-35/D-35A D-40A D-50A
Max. Drilling dia.(steel) and taping dia.(mm) Φ25/M16 Φ30/M20 Φ32/M22 Φ32/M20 Φ35/M22 Φ40/M24 Φ50/M27
Max. travel of spindle (mm) 110 135 160 150 160 190 200
Max. distance from spindle to generating line of column (mm) 240 260 320 300 320 340 360
Max. distance from spindle nose to surface of worktable (mm) 630 670/685 630 800 585 665 590
Max. distance from spindle nose to surface of base worktable (mm) 1100 1150/1165 1185 1225 1140 1195 1175
Max. travel of spindle box (mm) 250 180 285 270
Max. travel of worktable bracket/Manual(Mechanical) (mm) 450 605/500 415 550 545 570(450) 530(410)
Swivel angle of worktalbe ±45° ±45° ±45° ±45° ±45°
Spindle taper bore (MT) 3 3 4 4 4 4 4
Spindle speed steps 6 12 12 12 12 12 12
Spindle speed range (r/min) 125-2825 125-3030 125-3030 78-2500 125-3030 76-2065 52-1400
Spindle feed steps 3 3 3 3 4
Spindle feed range (mm/r) 0.1-0.3 0.1-0.3 0.1-0.3 0.1-0.3 0.1-0.4
Dimension of worktable(mm) 350x400 420x350 500x420 190 500x420 520x440 580x460
Effective workig area of worktable 310x320 335x340 400x360 365x415 400x360 405x395 445x435
Diameter of column (mm) Φ95 Φ110 Φ120 Φ120 Φ140 Φ160
Power of motor (kw) 0.75 0.85/1.1 1/1.2 1/1.3/1.7 1/1.2 1.5 2.2
Machine dimension (mm) 700x500x1900 700x465x2060 835x500x1960 780x505x1910 835/510x1730 849x545x2290 940x680x2405
Packing dimension (mm) 830x530x1950 870x550x2220 960x580x2080 880x620x1980 940x570x2120 1000x650x2220 1170x680x2300
Net weight/gross weight (kg) 300/350 340/380 500/555 420/465 430/475 565/615 620/675

Why Choose Us
Why choose TIMEWAY MACHINE?

1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving.
