50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
Specifications
Condition :
New
type :
Drilling & Milling Machine
Max. Drilling Dia. (mm) :
50
Range of Spindle Speed(r.p.m) :
52 - 1400 r.p.m
CNC or Not :
Normal
Place of Origin :
Henan, China
Brand Name :
TIMAC
Model Number :
D-50A
Voltage :
As per customer request
Dimension(L*W*H) :
940x680x2405mm
Power (kW) :
2.2
Weight (KG) :
675 KG
Warranty :
1 Year
Key Selling Points :
High Productivity
Showroom Location :
Canada, United States, Italy, Germany, Brazil, India, Mexico, Spain, Thailand, South Africa, Australia
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Other
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Pump, Gear, Motor, Gearbox, Engine, Other
Type :
Drilling machine
Max. Drilling dia. & taping dia. :
50/M27 mm
Max. travel of spindle (mm) :
200 mm
Throat depth (mm) :
360 mm
Max. travel of spindle box (mm) :
270 mm
Spindle feed range (mm/r) :
0.1-0.4 r/min
Spindle feed steps :
4
Spindle speed range (r/min) :
52-1400 r/min
Spindle speed steps :
12
Diameter of column (mm) :
160 mm
Packaging Details :
Wooden case(can be fumigated)
Port :
China Port
Supply Ability :
300 Set/Sets per Month
Price :
$5,000.00/sets 1-4 sets
MOQ :
1 set
Description
Products Description

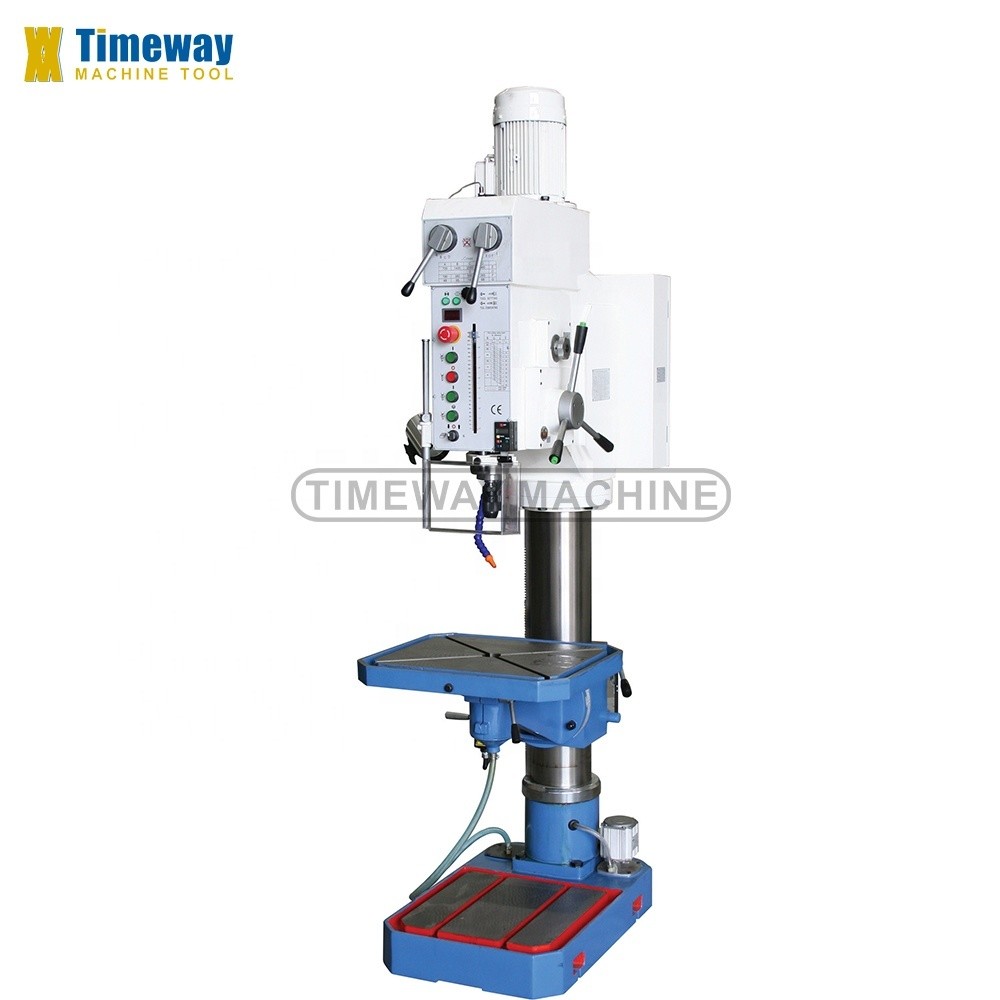

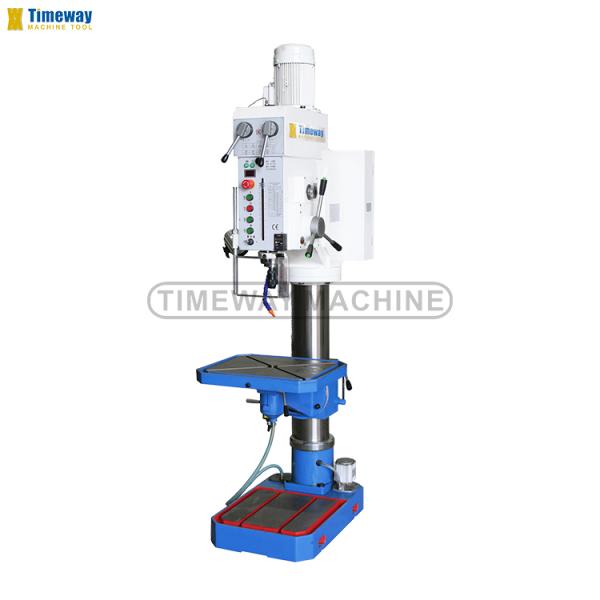

50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
* Superior quality of gears with hardened and lapped gears of surface.

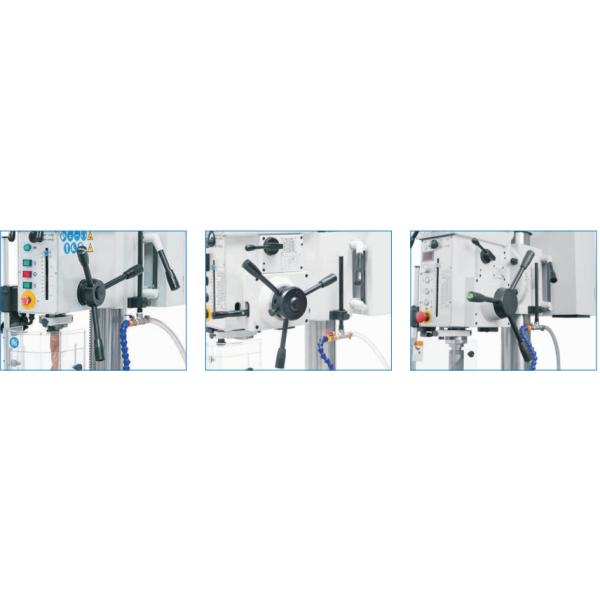

* Gear shift, realize multiple steps spindle speed for various machining needs.
* Thin oil lubrication is available for drilling diameter 40mm and 50mm, grease lubrication is available for others.
* 220v-575v with 3-phase collocation is available.

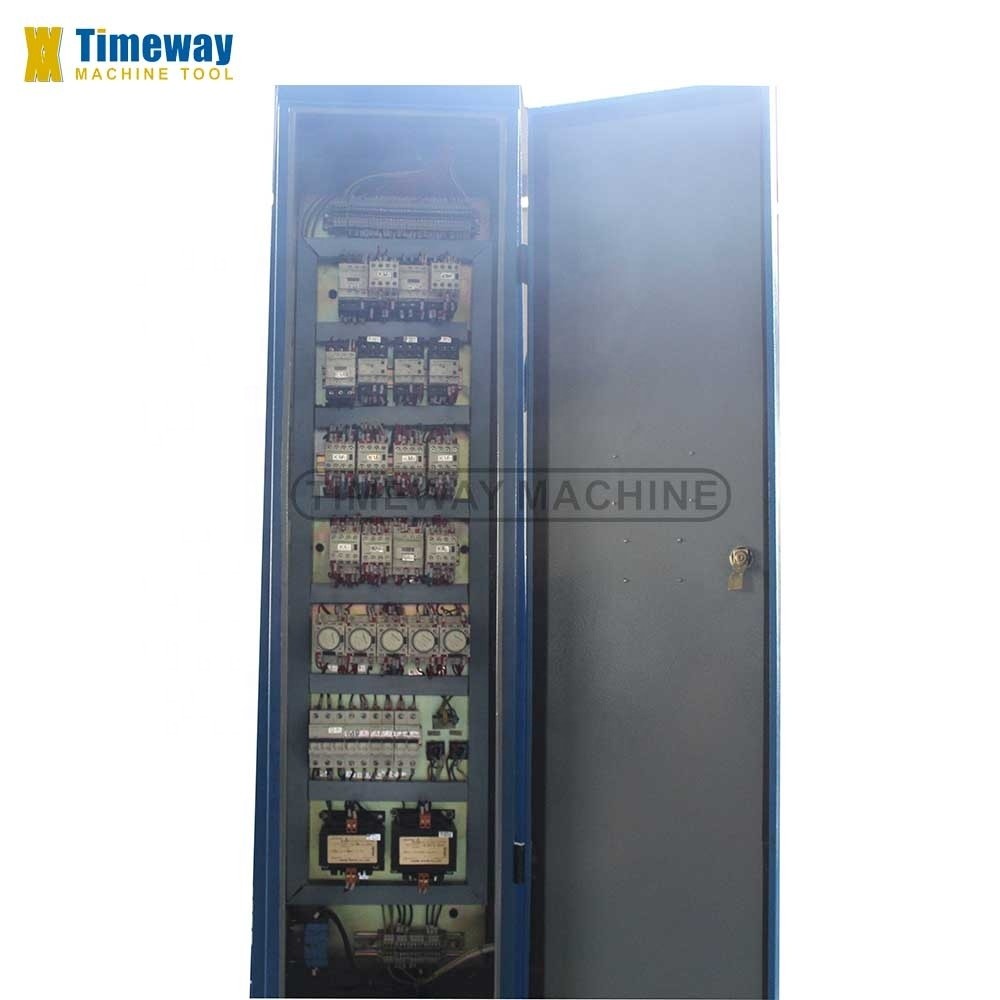

* Importable electrical components with CE, CSA and UL standard.
* Equipped with coolant system and fender device.

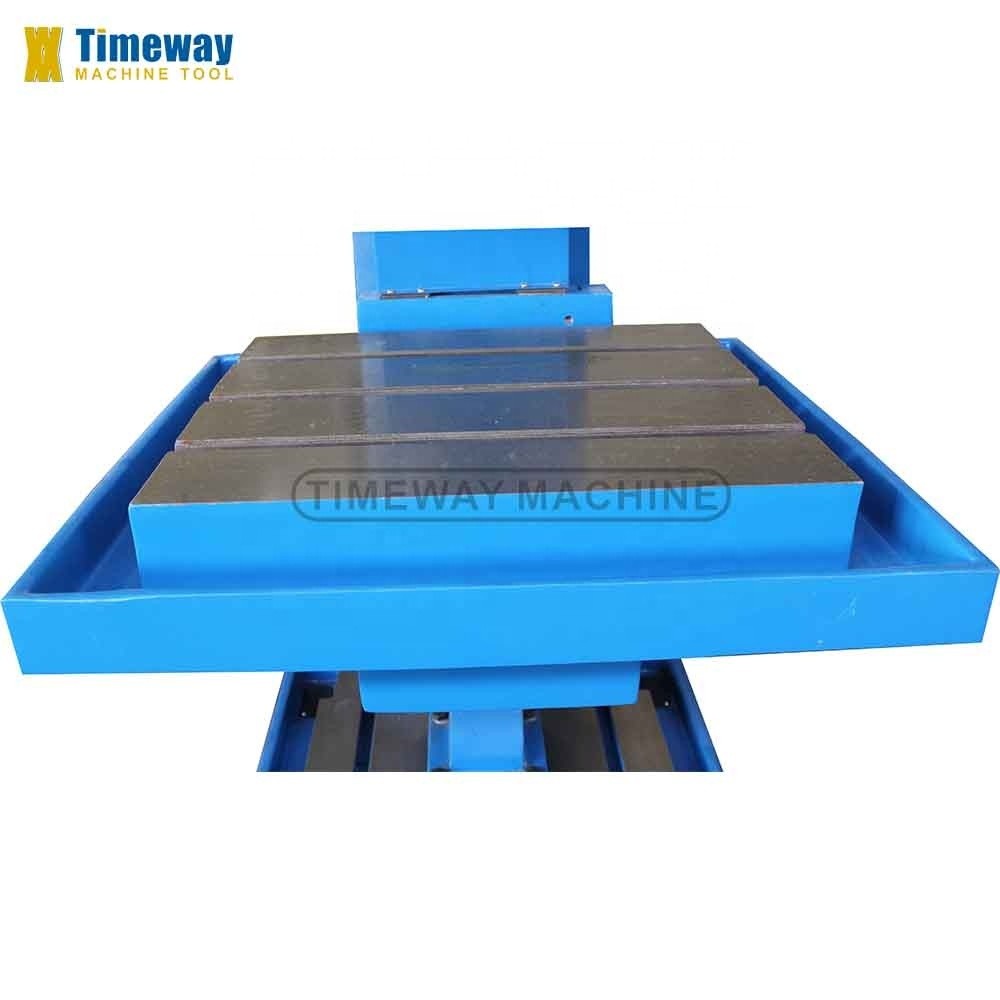

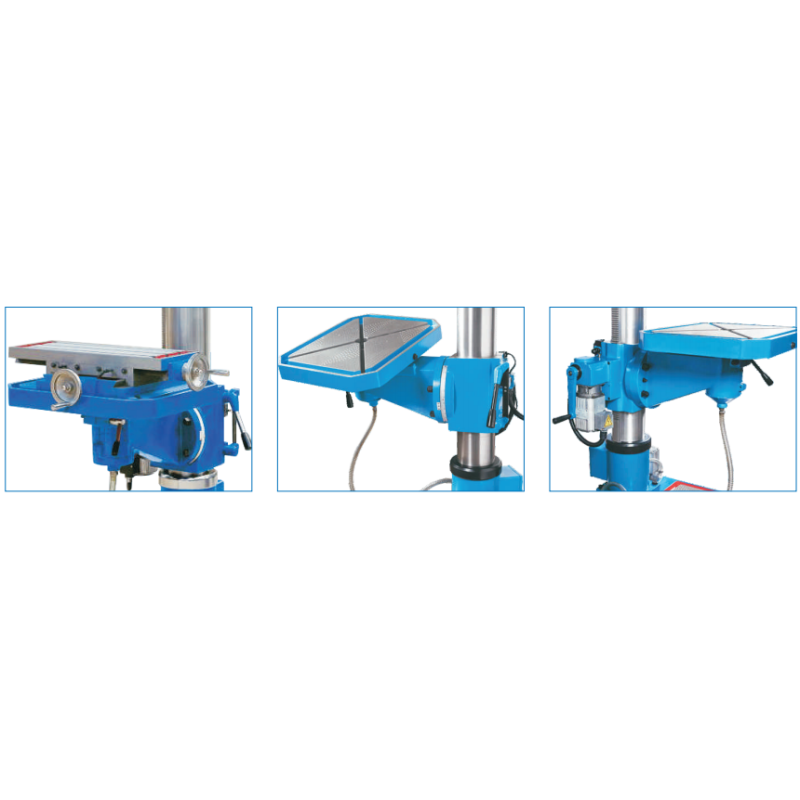

* Worktable could be rotated and could be inclined ±45°.
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
Specification
Unit
D-30A
D-32A
D-35A
D-40A
D-50A
Max. drilling and tapping diameter (steel)
mm
Φ30/M20
Φ32/M22
Φ35/M22
Φ40/M24
Φ50/M27
Max. travel of spindle
mm
135
155
155
190
200
Max. distance from spindle axis to column
mm
260
320
320
360
380
Max. distance from spindle nose to worktable
mm
685
630
585
615
590
Max. distance from spindle nose to base worktable
mm
1165
1185
1140
1195
1175
Max. travel of spindle box
mm
180
285
fixed
fixed
fixed
Max. travel of worktable and bracket
mm
500
415
545
550
530
Swivel angle of worktable

±45°
±45°
±45°
±45°
±45°
Inclined angle of worktable

±45°
±45°
±45°
±45°
±45°
Spindle taper bore
MT
3
4
4
4
4
Spindle speed steps
steps
12
12
12
9
9
Spindle speed range
r/min
125-3030
125-3030
125-3030
72-2150
70-2100
Spindle feed steps
steps
3
3
3
3
3
Spindle feed range
mm/r
0.1, 0.2, 0.3
0.1, 0.2, 0.3
0.1, 0.2, 0.3
0.12, 0.24, 0.42
0.12, 0.23, 0.40
Spindle feed way

electromagnetism
electromagnetism
electromagnetism
electromagnetism
electromagnetism
Dimension of worktable (LXW)
mm
420x350
500x420
500x420
570x480
600x500
Effective working area of worktable
mm
335x340
370x360
370x360
410x395
445x435
Power of motor
kw
0.85/1.1
1/1.2
1/1.2
2
2.2
Machine dimension
mm
750x500x2080
850x500x2220
860x515x2170
945x570x2290
1000x600x2260
Net weight/gross weight
kg
320/360
510/560
430/475
550/600
675/710
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
· Shaft sleeve for taper shank tool
·Key type drill chuck
·Connecting bar for drill chuck
·Wedge for taper shank tool
· Double open end spanner
·Φ6-Φ16mm collet
·Milling cutter shank
·Cross worktable
·Collet shank
·Nut for T-slot
·Inner hexagon bolt
·125mm precision vice
·Rotation worktable
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
Why Choose Us
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
