Specifications
Condition :
New
type :
Radial Drilling Machine
Max. Drilling Dia. (mm) :
63
Range of Spindle Speed(r.p.m) :
20 - 1600 r.p.m
CNC or Not :
Normal
Place of Origin :
Henan, China
Brand Name :
TIMAC
Model Number :
RD-620
Voltage :
as request
Dimension(L*W*H) :
3110x1250x3150 mm
Power (kW) :
5.5 kw
Weight (KG) :
7000 KG
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
Canada, Italy, Peru, Mexico, Russia, Thailand, Chile, South Africa, Ukraine, Malaysia, Australia
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Other
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Gear, Motor, Other
After-sales Service Provided :
Engineers available to service machinery overseas
machine tool :
radial drilling machine
Power :
5.5 kw
Certification :
CE
Max.Drilling capacity :
63 mm
Diameter of column :
450 mm
Spindle taper :
MT5
Spindle speeds range :
20-1600 r/min
Dimension of worktable :
950x630x500 mm
Machine type :
Veritcal
Packaging Details :
In plywood cases
Supply Ability :
100 Set/Sets per Month
Price :
$28,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
Large-sized Radial Drilling Machine Your Best Choice for Heavy-duty Drilling

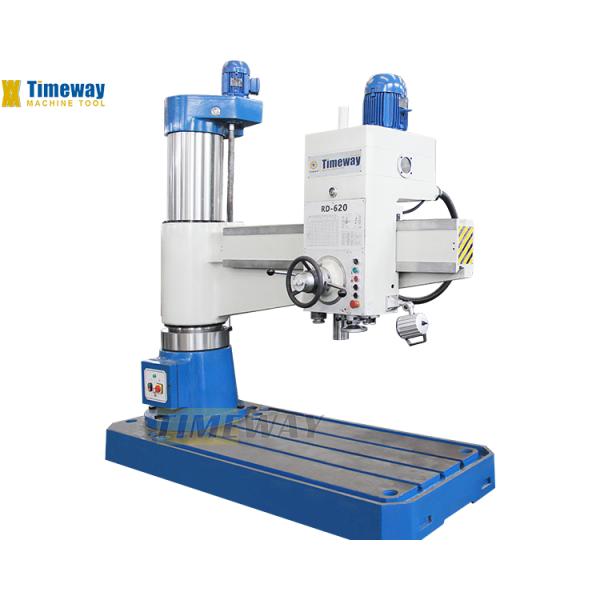

Radial Drilling Machine
* Gather mechanical-electrical-hydraulic functions, use extensively.
* With wide range of speed and feed, with manual, power and fine feeds.
* The feed of machines are very easily engaged and disengaged at any time.
* With safe and reliable feed safety machine, all parts easy operation and change.
* All controls centralized on the headstock easy operation and change.
*Clamping for all assemblies and speed change of spindleachieved by hydraulic, sensitive and reliable.
* Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
* Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
*Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
*Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
*Importable electrical components with CE, CSA, UL standard.
Large-sized Radial Drilling Machine Your Best Choice for Heavy-duty Drilling
Large-sized Radial Drilling Machine Your Best Choice for Heavy-duty Drilling
Specification
Unit
RD620
Max.Drilling capacity
mm
63
Distance spindle axis to column generating line
mm
450-2050
Diameter of column
mm
450
Spindle taper

MT5
Spindle travel
mm
400
Spindle speeds range
r/min
20-1600
Spindle speeds series

16
Range of spindle feeds
mm/r
0.04-3.2
Spindle feeds

16
Distance spindle nose to working surface of base
mm
400-1600
Dimension of worktable
mm
950x630x500
Dimension of base
mm
2900x1250x250
Overall size
mm
3110x1250x3150
Power of main motor
kw
5.5
G.W/N.W
kg
8000/7000
Packing dimension
cm
382x163x170
Large-sized Radial Drilling Machine Your Best Choice for Heavy-duty Drilling
·Box table
·Drill chuck arbor
·Morse taper drill sleeve
·LED working lamp
·Coolant system
·Lifting motor
·Hydraulic motor
·Spindle protective cover
·Tools & tool-box, Operation manual
·Rotation worktable
·Quick change collet
·Machine Vise
·Keyless drill chuck
Why Choose Us
Large-sized Radial Drilling Machine Your Best Choice for Heavy-duty Drilling
Large-sized Radial Drilling Machine Your Best Choice for Heavy-duty Drilling
Large-sized Radial Drilling Machine Your Best Choice for Heavy-duty Drilling
Large-sized Radial Drilling Machine Your Best Choice for Heavy-duty Drilling
Large-sized Radial Drilling Machine Your Best Choice for Heavy-duty Drilling
Large-sized Radial Drilling Machine Your Best Choice for Heavy-duty Drilling
Large-sized Radial Drilling Machine Your Best Choice for Heavy-duty Drilling
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
