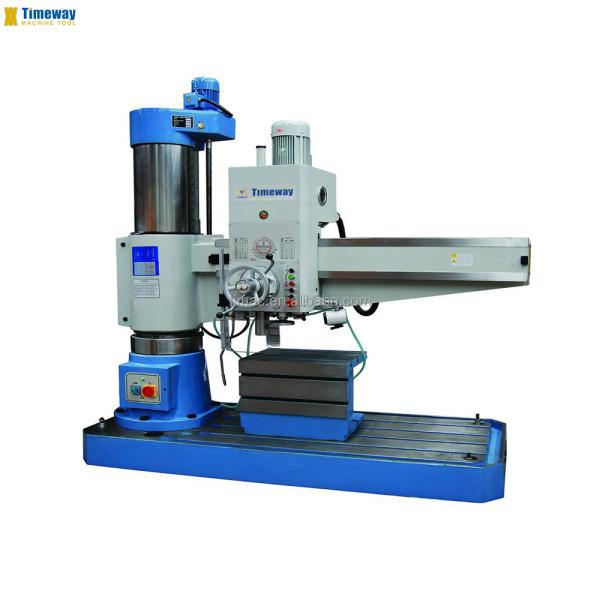

3900 KG Weight RD516 50mm Radial Drilling Machine for Your Request
3900 KG Weight RD516 50mm Radial Drilling Machine for Your Request
3900 KG Weight RD516 50mm Radial Drilling Machine for Your Request
3900 KG Weight RD516 50mm Radial Drilling Machine for Your Request
3900 KG Weight RD516 50mm Radial Drilling Machine for Your Request
3900 KG Weight RD516 50mm Radial Drilling Machine for Your Request
Specifications
Condition :
New
type :
Radial Drilling Machine
Max. Drilling Dia. (mm) :
50
Range of Spindle Speed(r.p.m) :
25 - 2000 r.p.m
CNC or Not :
Normal
Place of Origin :
Henan, China
Brand Name :
TIMAC
Model Number :
RD516 RD520
Voltage :
220/380V
Dimension(L*W*H) :
2500x1060x2650mm
Power (kW) :
4
Weight (KG) :
3900 KG
Warranty :
1 Year
Key Selling Points :
High Safety Level
Showroom Location :
Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction works
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure vessel, Engine
Product name :
Radial Drilling Machine
Color :
as your request
After-sales Service Provided :
Online support
Max.Drilling capacity :
50mm
Spindle travel :
315mm
Machine type :
Drilling Equipment
Warranty period :
1 year
Packaging Details :
wooden case/plywood case
Port :
China Port
Supply Ability :
300 Set/Sets per Month
Price :
$8,600.00/sets >=1 sets
MOQ :
1 set
Description

Hydraulic Radial Drilling Machine

3900 KG Weight RD516 50mm Radial Drilling Machine for Your Request

Features:
1. The radial drilling machine is new series with diversified fuctions of product which has been designed and accomplished referring to international standard ISO in the recent years.
2. In this machine, hydraulic preselection speed and feed change mechanisms are adopted, the spindle head, radial arm and column are clamped by hydraulic clamping mechanisms.
3. The forward, reverse, stop(braking), as well as the setting of spindle in neutral position are all controlled by a single-lever, the machine has characteristics features of perfect performance, safe,reliable and easy operation, convenient maintenance, high-accuracy, ample rigidity and long service long.
4. It is used for drilling, counter boring, spot facing, reaming, tapping and boring, widely used in every department of mechaninal machining.

Specification

Unit

RD516

RD520

Max.Drilling capacity

mm

50

50

Distance spindle axis to column generating line

mm

350-1600

350-2000

Diameter of column

mm

350

350

Spindle taper

MT5

MT5

Spindle travel

mm

315

315

Spindle speeds range

r/min

25-2000

25-2000

Spindle speeds steps

16

16

Range of Spindle feeds

mm/r

0.04-3.2

v

Spindle feeds steps

mm

16

16

Max.Distance spindle nose to working surface of base

mm

320-1220

320-1220

Dimension of worktable

mm

630×500×500

630×550×500

Dimension of base

mm

2400×1000×200

2400×1000×200

Overall Size

mm

2500×1060×2650

2900×1060×2650

Power of Main motor

kw

4

4

G.W/N.W

kg

3900/3500

3950/3550

Packing dimension

cm

270×112×258

320×112×258

Why Choose Us
Why choose TIMEWAY MACHINE?

1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving.
3900 KG Weight RD516 50mm Radial Drilling Machine for Your Request

Company Introduction

3900 KG Weight RD516 50mm Radial Drilling Machine for Your Request3900 KG Weight RD516 50mm Radial Drilling Machine for Your Request

Customer Visiting

3900 KG Weight RD516 50mm Radial Drilling Machine for Your Request

Exhibition&Training

3900 KG Weight RD516 50mm Radial Drilling Machine for Your Request

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
