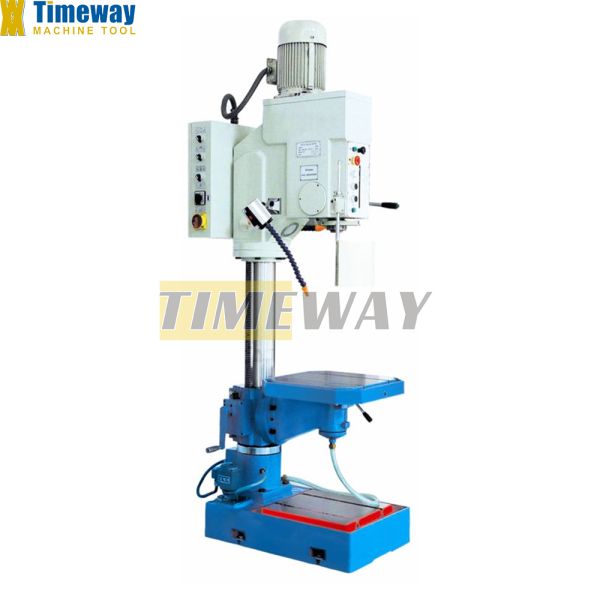

Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Specifications
Condition :
New
type :
Bench Drilling Machine
Max. Drilling Dia. (mm) :
35
Range of Spindle Speed(r.p.m) :
70 - 2600 r.p.m
CNC or Not :
Normal
Place of Origin :
Henan, China
Brand Name :
Timeway
Model Number :
Z-35A
Dimension(L*W*H) :
700x1150x2150 mm
Weight (KG) :
730 KG
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
Egypt, Italy, Peru, Russia
Applicable Industries :
Building Material Shops, Retail, Construction works , Other
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Pump, Motor, Engine
Max. drilling capacity :
35 mm
Max. tapping capacity :
M20 mm
Distance from spindle to column :
330 mm
Distance from spindle nose to table :
610 mm
Distance from spindle nose to base :
1150 mm
Spindle travel :
150 mm
Table travel :
540 mm
Swivel angle of table :
±45°
Spindle taper :
MT4
Spindle speed steps :
12 steps
Price :
$4,650.00/sets 1-3 sets
MOQ :
1 set
Description
Product Description
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Specification
Specifications
Z-35A
Max. drilling capacity
35 mm
Max. tapping capacity
M20 mm
Distance from spindle to column
330 mm
Distance from spindle nose to table
610 mm
Distance from spindle nose to base
1150 mm
Spindle travel
150 mm
Table travel
540 mm
Swivel angle of table
±45°
Spindle taper
MT4
Spindle speed steps
12 steps
Spindle speed range
70-2600 rpm
Spindle feed steps
3 steps
Spindle feed range
0.1,0.2,0.3 mm/r
Column diameter
140 mm
Effective working area of table(L×W)
500x500 mm
Effective working area of base(L×W)
760x500 mm
Dimension of T-slot of table and base
2-14,2-16 mm
Main motor power (double-speed)
1.5/2.2 kw
Main motor speed
960/1450 rpm
Pump motor
0.09 kw
Machine dimensions(L×W×H)
700x1150x2150 mm
Machine weight
730 kg
Packing & Delivery
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Factory Display：
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Max. Tapping Capacity M20 mm Manual Bench Drilling Machine for Metal Borehole Drilling
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
