Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10
Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10
Specifications
Brand Name :
HC
Model Number :
HC25
Certification :
ISO CE
Place of Origin :
China
MOQ :
1set
Price :
USD8000-15000
Payment Terms :
D/A, Western Union, L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
30 work days
Packaging Details :
1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Material :
PPGi GI
capacity :
20m/min
machine weight :
4.5T
rollers :
45# steel
Type :
Roof Sheet Roll Forming Equipment
cutting blade :
Cr12
Description

Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10

Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10

Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10

Parameter for reference

Description Specification
Main moter power 5.5KW
Hydraulic station power 4KW
Hydraulic oil pump CB-E310
Sprocket P-25.4
Roller station 14
Yield strength 32MPa
Diameter of principal axis 95MM
Material of roller 45#steel hard chrome plating
Processing speed 8m/min
Thickness 0.3-1mm
Installation dimension about(L*W*H) 7.5*1.5*1.2M
Total weight 3.8T

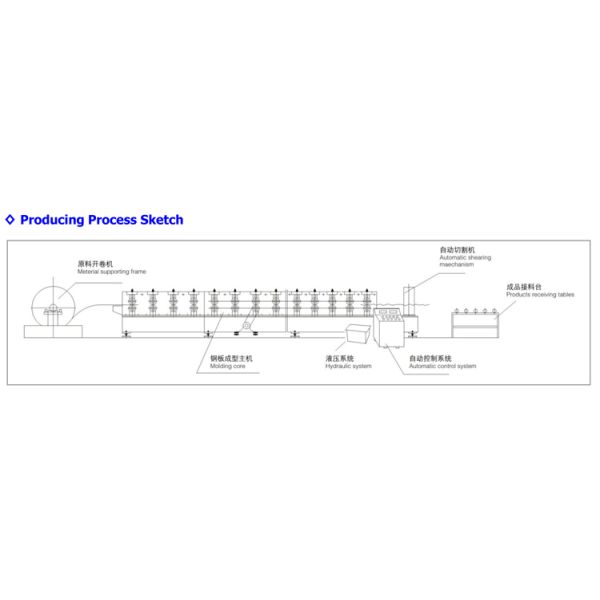

Equipment parts includes:forming machine,hydraulic cutter,hydraulic station,electric controlling system,counter,product supporter

Material of main equipment of Roll Forming Machine

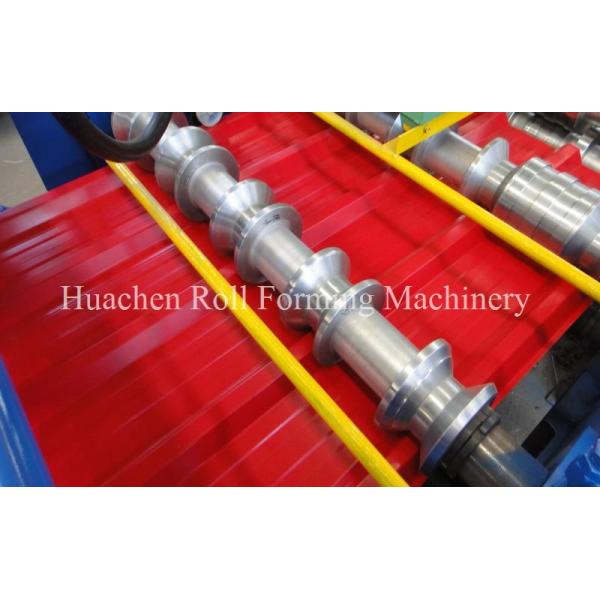

1 Roller material: high grade No.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm

2 Active shaft material: high grade No.45 carbon wrought steel at diameter 75mm

3 Cutter blade: Cr12 mould steel with quenched treatment

4 Eletric elements: control systerm with PLC model S7-200,Siemens transducer with ABB control panel with TP 170, Siemens it can input 10 sets of spec at one time

5 Oil tank model of hydraulic systerm: CB-E310

(They can be modified according to customer requirements)

Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10

Usage:

Color steel roll forming machine is widely used in producing color steel sheet for buildings.

About us

We are special in roll forming machine for nearly 20 years, with high quality and competitive price in China.

Our company covers an area of 30,000 square meters, including separated workshop for glazed roll forming machine, sandwich panel roll forming machine, C/Z purlin roll forming machine and Plastic coated workshop etc. the showcase workshop with our products open also is waiting for your coming.

our products are popular in Russia, India, UK, USA, Kazakhstan, Tajikstan ,Malaysia, Nigeria, Rumania and Albania etc. more than 50 countries and region with acclaim.
