0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling
Specifications
Brand Name :
HC
Model Number :
HC25-205-1000
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
25-30 work days
Packaging Details :

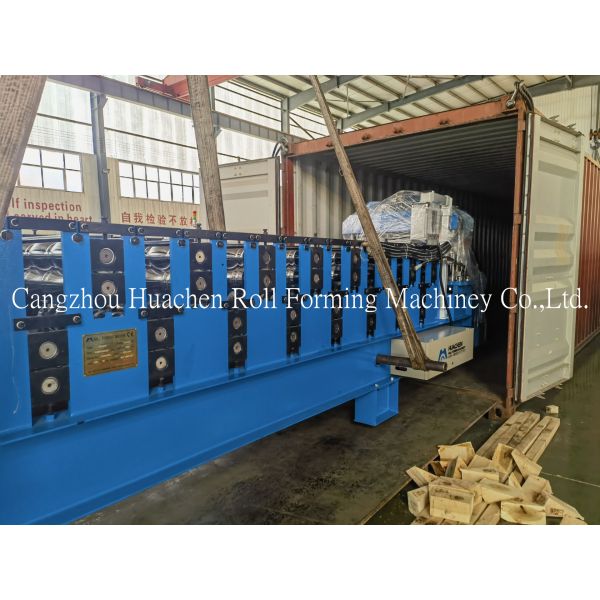

Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Material Type :
PPGI/GI
Material Thickness :
0.3-0.6mm
Material Width :
1200mm
Roller Stations :
11Stations
Diameter of Shaft :
Φ70mm
Roller & Shaft Material :
45# Steel Quenching and Plating
Cutter Material :
CR12
Drive Type :
Chain Drive
Speed :
15-20m/min
Total Power :
5.5+5.5KW
Voltage :
380v,50Hz, 3Phases(can be customized)
Description
0.3-0.6mm Steel Roofing Sheet Roll Forming Machine
Product Overview

Auto Sheet Metal Rolling Equipment for professional roofing panel production

Main Technical Parameters
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1200mm
Roller Stations 11 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15-20m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases (can be customized)
Component & Technical Parameters
Component Description & Specifications
5T Manual Decoiler
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling

This part is used to support coil and make the coil rotate. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.
Feeding Table & Pre-Cutter
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling

Guides the coil into correct position for roll forming. Includes hand pull cutting device for pre-cutting when changing color or thickness.

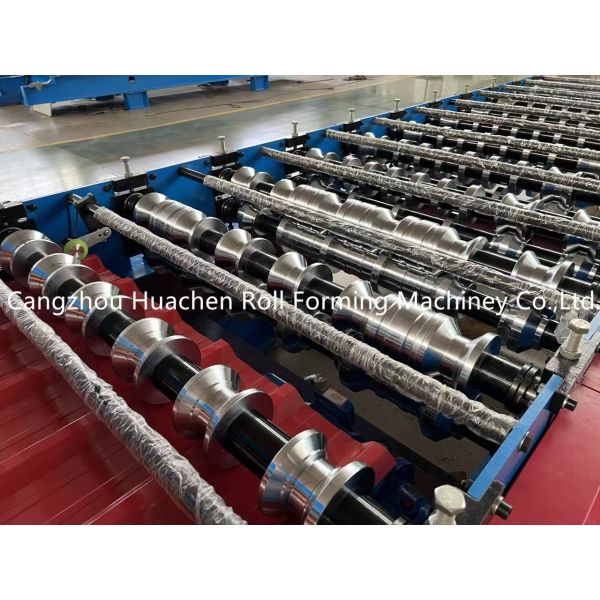

Shaft & Roller
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling

Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard and rust-resistant. Will not leave scratches on sheets during operation.

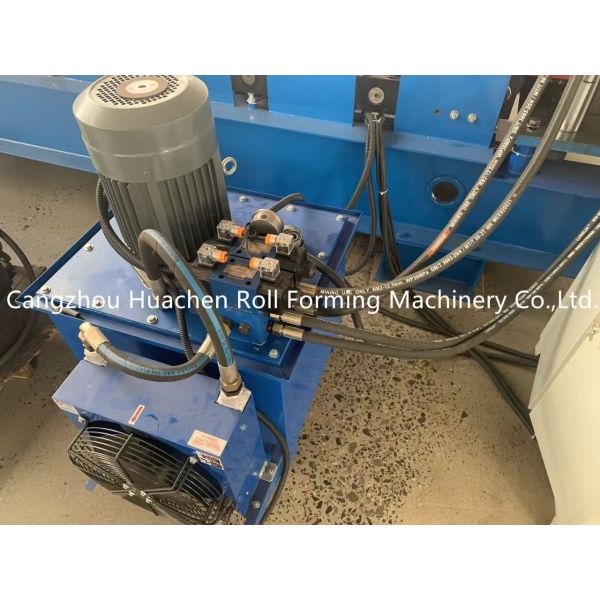

Hydraulic Pump Station
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.
Touch Screen Control Cabinet
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling

Features automatic and manual operation modes. Allows setting of unit length and quantity on touchscreen. Simple and easy to operate system.

Electrical Components:

  • VFD: Delta
  • Circuit breaker: Delixi
  • Contactor: Delixi
  • Relay: Xinling
  • PLC: Delta
  • Transformer: Delixi

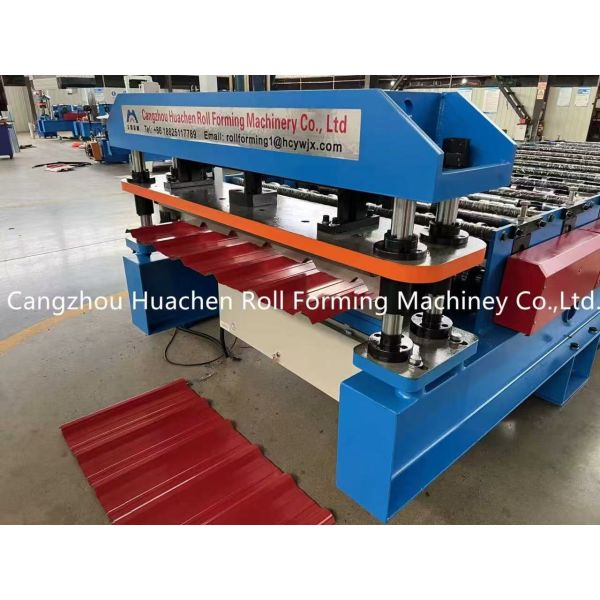

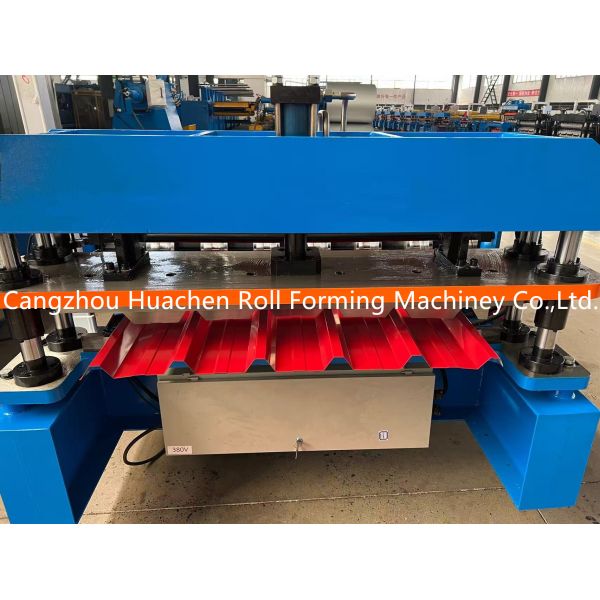

Pressing Section & Cutter
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling

Blade material is CR12 with high strength, excellent hardenability and superior wear resistance.
Output Table

Collects formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.
Spare Parts Included
Part Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Applications

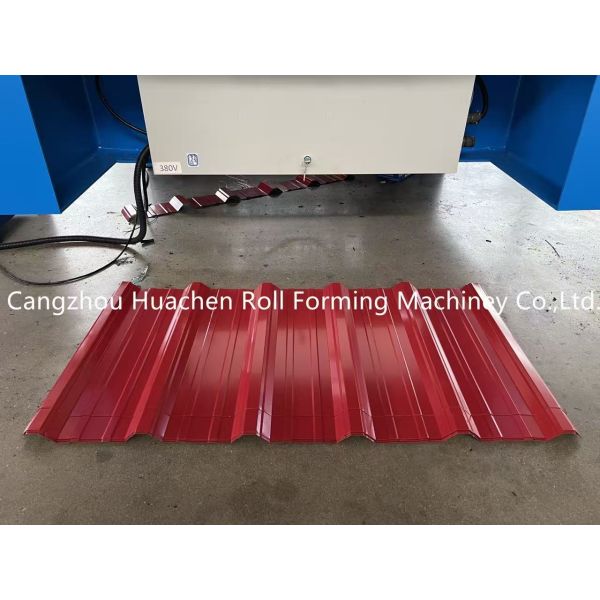

Roof Panel, Wall Panel

Key Advantages
Reasonable Price
High Quality
12 Months Warranty
More Than 10 Years Experience
Durable
Reliable
Product Images
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling 0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling 0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling 0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling
Manufacturer Information

Cangzhou Huachen Roll Forming Machinery Manufacturing Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
