13 Stations Corrugated Profile Roofing Sheet Bending Machine with 45# Steel Quenching and Plating Rollers at 15-20m/min Speed
13 Stations Corrugated Profile Roofing Sheet Bending Machine with 45# Steel Quenching and Plating Rollers at 15-20m/min Speed
Specifications
Brand Name :
HC
Model Number :
HC16-135-1080
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
25-30 work days
Packaging Details :
Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Material Type :
PPGI/GI
Material Thickness :
0.3-0.6mm
Material Width :
1250mm
Roller Stations :
13Stations
Roller & Shaft Material :
45# Steel Quenching and Plating
Diameter of Shaft :
Φ70mm
Cutter Material :
CR12
Drive Type :
Chain Drive
Speed :
15-20m/min
Total Power :
5.5+5.5KW
Voltage :
380V 50Hz 3Phases(can be customized)
Description

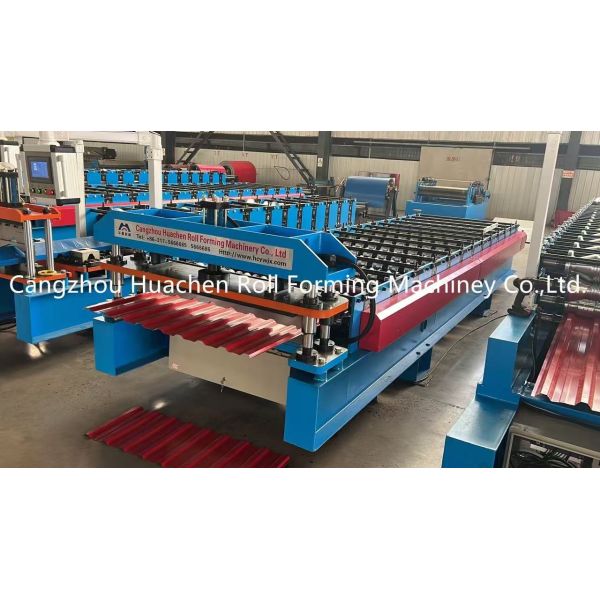

Corrugated Profile Roofing Sheet Bending Machine / Roll Forming Machine
Corrugated Profile Roofing Sheet Bending Roll Forming Machine
13 Stations Corrugated Profile Roofing Sheet Bending Machine with 45# Steel Quenching and Plating Rollers at 15-20m/min Speed 13 Stations Corrugated Profile Roofing Sheet Bending Machine with 45# Steel Quenching and Plating Rollers at 15-20m/min Speed
Processing Flow Diagram

Manual decoiler → Feeding material into machine → Roll forming machine → Measure length → Hydraulic cutting → Finished Products

Technical Parameters
13 Stations Corrugated Profile Roofing Sheet Bending Machine with 45# Steel Quenching and Plating Rollers at 15-20m/min Speed 13 Stations Corrugated Profile Roofing Sheet Bending Machine with 45# Steel Quenching and Plating Rollers at 15-20m/min Speed
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1250mm
Roller Stations 13 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15-20m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases (Can be customized)
Component & Technical Parameters
13 Stations Corrugated Profile Roofing Sheet Bending Machine with 45# Steel Quenching and Plating Rollers at 15-20m/min Speed

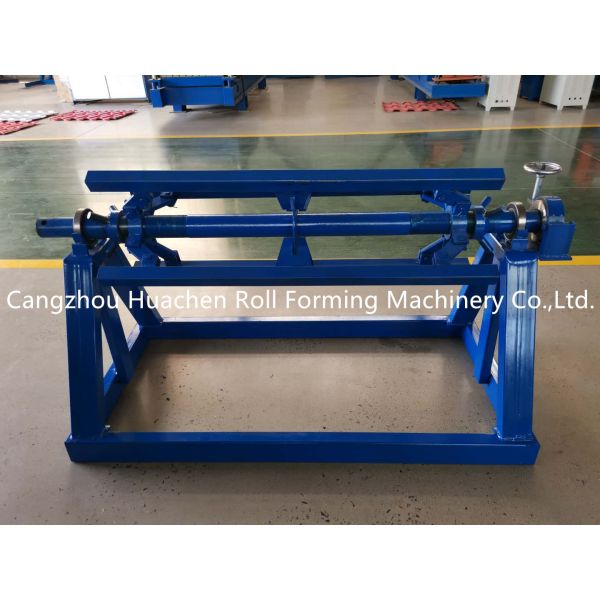

5T Manual Decoiler

This part is used to support coil and make the coil in a rotary way.

  • Bearing capacity: 5T
  • Inner diameter: 470-530mm (adjustable according to demand)
  • Equipped with brake device to prevent machine damage from impact during operation
13 Stations Corrugated Profile Roofing Sheet Bending Machine with 45# Steel Quenching and Plating Rollers at 15-20m/min Speed
Feeding Table & Pre-Cutter

Guides the coil into the correct position and directs it to the roll forming part.

Includes a Hand Pull Cutting Device for convenient pre-cutting when changing color or thickness.

13 Stations Corrugated Profile Roofing Sheet Bending Machine with 45# Steel Quenching and Plating Rollers at 15-20m/min Speed

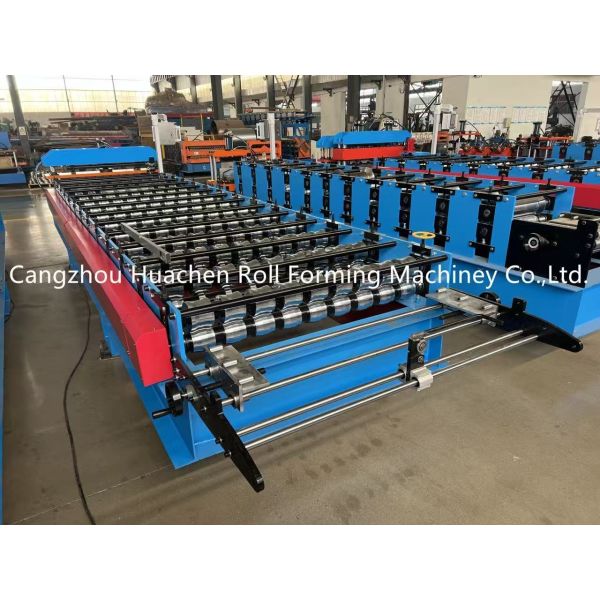

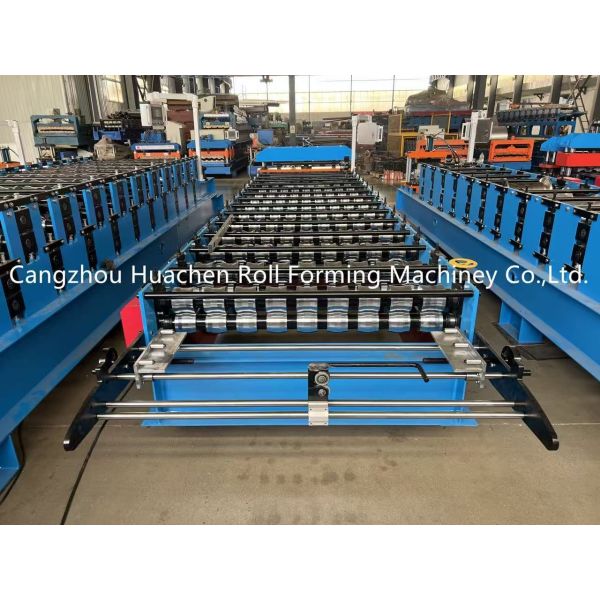

Shaft & Roller

Material is 45# Steel Quenching and Plating.

The processed rollers are smooth, hard, rust-resistant, and will not leave scratches on the sheet during operation.

13 Stations Corrugated Profile Roofing Sheet Bending Machine with 45# Steel Quenching and Plating Rollers at 15-20m/min Speed

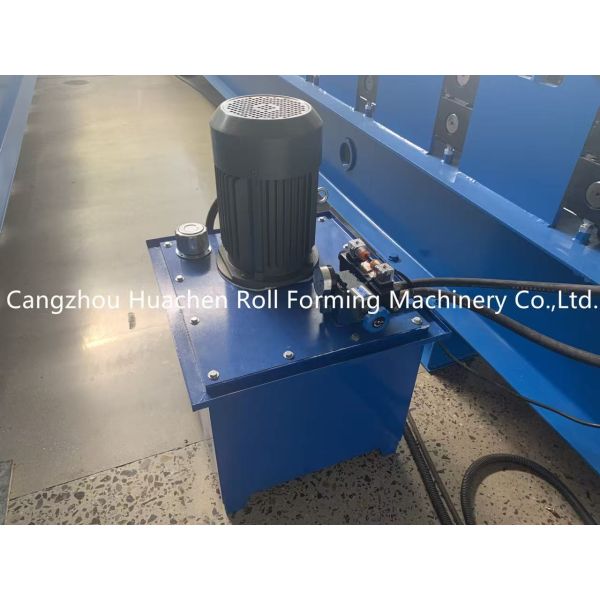

Hydraulic Pump Station

Drives the cutter to perform cutting operations.

  • Hydraulic tank uses 46# hydraulic oil
  • Equipped with cooling fan for internal circulation cooling
  • Prevents oil pump station from being affected by high oil temperature during operation
  • Solenoid valve brand: Huade
13 Stations Corrugated Profile Roofing Sheet Bending Machine with 45# Steel Quenching and Plating Rollers at 15-20m/min Speed

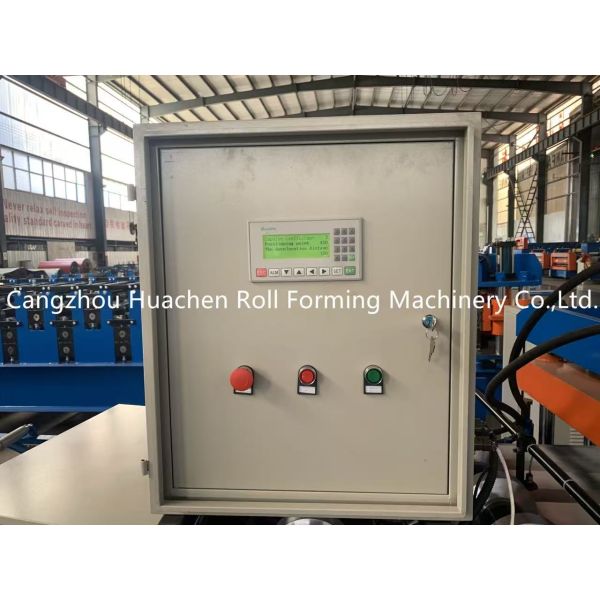

Touch Screen Control Cabinet

Features automatic and manual operation modes with touchscreen interface.

Allows setting of unit length and quantity for targeted sheet production.

Electrical Component Brands:
  • VFD: Delta
  • Circuit breaker: Delixi
  • Contactor: Delixi
  • Relay: Xinling
  • PLC: Delta
  • Transformer: Delixi
13 Stations Corrugated Profile Roofing Sheet Bending Machine with 45# Steel Quenching and Plating Rollers at 15-20m/min Speed

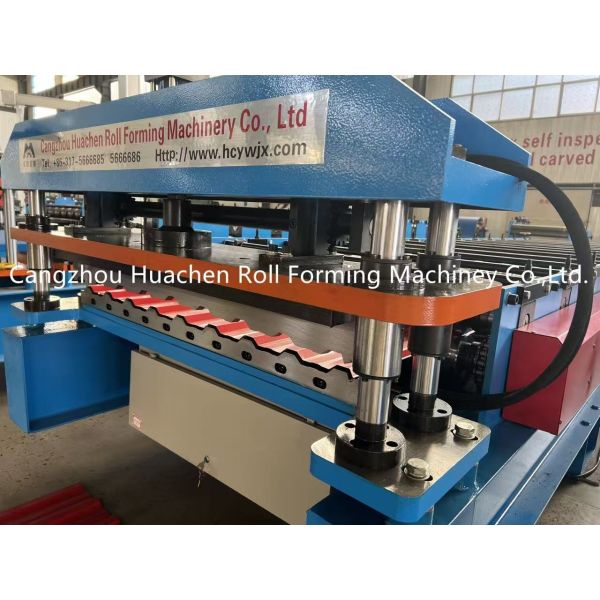

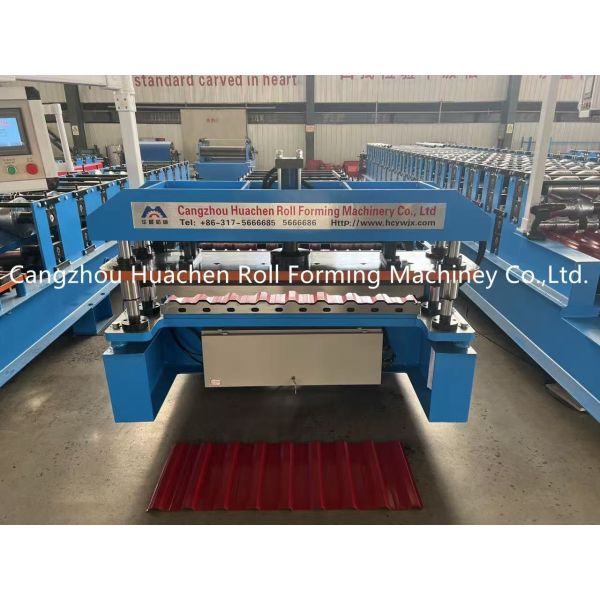

Pressing Section & Cutter

Blade material is CR12 with high strength, excellent hardenability, and superior wear resistance.

Output Table

Collects the formed products with roller-equipped brackets to facilitate product forwarding without scratching.

Spare Parts
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Frequently Asked Questions
1. You are the manufacturer or trading company?
We are the professional manufacturer with more than 20 years of professional experience in the field of roll forming machines.
2. Can you make the machine according to my design or photo type?
Yes. We have an experienced team to work out the most suitable design and production plan for the machine.
3. How can we be assured that you will deliver us quality machine with spare parts?
  • Customers can send technical personnel to our factory for quality inspection
  • We can send technicians to the buyer's factory for machine installation
4. What policy of your guarantee?

Within the one-year period, we supply replacement parts free of charge for any damaged parts caused by quality problems. After two years, replacement parts are available at factory cost.
