380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
Specifications
Brand Name :
HC
Model Number :
HC38-250-1000
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets/month
Delivery Time :
25-30days
Packaging Details :
Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Material Type :
PPGI/GI
Material Thickness :
0.3-0.6mm
Material Width :
1220mm
Roller Stations :
15Stations
Roller & Shaft Material :
45# Steel Quenching and Plating
Diameter of Shaft :
Φ70mm
Cutter Material :
CR12
Drive Type :
Chain Drive
Speed :
15-20m/min
Total Power :
5.5+5.5KW
Voltage :
380V 50Hz 3Phases(can be customized)
Description
380V Corrugated Roof Panel Roll Forming Machine With Hydraulic Control System
Product Overview

We have marked a distinct position in the market by providing Steel Roof Forming Machine to our valuable clients. This Steel Roof Forming Machine is designed by our professionals utilizing high grade component, in compliance with international standards to ensure its flawlessness at users' end. The Steel Roof Forming Machine is rigorously tested on various parameters before supplying to our renowned clients. This machine can be availed in various specifications and can be customized as per needs of the clients.

Key Features
  • Having Multiple Roll Stations
  • Widely used as roof and wall of factory
  • Also used on warehouse, gymnasium, exhibition center
  • Easy installation
  • Light weight and high strength finish

Machine Specifications
Machine Description Quantity Delivery Time Container Type
Colored steel roofing panel forming machinery 1 SET 45 working days after receiving deposit One 40GP

Glazed Tile are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers' requests.


Working Process

Uncoiling → Feeding material into machine → Roll forming → Measuring length → Step formed → Auto cutting → Products receiving


Technical Parameters
NO. Items Parameters
1 Material Type: GI/PPGI
Width: 1220mm
Thickness: 0.3-0.6mm
2 Roller Stations 15 Stations
3 Roller & Shaft Material 45# Steel Quenching and Plating
4 Diameter of Shaft Φ70mm
5 Cutter Material CR12
6 Drive Type Chain Drive
7 Speed 15-20m/min
8 Total Power 5.5+5.5KW
9 Voltage 380V 50Hz 3Phases (can be customized)

Components & Technical Details
5T Manual Decoiler
380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
This part is used to support Coil. And make the coil in a rotary way. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Feeding Table & Pre-Cutter
380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
Guide the coil come into the correct position and going to the roll forming part. Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.

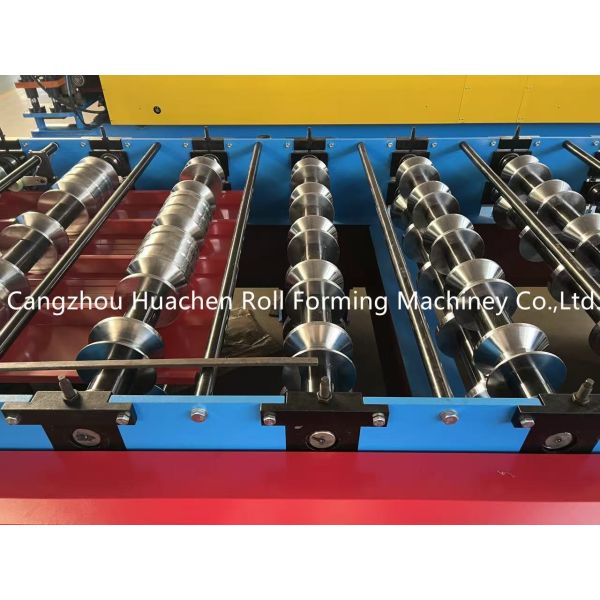

Shaft & Roller
380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
Material is 45# Steel Quenching and Plating. The processed rollers are smooth, hard and will not rust. Will not leave any scratches on the sheet when working.
Hydraulic Pump Station
380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
The purpose of this pump station is to drive the cutter to start cutting works. The hydraulic tank use 46# hydraulic oil. Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working. Solenoid valve brand: Huade
Touch Screen Control Cabinet
380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
The control cabinet has two modes, automatic and manual modes. The unit length of the targeted sheet and quantity can be set in the touchscreen. The system is simple and easy to operate. Electrical Component Brand: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi
Pressing Section & Cutter
380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
The material of blade is CR12. With high strength, better hardenability and good wear resistance.
Output Table
This part is used to collect the formed products. The bracket is equipped with rollers to facilitate the product forwarding without being scratched.

Spare Parts Included
  • Chains: 2 Sets
  • Solenoid Valve: 1 Set
  • Travel Switch: 2 Sets
  • Open-End Wrenches: 2 Sets
  • Hexagon Wrench: 2 Sets
  • Counter: 1 Set
  • Wrench: 2 Sets
  • Oil Seals: 1 Set

Product Gallery
380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed 380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed 380V Corrugated Roof Panel Roll Forming Machine with Hydraulic Control System and 15-20m/min Speed
