24 Rollers Steel Roofing Sheet Roll Forming Machine with 45# Steel Quenching and Plating and 12 Month Warranty
24 Rollers Steel Roofing Sheet Roll Forming Machine with 45# Steel Quenching and Plating and 12 Month Warranty
Specifications
Brand Name :
HC
Model Number :
HC97-476-952
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets/month
Delivery Time :
25-30days
Packaging Details :
Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Marerial Type :
PPGI/GI
Matrerial Thickness :
0.3-0.6mm
Material Width :
1200mm
Roller Stations :
18Stations
Roller & Shaft Material :
45# Steel Quenching and Plating
Diameter of Shaft :
Φ70mm
Cutter Material :
CR12
Drive Type :
Chain Drive
Speed :
15m/min
Total Power :
5.5+5.5KW
Voltage :
380V 50Hz 3Phases(can be customized)
Description
24 Rollers Steel Roofing Sheet Roll Forming Machine With 12 Month Warranty
Main Technical Parameters
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1200mm
Roller Stations 18 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15-20m/min
Total Power 5.5+5.5KW
Voltage 380V 50HZ 3 phases (can be customized)
Component & Technical Parameters
5T Manual Decoiler
24 Rollers Steel Roofing Sheet Roll Forming Machine with 45# Steel Quenching and Plating and 12 Month Warranty
This part is used to support coil and make the coil in a rotary way. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Feeding Table & Pre-Cutter
24 Rollers Steel Roofing Sheet Roll Forming Machine with 45# Steel Quenching and Plating and 12 Month Warranty
Guide the coil come into the correct position and going to the roll forming part. Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.

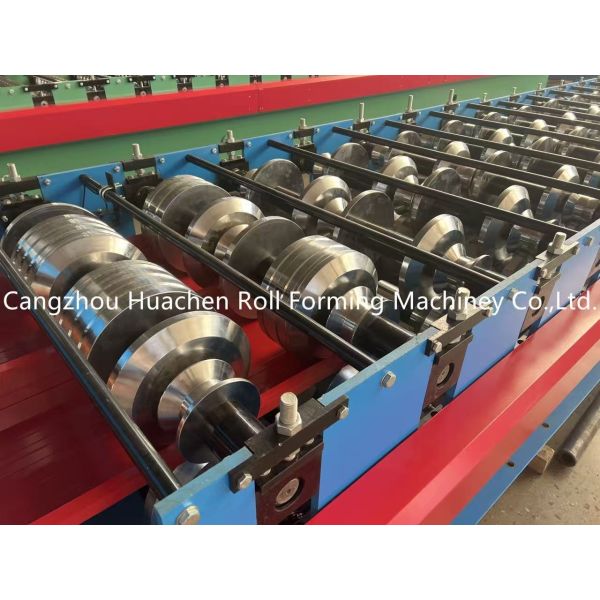

Shaft & Roller
24 Rollers Steel Roofing Sheet Roll Forming Machine with 45# Steel Quenching and Plating and 12 Month Warranty
Material is 45# Steel Quenching and Plating. The processed rollers are smooth, hard and will not rust. Will not leave any scratches on the sheet when working.
Hydraulic Pump Station
24 Rollers Steel Roofing Sheet Roll Forming Machine with 45# Steel Quenching and Plating and 12 Month Warranty
The purpose of this pump station is to drive the cutter to start cutting works. The hydraulic tank use 46# hydraulic oil. Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working. Solenoid valve brand: Huade.
Touch Screen Control Cabinet
24 Rollers Steel Roofing Sheet Roll Forming Machine with 45# Steel Quenching and Plating and 12 Month Warranty
The control cabinet has two modes, automatic and manual modes. The unit length of the targeted sheet and quantity can be set in the touchscreen. The system is simple and easy to operate. Electrical Component Brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.

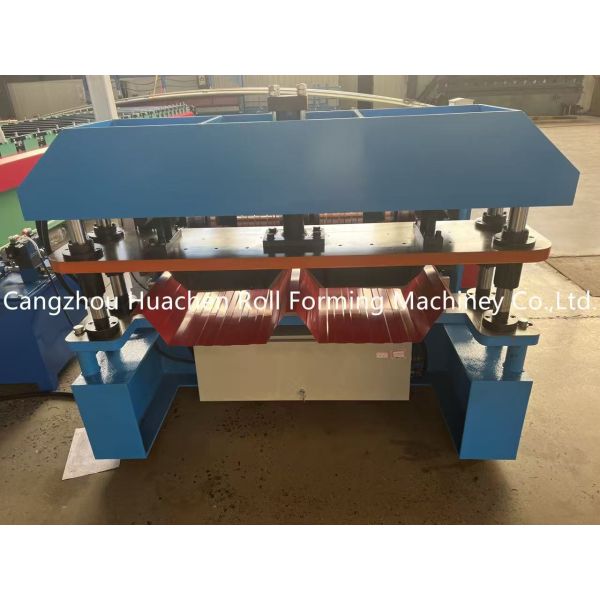

Pressing Section & Cutter
24 Rollers Steel Roofing Sheet Roll Forming Machine with 45# Steel Quenching and Plating and 12 Month Warranty
The material of blade is CR12. With high strength, better hardenability and good wear resistance.

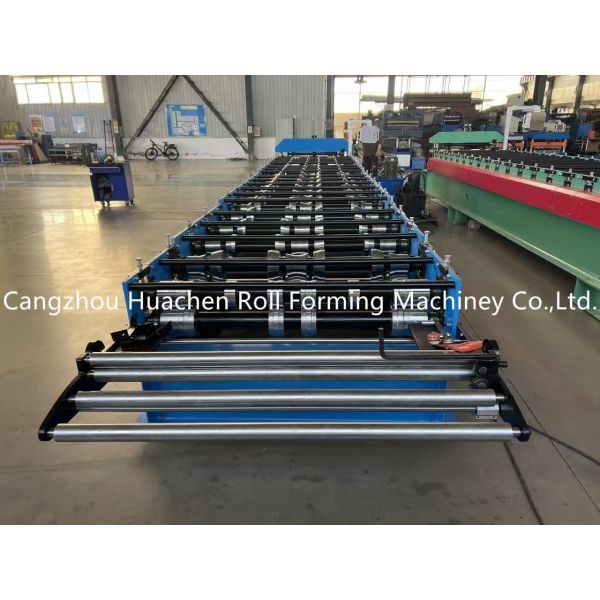

Output Table
This part is used to collect the formed products. The bracket is equipped with rollers to facilitate the product forwarding without being scratched.
Spare Parts Included
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Product Gallery
24 Rollers Steel Roofing Sheet Roll Forming Machine with 45# Steel Quenching and Plating and 12 Month Warranty 24 Rollers Steel Roofing Sheet Roll Forming Machine with 45# Steel Quenching and Plating and 12 Month Warranty 24 Rollers Steel Roofing Sheet Roll Forming Machine with 45# Steel Quenching and Plating and 12 Month Warranty 24 Rollers Steel Roofing Sheet Roll Forming Machine with 45# Steel Quenching and Plating and 12 Month Warranty
