R Panel Roofing Sheet Roll Forming Machine with 45# Steel Rollers, 11 Stations, and 0.3-0.6mm Material Thickness
R Panel Roofing Sheet Roll Forming Machine with 45# Steel Rollers, 11 Stations, and 0.3-0.6mm Material Thickness
Specifications
Brand Name :
HC
Model Number :
HC25-210-1050
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
25-30 work days
Packaging Details :
Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Material Type :
PPGI/GI
Material Thickness :
0.3-0.6mm
Material Width :
1250mm
Roller Stations :
11Stations
Roller & Shaft Material :
45# Steel Quenching and Plating
Diameter of Shaft :
Φ70mm
Cutter Material :
CR12
Drive Type :
Chain Drive
Speed :
15-20m/min
Total Power :
5.5+5.5KW
Voltage :
380V 50Hz 3Phases(can be customized)
Description
R Panel Roofing Sheet Roll Forming Machine
R Panel Roofing Sheet Roll Forming Machine with 45# Steel Rollers, 11 Stations, and 0.3-0.6mm Material Thickness

Good Quality Roof Sheet R Panel Roll Forming Machine

Main Technical Parameters
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1250mm
Roller Stations 11 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15-20m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases (can be customized)
Component & Technical Parameters
5T Manual Decoiler R Panel Roofing Sheet Roll Forming Machine with 45# Steel Rollers, 11 Stations, and 0.3-0.6mm Material Thickness

This part is used to support coil and make the coil rotate. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.

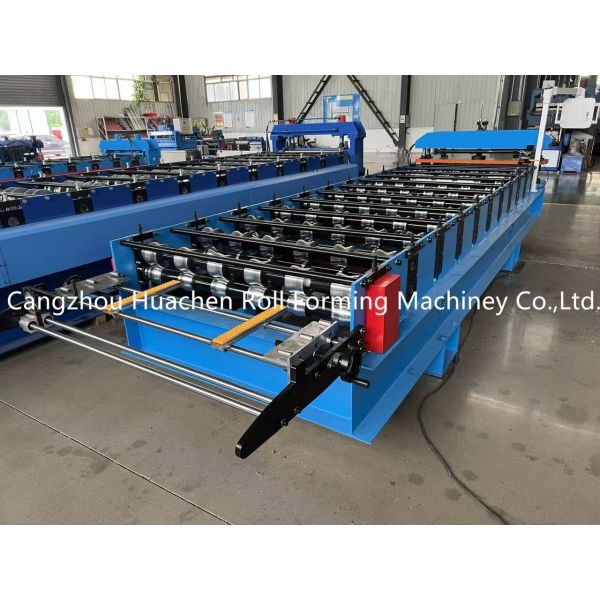

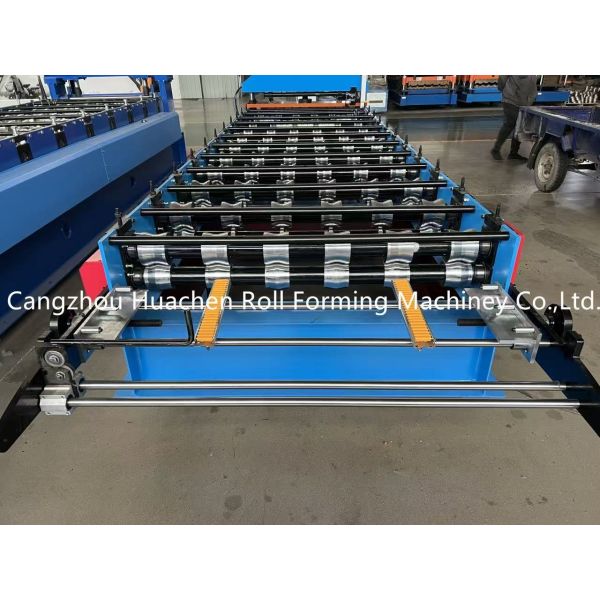

Feeding Table & Pre-Cutter R Panel Roofing Sheet Roll Forming Machine with 45# Steel Rollers, 11 Stations, and 0.3-0.6mm Material Thickness

Guides coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.

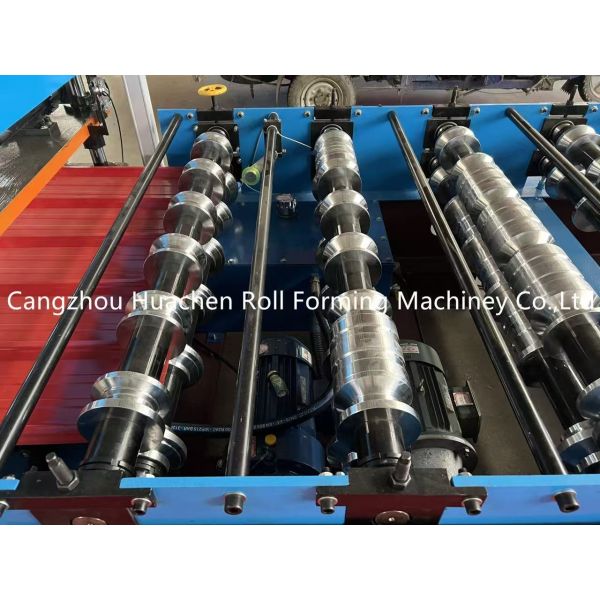

Shaft & Roller R Panel Roofing Sheet Roll Forming Machine with 45# Steel Rollers, 11 Stations, and 0.3-0.6mm Material Thickness

Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch sheets during operation.
Hydraulic Pump Station R Panel Roofing Sheet Roll Forming Machine with 45# Steel Rollers, 11 Stations, and 0.3-0.6mm Material Thickness

Drives the cutter for cutting operations. Uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.

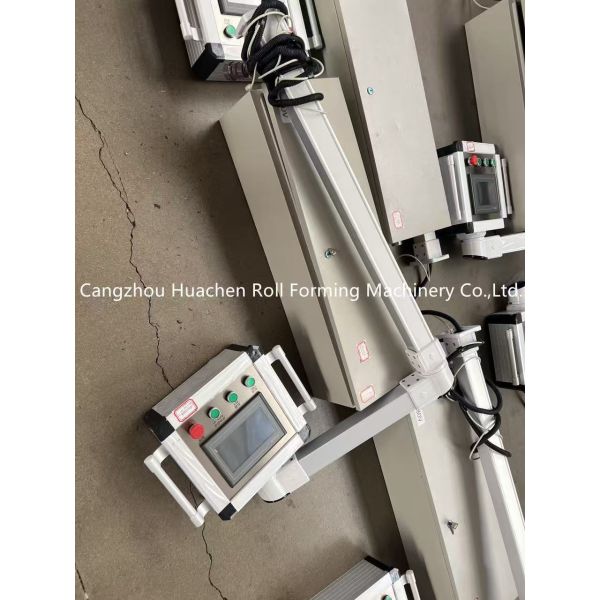

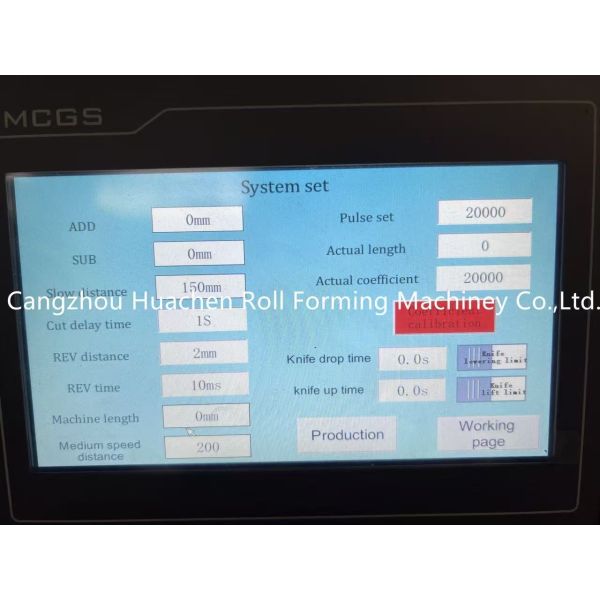

Touch Screen Control Cabinet R Panel Roofing Sheet Roll Forming Machine with 45# Steel Rollers, 11 Stations, and 0.3-0.6mm Material Thickness

Features automatic and manual modes. Allows setting of target sheet length and quantity via touchscreen. Simple and easy to operate system.

Electrical Component Brands:

  • VFD: Delta
  • Circuit breaker: Delixi
  • Contactor: Delixi
  • Relay: Xinling
  • PLC: Delta
  • Transformer: Delixi

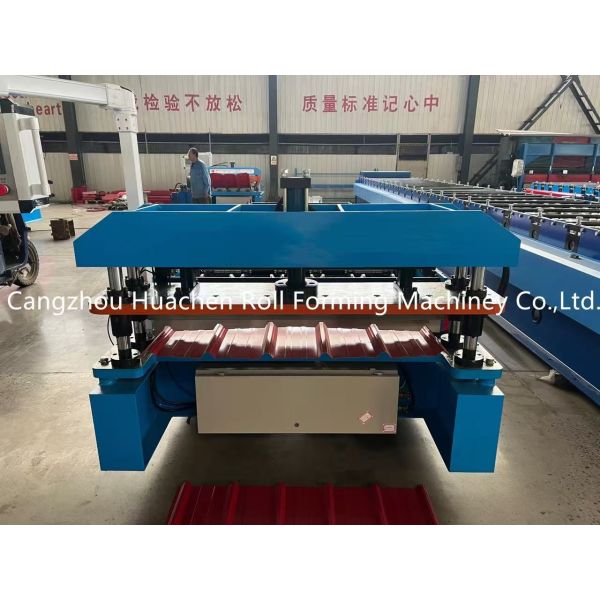

Pressing Section & Cutter R Panel Roofing Sheet Roll Forming Machine with 45# Steel Rollers, 11 Stations, and 0.3-0.6mm Material Thickness

Blade material is CR12 with high strength, excellent hardenability, and superior wear resistance.

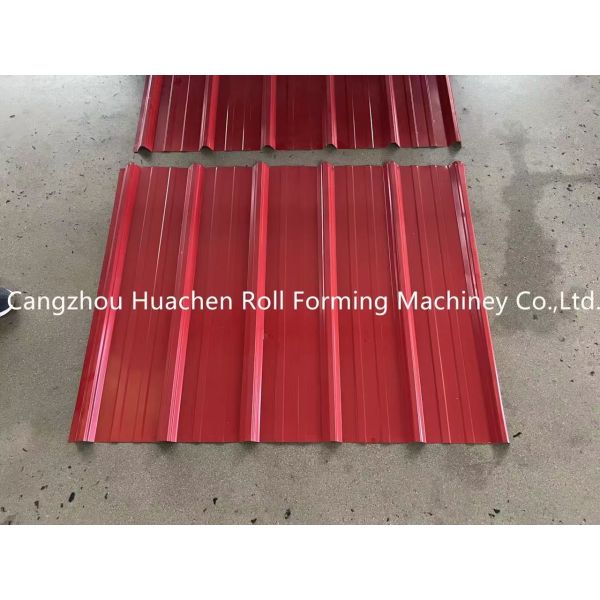

Output Table

Collects formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.
Spare Parts
  • Chains: 2 Sets
  • Solenoid Valve: 1 Set
  • Travel Switch: 2 Sets
  • Open-End Wrenches: 2 Sets
  • Hexagon Wrench: 2 Sets
  • Counter: 1 Set
  • Wrench: 2 Sets
  • Oil Seals: 1 Set
Additional Product Images
R Panel Roofing Sheet Roll Forming Machine with 45# Steel Rollers, 11 Stations, and 0.3-0.6mm Material Thickness R Panel Roofing Sheet Roll Forming Machine with 45# Steel Rollers, 11 Stations, and 0.3-0.6mm Material Thickness R Panel Roofing Sheet Roll Forming Machine with 45# Steel Rollers, 11 Stations, and 0.3-0.6mm Material Thickness R Panel Roofing Sheet Roll Forming Machine with 45# Steel Rollers, 11 Stations, and 0.3-0.6mm Material Thickness R Panel Roofing Sheet Roll Forming Machine with 45# Steel Rollers, 11 Stations, and 0.3-0.6mm Material Thickness
