Hydraulic Corrugated Panel Roll Forming Machine with 11 Stations, 45# Steel Quenching and Plating for Roofing Sheet Manufacturing at 15-20m/min Speed
Hydraulic Corrugated Panel Roll Forming Machine with 11 Stations, 45# Steel Quenching and Plating for Roofing Sheet Manufacturing at 15-20m/min Speed
Specifications
Brand Name :
HC
Model Number :
HC35-192-960
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets/month
Delivery Time :
25-30days
Packaging Details :

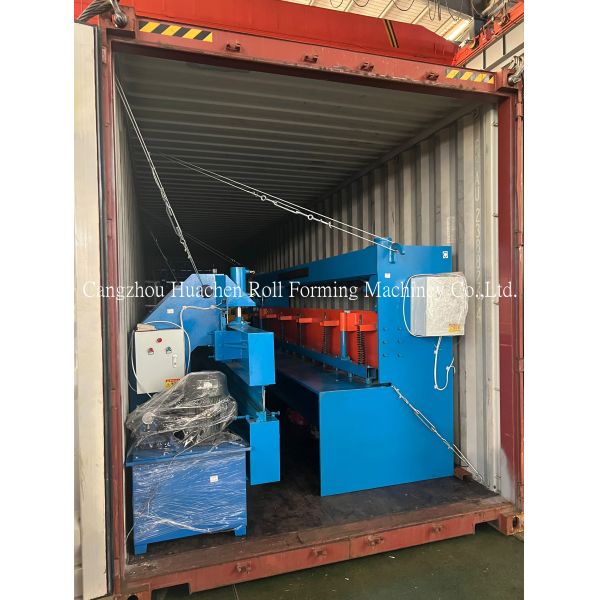

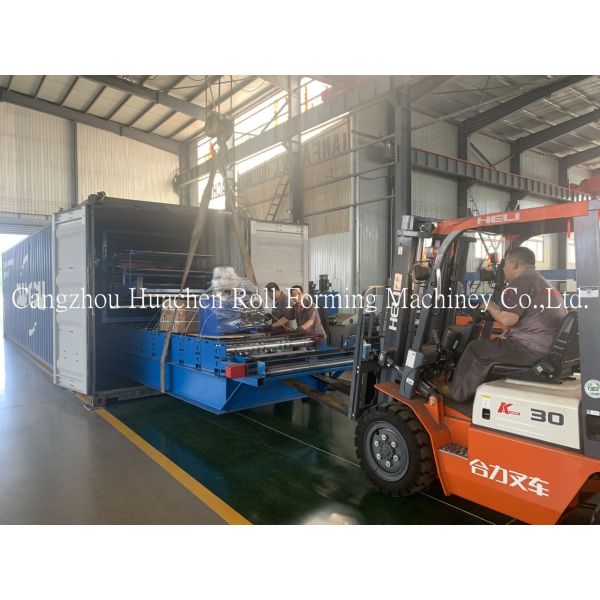

Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Material Type :
PPGI/GI
Material Thickness :
0.3-0.6mm
Material Width :
1220mm
Roller Stations :
11Stations
Roller & Shaft Material :
45# Steel Quenching and Plating
Diameter of Shaft :
Φ70mm
Cutter Material :
CR12
Drive Type :
Chain Drive
Speed :
15-20m/min
Total Power :
5.5+5.5KW
Voltage :
380V 50Hz 3Phases
Description
Hydraulic Corrugated Panel Metal Roll Forming Machine

Professional roofing sheets manufacturing machine for industrial production

Main Technical Parameters
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1220mm
Roller Stations 11 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15-20m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases (can be customized)
Component & Technical Parameters
5T Manual Decoiler
Hydraulic Corrugated Panel Roll Forming Machine with 11 Stations, 45# Steel Quenching and Plating for Roofing Sheet Manufacturing at 15-20m/min Speed

Supports coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable). Equipped with brake device to prevent machine damage from impact during operation.

Feeding Table & Pre-Cutter
Hydraulic Corrugated Panel Roll Forming Machine with 11 Stations, 45# Steel Quenching and Plating for Roofing Sheet Manufacturing at 15-20m/min Speed

Guides coil into correct position for roll forming. Includes hand pull cutting device for pre-cutting when changing color or thickness.

Shaft & Roller
Hydraulic Corrugated Panel Roll Forming Machine with 11 Stations, 45# Steel Quenching and Plating for Roofing Sheet Manufacturing at 15-20m/min Speed

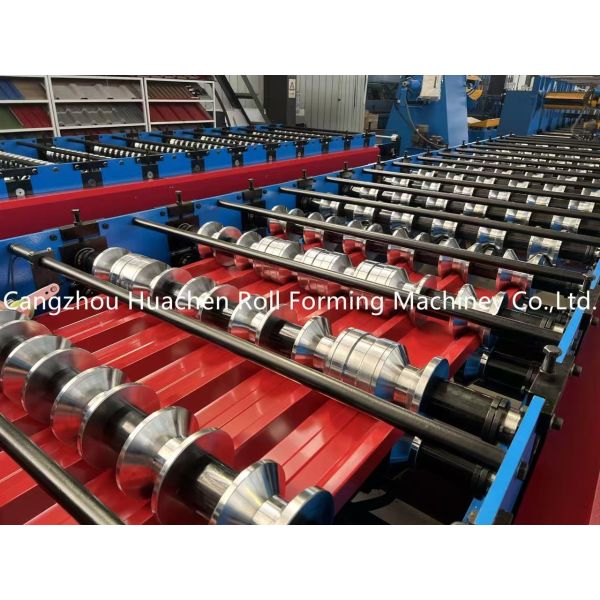

Material: 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and prevent scratches on sheets during operation.

Hydraulic Pump Station
Hydraulic Corrugated Panel Roll Forming Machine with 11 Stations, 45# Steel Quenching and Plating for Roofing Sheet Manufacturing at 15-20m/min Speed

Drives cutter for cutting operations. Uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.

Touch Screen Control Cabinet
Hydraulic Corrugated Panel Roll Forming Machine with 11 Stations, 45# Steel Quenching and Plating for Roofing Sheet Manufacturing at 15-20m/min Speed

Features automatic and manual modes. Allows setting of sheet unit length and quantity via touchscreen. Simple and easy to operate. Electrical components: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.

Pressing Section & Cutter
Hydraulic Corrugated Panel Roll Forming Machine with 11 Stations, 45# Steel Quenching and Plating for Roofing Sheet Manufacturing at 15-20m/min Speed

Cutter blade material: CR12. Provides high strength, excellent hardenability, and superior wear resistance.

Output Table

Collects formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.

Spare Parts Included

Chains: 2 Sets

Solenoid Valve: 1 Set

Travel Switch: 2 Sets

Open-End Wrenches: 2 Sets

Hexagon Wrench: 2 Sets

Counter: 1 Set

Wrench: 2 Sets

Oil Seals: 1 Set

Machine Layout
Hydraulic Corrugated Panel Roll Forming Machine with 11 Stations, 45# Steel Quenching and Plating for Roofing Sheet Manufacturing at 15-20m/min Speed
Technical Advantages
  • Anti-rust Roller: CNC machine tooled, plated with 0.05mm hard chrome for surface protection and strength
  • Heat Treatment: Cutting frame heat treated to remove steel stress, prevent deformation, hardness 60 degree
  • Cutter Blade: CR12 mould steel with quenched treatment for extended lifespan
  • High Precision: Shafts tooled by grinding machine, rollers CNC processed for precision performance
  • Automatic PLC: Mitsubishi PLC with touch screen, inverter, and transformer
  • Powerful Driving System: Large chain or gear box driving system
  • Excellent Services: Technician installation and worker training included, lifetime machine services
