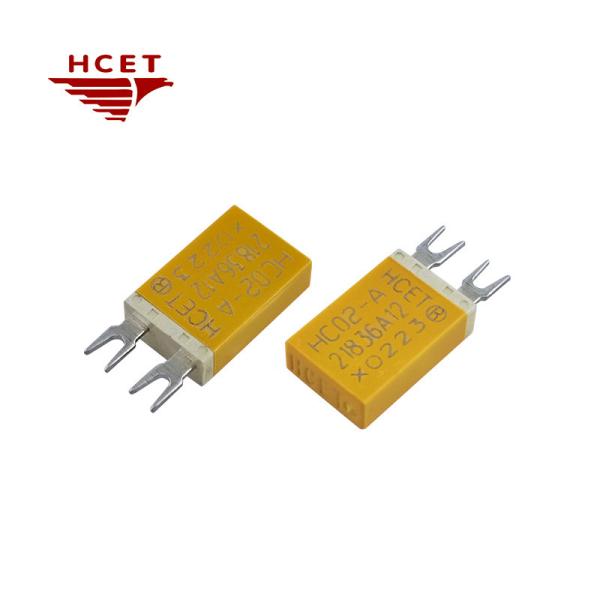

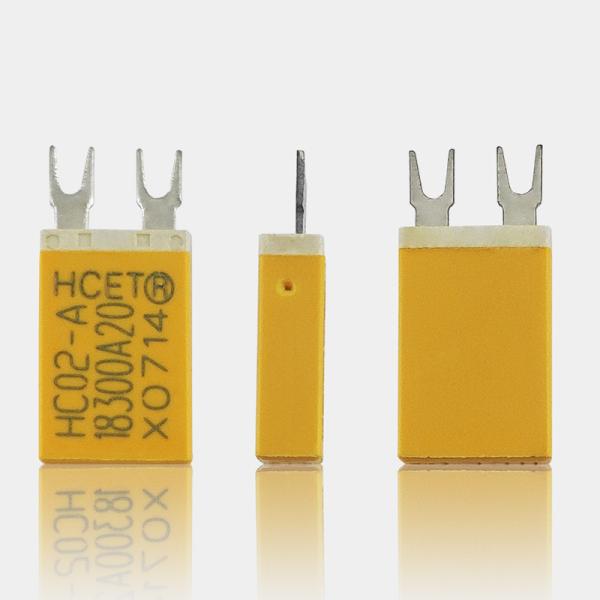

HC02 Series Bimetal Motor Overload Protector 1-30A Thermal Cutoff Switch with Temperature Sensing for Window Lifting Motor
HC02 Series Bimetal Motor Overload Protector 1-30A Thermal Cutoff Switch with Temperature Sensing for Window Lifting Motor
HC02 Series Bimetal Motor Overload Protector 1-30A Thermal Cutoff Switch with Temperature Sensing for Window Lifting Motor
HC02 Series Bimetal Motor Overload Protector 1-30A Thermal Cutoff Switch with Temperature Sensing for Window Lifting Motor
HC02 Series Bimetal Motor Overload Protector 1-30A Thermal Cutoff Switch with Temperature Sensing for Window Lifting Motor
HC02 Series Bimetal Motor Overload Protector 1-30A Thermal Cutoff Switch with Temperature Sensing for Window Lifting Motor
Specifications
Brand Name :
HCET
Model Number :
HC02-A
Certification :
UL, ROHS
Place of Origin :
China
MOQ :
1000
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
10000000 pcs per month
Delivery Time :
5-7 work days
Packaging Details :
20000 pcs per carton
Product name :
HC02 motor thermal protector
Material :
plastic case
Temperature range :
60~180℃
Tolerance :
±8℃,±10℃
Voltage :
250V AC/30V DC
Current :
Customizable
Application :
Window Lifting Motor
Description

HC02 Series Bimetal Motor Overload Protector 1-30A Thermal Cutoff Switch with Temperature Sensing for Window Lifting Motor


The HCET HC02 Series is an advanced bimetal thermal cutoff switch engineered to safeguard motors from catastrophic failure caused by
overloads, locked rotors, or overheating. With customizable trip currents up to 30A and rapid 4-10s response time, it delivers automotive-grade
reliability for mission-critical applications.


Product feature:

  • Dual Protection Technology
    Simultaneously monitors temperature (60-180℃ ±8℃) and current anomalies - exceeds IEC 60947-4 standards
  • Automotive Proven Performance
    PBT housing withstands vibration, moisture, and -40°C to 200°C extremes in wiper systems, sunroof motors, and EV components
  • Flexible Customization
    Tailor trip parameters, terminal types (quick-connect/spade), and mounting configurations for HVAC compressors, industrial pumps, or home appliances
  • Zero False Trips
    Patented bimetal snap-action mechanism ensures <0.1% failure rate through 30,000+ cycle testing

Electrical Characteristics:

60℃~170℃
Operating temperature range, Customizable temperature.

 4S~10S
Special action time can be customized
±8°C, ±10℃
Temperature Tolerance		 1A~30A
The overload current tripping range can be customized according to customer's requirements.
1~30amps/15 volts DC 1~15amps/250 volts AC
1~15amps/30 volts DC 1~30amps/125 volts AC
Electrical characteristics


Dimension size

HC02 Series Bimetal Motor Overload Protector 1-30A Thermal Cutoff Switch with Temperature Sensing for Window Lifting Motor


Product detail

HC02 Series Bimetal Motor Overload Protector 1-30A Thermal Cutoff Switch with Temperature Sensing for Window Lifting Motor


Application

HC02 Series Bimetal Motor Overload Protector 1-30A Thermal Cutoff Switch with Temperature Sensing for Window Lifting Motor
