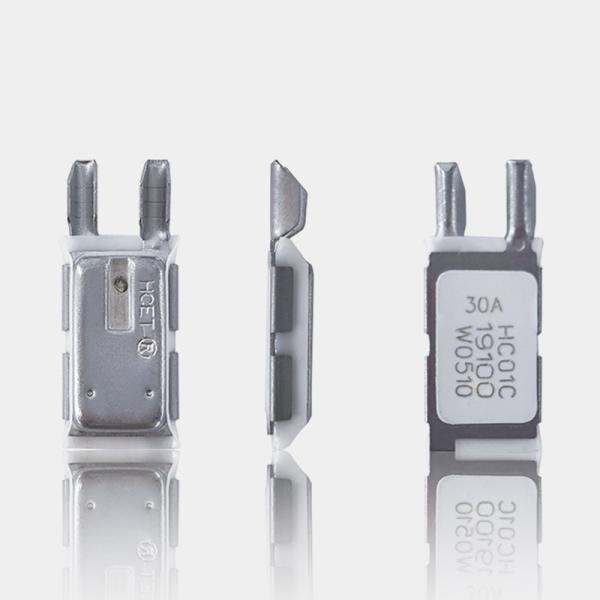

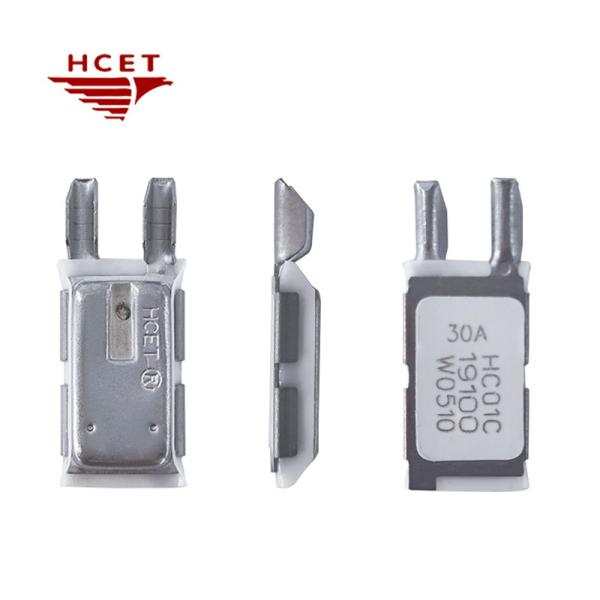

HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors
HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors
HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors
HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors
HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors
HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors
Specifications
Brand Name :
HCET
Model Number :
HC01/6AP
Certification :
ROHS
Place of Origin :
China
MOQ :
1000
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
10000000 pcs per month
Delivery Time :
5-7 work days
Packaging Details :
20000 pcs per carton
Product name :
6AP motor thermal protector
Material :
Metal case
Temperature range :
30~180℃
Tolerance :
±8℃,±5℃
Voltage :
30V DC / 250V AC
Current :
Customizable
Application :
New Energy Vehicles Motors
Description

HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors

The HC01/6AP bimetal thermal overload protector is a high-performance motor protection device designed for precision current and temperature monitoring. Combining a snap-action bimetal disc and advanced heating element technology, it ensures rapid response to overloads in automotive motors (EVs, sunroofs, wipers), industrial equipment, and home appliances (washing machines, vacuums). With RoHS-compliant materials and ±5℃ temperature tolerance, this protector delivers 30,000+ operation cycles to prevent motor burnout in extreme conditions.

Product feature:

  • Dual-Sensitive Protection
    Simultaneously monitors current (1-45A) and action temperature (30-180℃ customizable) through bimetal disc deformation and joule heating.
  • Smart Terminal Options
    Supports 8 terminal configurations (opposite/same insert/terminal) for flexible PCB/lead wire integration
  • Technical Superiority:
    - Trip Time: 4-10s 200% rated current
    - Contact Rating: 8A/250VAC
    - Cycle Life: 30,000 operations minimum

Electrical Characteristics:


30℃~180℃
Operating temperature range, Customizable temperature.

 4S~10S
Special action time can be customized
±5°C, ±8℃
Temperature Tolerance		 1A~45A
The overload current tripping range can be customized according to customer's requirements.

45amps/15 volts DC 15amps/30 volts DC

25amps/250 volts AC 30amps/125 volts AC
Electrical characteristics


Dimension size

HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors


HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors


Product detail

HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors

HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors


Application

HC01/6AP Bimetal Motor Thermal Protector Compact Motor Overload Circuit Breaker For New Energy Vehicles Motors
