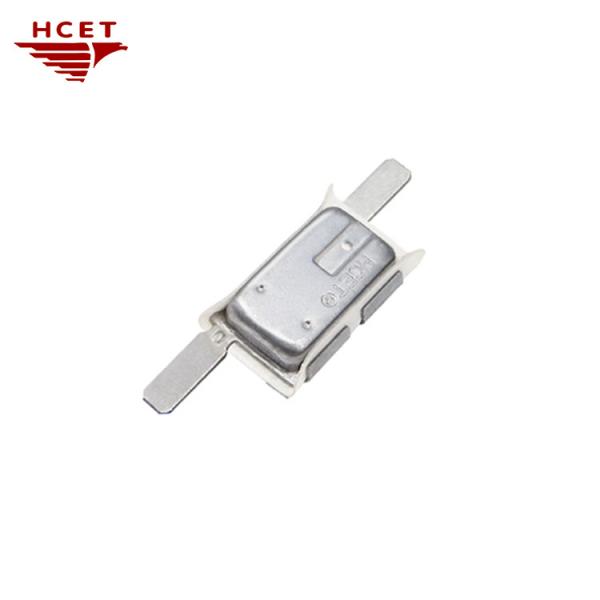

HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor
HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor
HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor
HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor
HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor
HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor
Specifications
Brand Name :
HCET
Model Number :
HC01/6AP
Certification :
ROHS
Place of Origin :
China
MOQ :
1000
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
10000000 pcs per month
Delivery Time :
5-7 work days
Packaging Details :
20000 pcs per carton
Product name :
6AP motor thermal protector
Material :
Metal case
Temperature range :
30~180℃
Tolerance :
±8℃,±5℃
Voltage :
30V DC / 250V AC
Current :
Customizable
Application :
Sunroof/Wiper Motor
Description

HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor

The HC01/6AP is a dual-sensitive bimetallic motor overload protector designed for AC/DC applications, combining current and ambient temperature detection to prevent motor overheating. This compact thermal switch provides precise tripping (4-10s) with customizable current (1-45A) and temperature settings (30-180℃±5℃), ensuring reliable protection for automotive systems (sunroofs, wipers, sliding doors), home appliances (washing machines, vacuum cleaners), and industrial equipment. Fully compliant with RoHS environmental requirements, it offers a direct replacement for Sensata/Klixon series with enhanced durability (30,000+ cycles) and snap-action bimetal technology.

Product feature:

  • Dual Protection Mechanism
    - Current-sensitive + Temperature-sensitive detection for multi-scenario motor safety.
    - Bimetal snap-action technology ensures fast response to overloads (4-10s tripping).
  • Precision Engineering
    - Customizable trip current (1-45A) and temperature (30-180℃, ±5℃ tolerance).
    - Withstands 45A/15VDC, 30A/125VAC, and 28A/250VAC for heavy-duty applications.
  • Automotive-Grade Reliability
    - Ideal for sunroof motors, windshield wipers, sliding door actuators, and window regulators.
    - Vibration-resistant design for harsh vehicle environments.
  • Cross-Industry Versatility
    - Home Appliances: Washing machines, vacuum cleaners, refrigerators.
    - Industrial: Garden tools, pumps, compressors, HVAC systems.
  • Cost-Effective Replacement
    - Direct replacement for Sensata (Klixon) 6AP series with extended lifecycle (30k+ cycles).
    - 100% tested for dielectric strength and insulation resistance.

Electrical Characteristics:


30℃~180℃
Operating temperature range, Customizable temperature.

 4S~10S
Special action time can be customized
±5°C, ±8℃
Temperature Tolerance		 1A~45A
The overload current tripping range can be customized according to customer's requirements.

45amps/15 volts DC 15amps/30 volts DC

25amps/250 volts AC 30amps/125 volts AC
Electrical characteristics


Dimension size

HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor


HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor

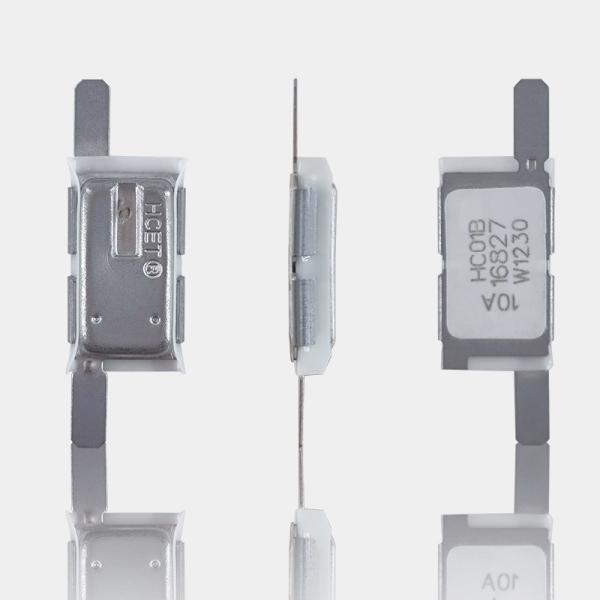

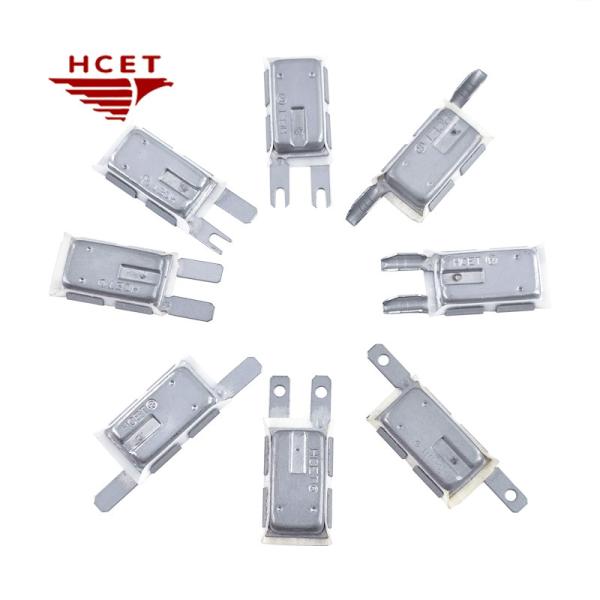

Product detail

HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor

HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor


Application

HC01/6AP Bimetallic Overload Protector Replace Sensata/Klixon Automotive Motor Thermal Switch for Sunroof/Wiper Motor
