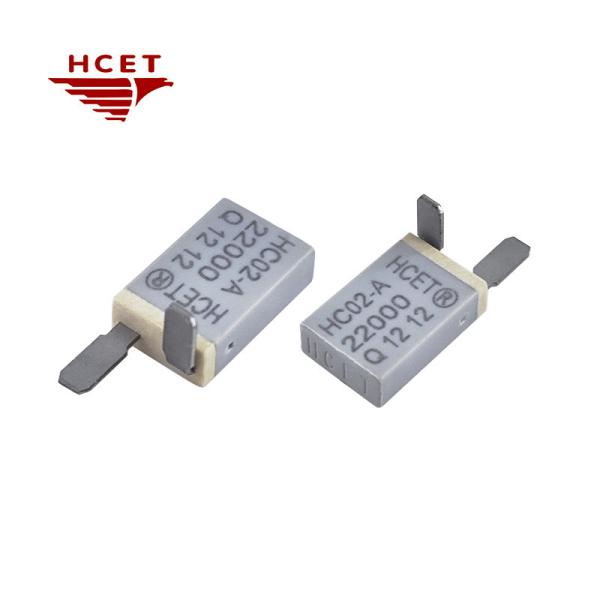

HC02 Bimetal Thermal Motor Protector 1-30A Overload Switch for Mirror adjustment motor with UL and RoHS Certified
HC02 Bimetal Thermal Motor Protector 1-30A Overload Switch for Mirror adjustment motor with UL and RoHS Certified
HC02 Bimetal Thermal Motor Protector 1-30A Overload Switch for Mirror adjustment motor with UL and RoHS Certified
HC02 Bimetal Thermal Motor Protector 1-30A Overload Switch for Mirror adjustment motor with UL and RoHS Certified
HC02 Bimetal Thermal Motor Protector 1-30A Overload Switch for Mirror adjustment motor with UL and RoHS Certified
HC02 Bimetal Thermal Motor Protector 1-30A Overload Switch for Mirror adjustment motor with UL and RoHS Certified
Specifications
Brand Name :
HCET
Model Number :
HC02-A
Certification :
UL, ROHS
Place of Origin :
China
MOQ :
1000
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
10000000 pcs per month
Delivery Time :
5-7 work days
Packaging Details :
20000 pcs per carton
Product name :
HC02 motor thermal protector
Material :
plastic case
Temperature range :
60~180℃
Tolerance :
±8℃,±10℃
Voltage :
250V AC/30V DC
Current :
Customizable
Application :
Mirror adjustment motor
Description

HC02 Bimetal Thermal Motor Protector 1-30A Overload Switch for Mirror adjustment motor with UL and RoHS Certified


HCET HC02 Bimetal Motor Overload Protector, a precision-engineered thermal protection solution designed for DC/AC motors in automotive
and industrial applications. This dual-metal protector offers reliable overload and overheating prevention with customizable trip currents (1-30A)
and rapid response time (4-10s), ensuring optimal motor lifespan under extreme conditions.

Product feature:

  • Precision Protection
    - Dual-metal snap-action mechanism ensures accurate temperature and current monitoring.
  • Extended Durability
    - 30,000+ operation cycles with high-temperature resistant polymer housing.
  • Multi-Industry Adaptability
    - Compatible with 12V/24V automotive systems and 110-240V industrial motors.
  • Customizable Solutions
    - Tailored trip settings and terminal configurations for OEM requirements.
  • Global Compliance
    - Manufactured under ISO standards with full RoHS documentation.

Electrical Characteristics:

60℃~170℃
Operating temperature range, Customizable temperature.

 4S~10S
Special action time can be customized
±8°C, ±10℃
Temperature Tolerance		 1A~30A
The overload current tripping range can be customized according to customer's requirements.
1~30amps/15 volts DC 1~15amps/250 volts AC
1~15amps/30 volts DC 1~30amps/125 volts AC
Electrical characteristics


Dimension size

HC02 Bimetal Thermal Motor Protector 1-30A Overload Switch for Mirror adjustment motor with UL and RoHS Certified

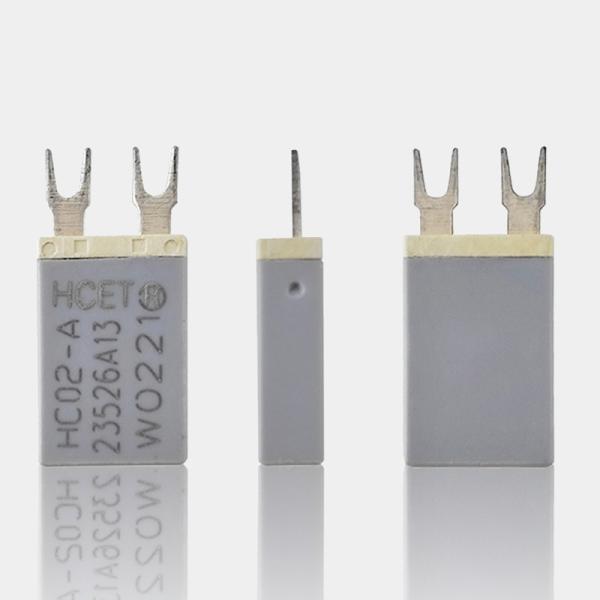

Product detail

HC02 Bimetal Thermal Motor Protector 1-30A Overload Switch for Mirror adjustment motor with UL and RoHS Certified


Application

HC02 Bimetal Thermal Motor Protector 1-30A Overload Switch for Mirror adjustment motor with UL and RoHS Certified
