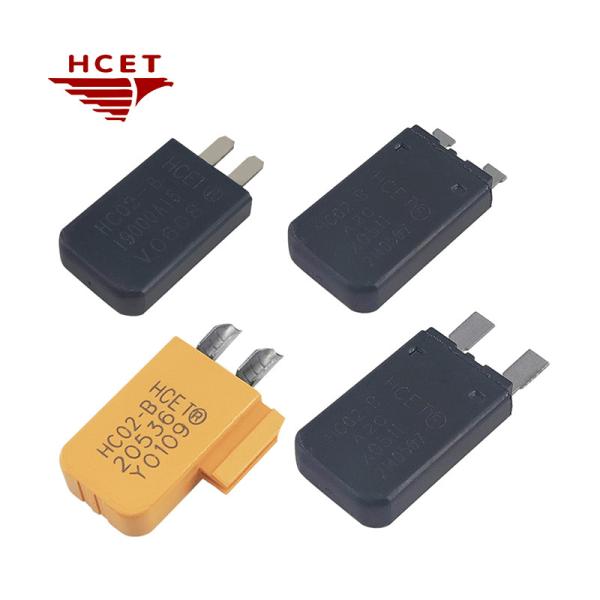

HCET HC02-B Overload Motor Thermal Protector 1A-30A For Power Window Motor
HCET HC02-B Overload Motor Thermal Protector 1A-30A For Power Window Motor
HCET HC02-B Overload Motor Thermal Protector 1A-30A For Power Window Motor
HCET HC02-B Overload Motor Thermal Protector 1A-30A For Power Window Motor
HCET HC02-B Overload Motor Thermal Protector 1A-30A For Power Window Motor
HCET HC02-B Overload Motor Thermal Protector 1A-30A For Power Window Motor
Specifications
Brand Name :
HCET
Model Number :
HC02-B
Certification :
UL, ROHS
Place of Origin :
China
MOQ :
1000
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
10000000 pcs per month
Delivery Time :
5-7 work days
Packaging Details :
10000 pcs per carton
Product name :
HC02-B motor thermal protector
Material :
plastic case
Temperature range :
60~180℃
Tolerance :
±8℃,±10℃
Voltage :
250V AC/30V DC
Current :
Customizable
Application :
Power Window Motor
Description

HCET HC02-B Series Motor Thermal Protector 1-30A Bimetal Overload Protector for Power Window Motor

The HCET HC02 Series is a precision-engineered bimetal motor overload protector designed for critical thermal and current-sensitive applications.
Featuring a high-temperature resistant polymer housing, this device ensures reliable protection against overheating, locked rotor, and short circuits
in motors up to 30A. With customizable trip currents (1-30A) and fast-acting response (4-10s), it is ideal for automotive systems (sunroofs, wipers,
power windows) and industrial equipment (compressors, pumps, HVAC). Compliant with RoHS standards, the HC02 offers ±8°C temperature
accuracy and operates seamlessly from 60°C to 180°C.

Product feature:

  • Dual-Sensing Protection
    Simultaneously monitors temperature and current to prevent motor burnout in overload/overheat scenarios.
  • Wide Application Coverage
    Certified for IATF16949, compatible with 12V/24V DC and 125-250V AC systems.
  • Precision Engineering
    - Adjustable trip current: 1-30A (±5% accuracy)
    - Temperature range: 60°C-180°C (±8°C tolerance)
    - Fast trip time: 4-10 seconds at 2× rated current
  • Durable Construction
    High-grade bimetal disc with flame-retardant housing withstands 30,000+ cycles.
  • Global Compliance
    RoHS/REACH compliant, CE marked, compatible
  • Custom Solutions
    Optional terminal types

Electrical Characteristics:

60℃~170℃
Operating temperature range, Customizable temperature.

 4S~10S
Special action time can be customized
±8°C, ±10℃
Temperature Tolerance		 1A~30A
The overload current tripping range can be customized according to customer's requirements.
1~30amps/15 volts DC 1~15amps/250 volts AC
1~15amps/30 volts DC 1~30amps/125 volts AC
Electrical characteristics

Dimension size

HCET HC02-B Overload Motor Thermal Protector 1A-30A For Power Window Motor

Product detail

HCET HC02-B Overload Motor Thermal Protector 1A-30A For Power Window Motor

Application

HCET HC02-B Overload Motor Thermal Protector 1A-30A For Power Window Motor
