HC01/6AP Bimetal Motor Overload Protector 1-45A Thermal Cutoff Switch Replace KLIXON 3MP Series for Automotive Sliding Door Motor
HC01/6AP Bimetal Motor Overload Protector 1-45A Thermal Cutoff Switch Replace KLIXON 3MP Series for Automotive Sliding Door Motor
HC01/6AP Bimetal Motor Overload Protector 1-45A Thermal Cutoff Switch Replace KLIXON 3MP Series for Automotive Sliding Door Motor
HC01/6AP Bimetal Motor Overload Protector 1-45A Thermal Cutoff Switch Replace KLIXON 3MP Series for Automotive Sliding Door Motor
Specifications
Brand Name :
HCET
Model Number :
HC01/6AP
Certification :
ROHS
Place of Origin :
China
MOQ :
1000
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
10000000 pcs per month
Delivery Time :
5-7 work days
Packaging Details :
20000 pcs per carton
Product name :
6AP motor thermal protector
Material :
Metal case
Temperature range :
30~180℃
Tolerance :
±8℃,±5℃
Voltage :
30V DC / 250V AC
Current :
Customizable
Application :
Automotive Sliding Door Motor
Description

HC01/6AP Bimetal Motor Overload Protector 1-45A Thermal Cutoff Switch Replace KLIXON 3MP Series for Automotive Sliding Door Motor

The HCET HC01/6AP is a high-performance bimetal motor thermal protector designed to replace Sensata KLIXON 3MP series devices. Combining precise temperature sensitivity (30℃-180℃ adjustable) and current-triggered protection (1-45A range), this compact circuit breaker ensures reliable overload protection for motors in automotive, industrial, and household applications. With ±5℃ tolerance and 4-10s trip time, it effectively prevents motor burnout in wiper systems, HVAC equipment, power tools, and white goods while meeting strict RoHS compliance.

Product feature:

  • Dual-Sensing Protection
    Precisely triggers on both ambient temperature (30-180℃ customizable) and current overload (1-45A range) for comprehensive motor protection.
  • Automotive-Grade Reliability
    Ideal for windshield wiper motors, sunroof actuators, and door lock systems with vibration-resistant construction.
  • Multi-Industry Application
    Certified for HVAC compressors, industrial pumps, power tools (15A/30V DC), and home appliances like washing machines.
  • Custom Configuration Options
    Choose from 8 terminal types (A-H) and wire specifications to match OEM requirements.
  • Enhanced Safety Compliance
    Meets EU RoHS standards with snap-action bimetal mechanism for fail-safe circuit interruption.

Electrical Characteristics:


30℃~180℃
Operating temperature range, Customizable temperature.

 4S~10S
Special action time can be customized
±5°C, ±8℃
Temperature Tolerance		 1A~45A
The overload current tripping range can be customized according to customer's requirements.

45amps/15 volts DC 15amps/30 volts DC

25amps/250 volts AC 30amps/125 volts AC
Electrical characteristics


Dimension size

HC01/6AP Bimetal Motor Overload Protector 1-45A Thermal Cutoff Switch Replace KLIXON 3MP Series for Automotive Sliding Door Motor


HC01/6AP Bimetal Motor Overload Protector 1-45A Thermal Cutoff Switch Replace KLIXON 3MP Series for Automotive Sliding Door Motor

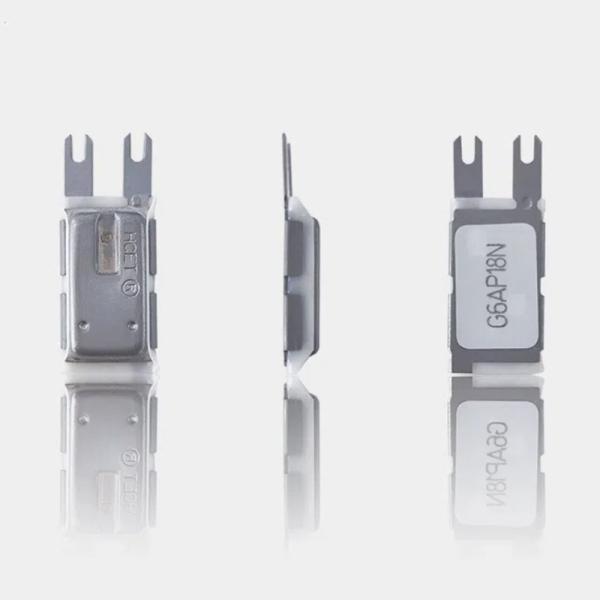

Product detail

HC01/6AP Bimetal Motor Overload Protector 1-45A Thermal Cutoff Switch Replace KLIXON 3MP Series for Automotive Sliding Door Motor

HC01/6AP Bimetal Motor Overload Protector 1-45A Thermal Cutoff Switch Replace KLIXON 3MP Series for Automotive Sliding Door Motor

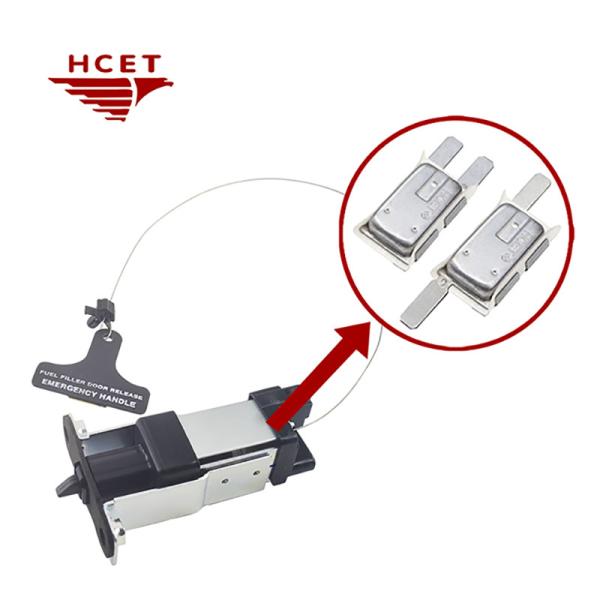

Application

HC01/6AP Bimetal Motor Overload Protector 1-45A Thermal Cutoff Switch Replace KLIXON 3MP Series for Automotive Sliding Door Motor
