Soft Thermal Pad Electrically Insulating Pad With Exceptional Thermal Conductivity For AI Processors AI Servers
Soft Thermal Pad Electrically Insulating Pad With Exceptional Thermal Conductivity For AI Processors AI Servers
Soft Thermal Pad Electrically Insulating Pad With Exceptional Thermal Conductivity For AI Processors AI Servers
Soft Thermal Pad Electrically Insulating Pad With Exceptional Thermal Conductivity For AI Processors AI Servers
Specifications
Brand Name :
ZIITEK
Model Number :
TIF100-20-19S
Certification :
UL
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Products name :
Soft Thermal Pad Electrically Insulating Pad With Exceptional Thermal Conductivity For AI Processors AI Servers
Keywords :
Soft thermal pads
Thickness :
0.25mm~5.0mm
Density(g/cm³) :
2.5
Application :
AI Processors AI Servers
Thermal conductivity :
2.0W/m-K
Color :
Yellow
Construction :
Ceramic filled silicone elastomer
Description

Soft Thermal Pad Electrically Insulating Pad With Exceptional Thermal Conductivity For AI Processors AI Servers

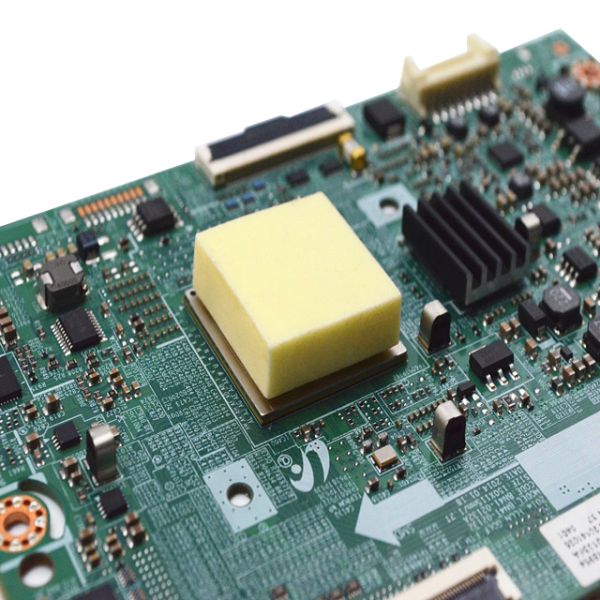

The TIF®100-20-19S Series is a well-balanced, general-purpose thermal pad.It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.


Features:


> Good thermal conductive: 2.0W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance


Applications:

> Al Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations

> CPU
> Display card
> Mainboard/mother board
> Notebook

> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures

Typical Properties of TIF®100-20-19S Series
Property Value Test method
Color Yellow Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.5 ASTM D792
Thickness Range(inch/mm)

0.010~0.020

(0.25~0.5)

0.030~0.200

(0.75~5.00)

 ASTM D374
Hardness 65 Shore 00 45 Shore 00 ASTM 2240
Continuos Use Temp -40 to 200℃ ***
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 5.0 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Thermal conductivity(w/m-K) 2.0 ASTM D5470
2.0 ISO 22007
Fire rating V-0 UL94 (E331100)
Standard Sheets Sizes:
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

TheTIF®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Soft Thermal Pad Electrically Insulating Pad With Exceptional Thermal Conductivity For AI Processors AI Servers
