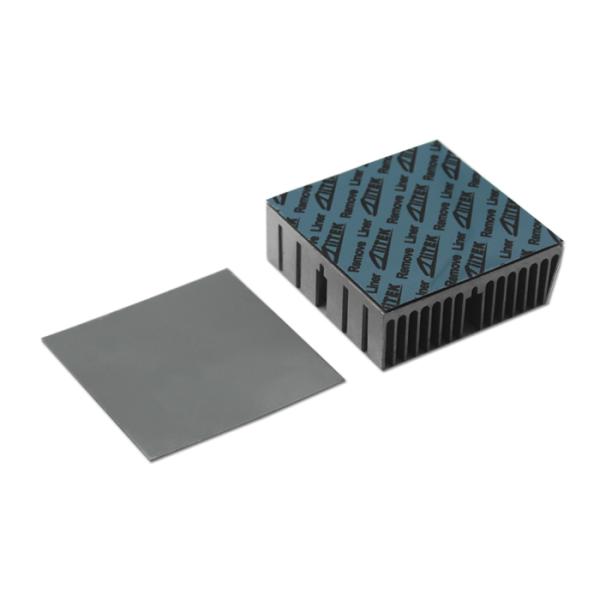

Silicone-Based Gap Pad Filler Soft Thermal GAP PAD Materials For AI Processors AI Servers Smart Home Telecom
Silicone-Based Gap Pad Filler Soft Thermal GAP PAD Materials For AI Processors AI Servers Smart Home Telecom
Silicone-Based Gap Pad Filler Soft Thermal GAP PAD Materials For AI Processors AI Servers Smart Home Telecom
Silicone-Based Gap Pad Filler Soft Thermal GAP PAD Materials For AI Processors AI Servers Smart Home Telecom
Specifications
Brand Name :
ZIITEK
Model Number :
TIF100-50-11US
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
1000pcs/bag
Prodcuts name :
Silicone-Based Gap Pad Filler Soft Thermal GAP PAD Materials For AI Processors AI Servers Smart Home Telecom
Application :
AI Processors, AI Servers, Smart Home, Telecom
Recommended Operating Temperature :
-40 to 200℃
Thermal conductivity :
5.0W/m-K
Hardness :
65/20 Shore 00
Density :
3.2g/cm³
Color :
Dark Grey
Thickness :
0.010"(0.25mm)~0.200"(5.0mm)
Keywords :
Thermal Gap Pad
Description

Silicone-Based Gap Pad Filler Soft Thermal GAP PAD Materials For AI Processors AI Servers Smart Home Telecom

The TIF®100-50-11US Series is a thermal pad specifically designed to tackle the high level cooling challenges and environments sensitive to extreme mechanical stress. It combines higt thermal conductivity with a near-fluid ultimate softness, ensuring perfect filing of the contact interface even under ultra-low mounting pressure, completely eliminating air thermal resistance, and providing superior thermal solutions and physical protection for the most precise and higt heat flux electronic components.

Features


> Good thermal conductive: 5.0W/mK
> Moldability for complex parts
> Easy release construction
> Electrically isolating
> High durability


Applications


Electronic Components – 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Netcom, Panel, Power Electronics, Robotics, Servers, Smart Home, Telecom, etc.

Typical Properties of TIF®100-50-11US Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.2 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.0)
Hardness 65 Shore 00 20 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant @ 1MHz 6.0 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 5.0W/m-K ASTM D5470
5.0W/m-K ISO22007

Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mm×406 mm)


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is availablein custom shapes and various forms.
For other thicknesses or more information, please contact us.

Silicone-Based Gap Pad Filler Soft Thermal GAP PAD Materials For AI Processors AI Servers Smart Home Telecom

Company profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

Thermal gap pad

Thermal graphite sheet/film

Thermal double-sided tape

Thermal insulation pad

Thermal grease

Phase change material

Thermal gel

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.
