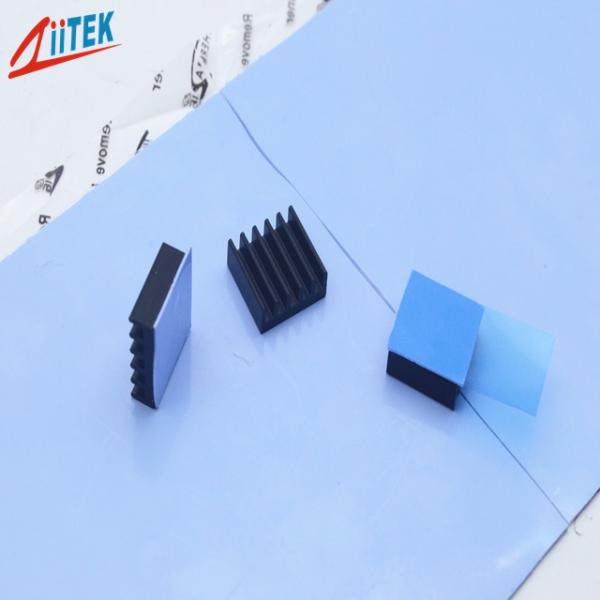

1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad
1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad
1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad
1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad
Specifications
Brand Name :
ZIITEK
Model Number :
TIF100-12-05ES
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
1000pcs/bag
Products name :
1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad
Keywords :
Thermal Pad
Thermal conductivity :
1.2W/m-K
Thickness :
0.020"(0.5mm)~0.200"(5.0mm)
Hardness :
12±5 Shore 00
Color :
Blue
Sample :
Sample free
Specific Gravity :
2.0g/cc
Application :
CPU Graphics Card Heat Dissipation
Description

1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad

The TIF®100-12-05ES is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF®100-12-05ES is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.


Features


> Good thermal conductive: 1.2W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> Easy release construction
> Electrically isolating
> High durability


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

Typical Properties of TIF®100-12-05ES Series
Color Blue Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(5.0mm) ASTM D374
Specific Gravity 2.0 g/cc ASTM D297
Hardness 12±5 Shore 00 ASTM 2240
Operating Temp -40 ~ 160℃ ******
Dielectric Breakdown Voltage ≥5500 VAC ASTM D149
Dielectric Constant @1MHz 4.5 MHz ASTM D150
Volume Resistivity ≥1.0X1012 Ohm-cm ASTM D257
Fire rating 94 V0 UL E331100
Outgassing(TML) 0.40% ASTM E595
Thermal conductivity 1.2W/m-K ASTM D5470

1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
