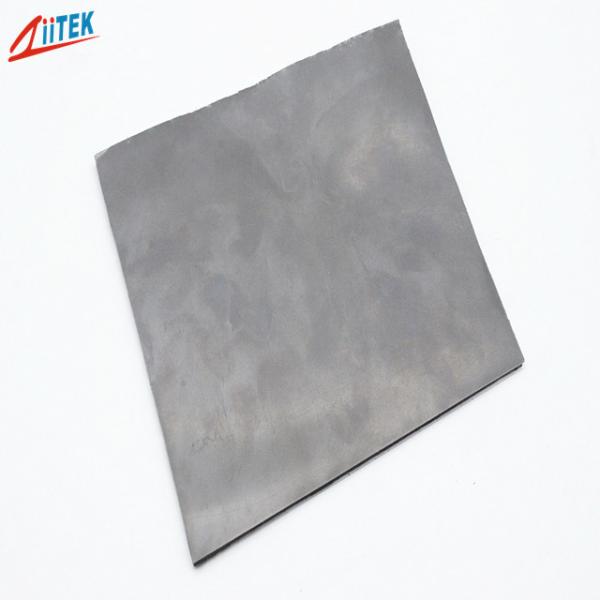

RoHS Silicone Thermal Conductive Pad GPU Thermal Pads Thermal Gap Pad For Heat Sink 5.0W/MK
RoHS Silicone Thermal Conductive Pad GPU Thermal Pads Thermal Gap Pad For Heat Sink 5.0W/MK
RoHS Silicone Thermal Conductive Pad GPU Thermal Pads Thermal Gap Pad For Heat Sink 5.0W/MK
RoHS Silicone Thermal Conductive Pad GPU Thermal Pads Thermal Gap Pad For Heat Sink 5.0W/MK
Specifications
Brand Name :
ZIITEK
Model Number :
TIF800ES
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Product name :
RoHS Silicone Thermal Conductive Pad GPU Thermal Pads Thermal Gap Pad For Heat Sink 5.0W/MK
Thickness :
0.02~0.2inch（0.50~5.0mm）
Application :
Heat dissipation structure for radiators
Breakdown Voltage :
≥5500 VAC
Dielectric Constant :
5.5 MHz
Construction & Compostion :
Ceramic filled silicone elastomer
Keywords :
Thermal Pads
Color :
Gray
Hardness :
12 Shore 00
Description

RoHS Silicone Thermal Conductive Pad GPU Thermal Pads Thermal Gap Pad For Heat Sink 5.0W/MK

The TIF®800ES is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.


Features:


> Good thermal conductive:5.0W/mK

> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications

> High compliance adapts to various pressure application environments
> Available in different thickness options


Applications:


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

> Telecommunication equipment
> Automotive electronics
> Battery packs for electric vehicles
> LED TV and lamps

Typical Properties of TIF®800ES Series
Color Gray Visual
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness 0.020"(0.5mm)~0.200"(5.0MM) ASTM D374
Specific Gravity 3.3g/cc ASTM D792
Hardness 12 Shore 00 ASTM 2240
Operating Temp -40 to 200℃ ******
Dielectric Breakdown Voltage(V/mm) ≥5500 VAC ASTM D149
Dielectric Constant @1MHz 5.5 MHz ASTM D150
Volume Resistivity ≥1.0x1012 Ohm-meter ASTM D257
Flame rating 94 -V0 UL E331100
Thermal conductivity 5.0 W/m-K ASTM D5470

Products specificatrion

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm) with increments of 0.01 inch (0.25 mm).

Product Sizes: 8" x 16"(203mm x406mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided / Double-sided adhesive).
The TIF series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

RoHS Silicone Thermal Conductive Pad GPU Thermal Pads Thermal Gap Pad For Heat Sink 5.0W/MK
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
